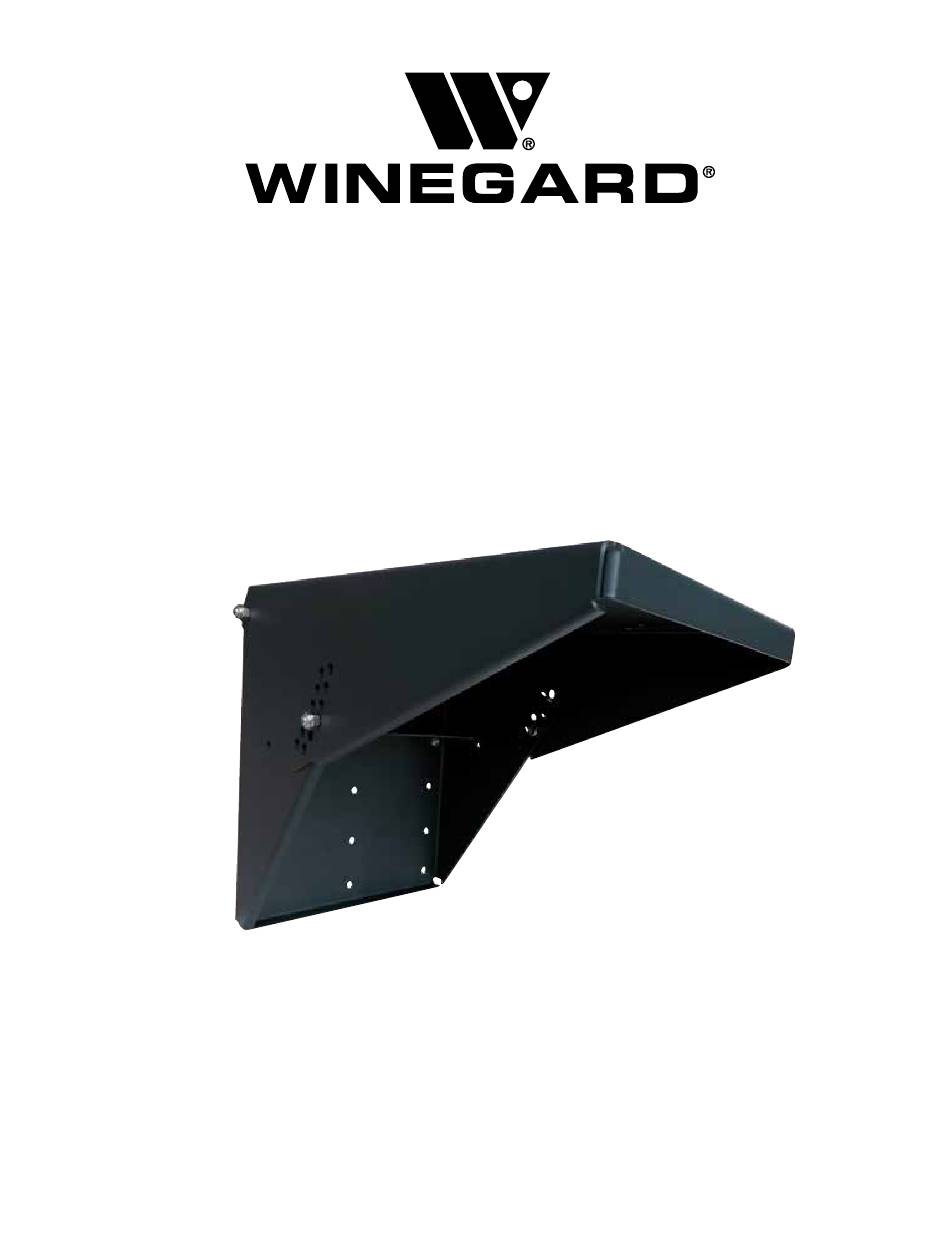

- Page 1 Assembly, Installation, & Operation Manual for Model MT-SM10 Rear Cab Mount Manual disponible en español en www.winegard/support www.winegard.com/trucking For help, email help@winegard.com or call 1-800-788-4417 2452335 Rev1 9-17...
-
Page 2: Specifications
ConnecT WF1xT and Winegard ConnecT 4G1xT antennas. Model MT-SM10 rear cab mount is only intended for installation on a truck, and the instructions within only apply for installation on a truck for use with the Winegard Carryout G2+, Winegard Pathway X1, Winegard DuraSat, Winegard ConnecT WF1xT or Winegard ConnecT 4G1xT antennas. - Page 3 Failure to install or operate the rear cab mount in accordance with product manufacturer’s installation, assembly, and operation instructions could result in property damage, personal injury, and/or death. Model MT-SM10 rear cab mount is only intended for use Winegard Antennas on a truck and should not be installed on any other vehicle.
- Page 4 Setting up the Rear Cab Mount Parts Wall plate Screw (4) Power Switch Wall Plate Terminal Insulator (2) 5/16” Screw (4) Pivot Plate Barrel Crimp Splice 5/16” Nyloc Nut (4) Cable Entry Plate Cable Clamp (4) 1/4″-20 Bolt (4) Mounting Screw (8) 1/4″-20 Lock Washer (4) Shorter Cable Tie (2) Rear Cab...
- Page 5 Pilot holes must be drilled through the four outside/ corner holes of the rear cab mount base. Setting up the Rear Cab Mount with Winegard Satellite Antenna Page 4...
- Page 6 40 in*lbs (minimum)/60 Tighten the four 1/4″-20 screws to 40 in*lbs (minimum)/60 in*lbs (maximum). Do not overtighten beyond the in*lbs (maximum). maximum specification of 60 in*lbs. Page 5 Setting up the Rear Cab Mount with Winegard Satellite Antenna...
- Page 7 In” port of the primary receiver to the MAIN port on the antenna. If connecting the antenna to two receivers, make sure a second coax cable is connected to the SEC port. Setting up the Rear Cab Mount with Winegard Satellite Antenna Page 6...
-
Page 8: Installing The Power Switch
If the antenna has a power socket but you would prefer to power the antenna by connecting the 12V power cable to a 12V power source, the power switch does not need to be installed. To install the power switch, make sure “WINEGARD”, Connect the 12 volt power wire from the truck to a red “OFF”, and “ON”... - Page 9 Keep in mind that the antenna should be level front-to-back and side-to-side for best operation. Then, install the rear cab mount base to the tractor. Setting up the Rear Cab Mount with Winegard ConnecT WiFi Antenna Page 8...
- Page 10 Once the rear cab mount base has been securely installed, Insert a 5/16″ screw through each aligned hole. Thread a it is time to mount the Winegard ConnecT ODU to the 5/16″ nyloc nut onto each screw. Hand-tighten. pivot plate. Start with all of the antennas and the Ethernet cable disconnected from the ODU : a.
-
Page 11: Interior Installation
50 feet). Connect the red (Power) cables fire, explosion, personal injury or death together and the black (Ground) cables together with Setting up the Rear Cab Mount with Winegard ConnecT WiFi Antenna Page 10... -
Page 12: Maintenance
Street, Burlington, Iowa 52601, Telephone 800-288-8094 or visit www.winegard.com). Customer must provide proof of purchase with a dated sales receipt for the Winegard product to verify the product is under warranty. If the date of purchase cannot be verified, the warranty period shall be considered to begin thirty (30) days after the date of manufacture.
