1 : 3W Audio AMP Output Wafer
1
PIN Signal Name
1 SPK L-
2 SPK L+
3 SPK R+
4 SPK R-
2 : PCIE_ISOLATION1
* Connect to PCIE_ISOLATION_1 header
on VGA-PWR card.
Signal
PIN
Name
1 PSON#
3 : Front Panel Audio Header
4 : DACC1
Open : No ACC
Short : ACC
* Auto clear CMOS when system boot
improperly.
5 : Chassis Intrusion Headers (CI1, CI2)
CI1 :
Open : Normal
Short : Active Case Open
CI2 :
Open : Active Case Open
Short : Normal
6 : SIO_AT1
Open : ATX Mode
Short : AT Mode
7 : Clear CMOS Headers
CLRMOS1 :
1-2 : Normal
2-3 : Clear CMOS
CLRMOS2 :
Open : Normal
Short : Auto Clear CMOS (Power Off)

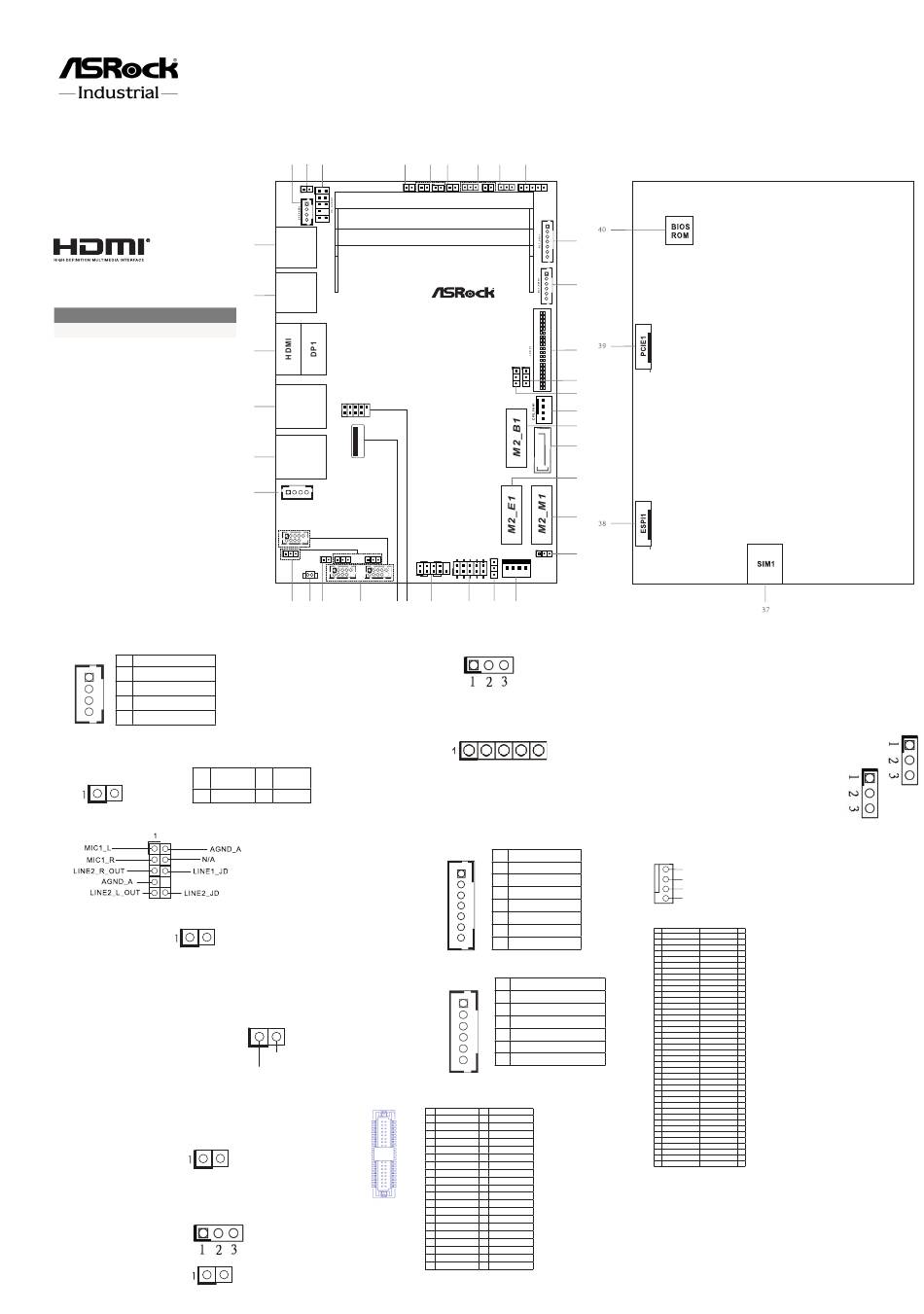

Jumpers and Headers Setting Guide
Top:
1 2 3 4
DACC1
1
1
1
PCIE_ISOLATION1
1
DDR4_A1 (Support DDR4 Only)
DDR4_B1 (Support DDR4 Only)
USB 3.2 Gen2
36
T: USB3_1
B: USB3_TC_1
RoHS
USB 3.2 Gen2
T: USB3_2
35
B: USB3_TC_2
34
USB2_5_6
LAN1
33
1
LAN2
32
USB3_3
DC_IN1
31
1
1
COM1
1
BUZZ2 PWR_COM4 PWR_COM3
PWR_COM1
1 1 1
1 1
BAT1
COM4 COM3
27
30 29 28 26 25
8 : CON_LBKLT_CTL Voltage Level
(BLT_PWM2)
1-2 : 3V Level
2-3 : 5V Level
9 : Panel Power Select (LCD_VCC)
(PNL_PWR1)
1-2 : +3V
2-3 : +5V
Signal
PIN
Name 3-4 : +5V
2 GND
4-5 : +12V
10 : Backlight & Amp Volume Control
(BLT_VOL1)
11 : Inverter Power Control Wafer
(BLT_PWR1)
1
GND
Signal
12 : LVDS Panel Connector
39 40
1 2
5 6 7 8 9
CI2 CI1 SIO_AT1 CLRMOS1 CLRMOS2 BLT_PWM2 PNL_PWR1
1 1 1 1 1 1
1
1
10
1
SBC-370
11
Industrial
12
BKT_PWR1 BLT_PWM1
1 1
13
1 14
15
16
17
SATA3_1 18
19
JGPIO_SET1
20
JGPIO_PWR1
1
PANEL1
JGPIO1 1 SATA_PWR1
PLED PWRBTN
1 1
HDLED RESET
24 23 22 21
1
PIN Signal Name
1 N/A
2 N/A
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
1
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 LVDS_B_CLK# 34 LVDS_B_CLK
31 LVDS_B_DATA3 32 GND
29 DPLVDD_EN 30 LVDS_B_DATA3#
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
25 LVDS_B_DATA1 26 GND
23 GND 24 LVDS_B_DATA1#
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
19 LVDS_A_CLK 20 GND
17 GND 18 LVDS_A_CLK#
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
7 LVDS_A_DATA0 8 GND
5 N/A 6 LVDS_A_DATA0#
3 +3.3V 4 N/A
1 LCD_VCC 2 LCD_VCC
Bottom:
13 : Brightness Control Mode (BLT_PWM1)
1-2 : From eDP PWM to CON_LBKLT_CTL
2-3 : From LVDS PWM to CON_LBKLT_CTL
* Please set to 1-2 when adjusting brightness by
Brightness Control bar under OS.
* Please set to 2-3 when adjusting brightness by
BLT_VOL1.
14 : Backlight Power Select
(LCD_BLT_VCC) (BKT_PWR1)
1-2 : LCD_BLT_VCC : +5V
2-3 : LCD_BLT_VCC : +12V
15 : 4-Pin CPU FAN Connector (+12V)
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
16 : M.2 Key-B Socket (M2_B1)
PIN SIGNAL SIGNAL PIN
2 +3V_M2B CONFIG_3 1
4 +3V_M2B GND 3
6 Full_Card_Power_Off# GND 5
8 W_DISABLE1_B# LP+4 7
10 WWAN_LED# LP-4 9
GND 11
20 N/C
22 N/C N/C 21
24 N/C WAKE_ON_WAN# 23
26 W_DISABLE2_B# DPR 25
28 N/C GND 27
30 UIM1_RESET USB3_RX4_N 29
32 UIM1_CLK USB3_RX4_P 31
34 UIM1_DATA GND 33
36 +UIM1_PWR USB3_TX4_N 35
38 N/A USB3_TX4_P 37
40 N/A GND 39
42 N/A PCH_PE_RXN7 41
44 N/C PCH_PE_RXP7 43
46 N/C GND 45
48 N/C PCH_PE_TXN7 47
50 BUF_PLT_RST# PCH_PE_TXP7 49
52 PCIECLKRQ4# GND 51
54 N/A M2B_CLK4N 53
56 N/A M2B_CLK4P 55
58 N/A GND 57
60 N/C N/C 59
62 N/C N/C 61
64 N/C N/C 63
66 SIM_DETECT_1 N/C 65
68 SUS_CLK BUF_PLT_RST_N 67
70 +3V_M2B CONFIG_1 69
72 +3V_M2B GND 71
74 +3V_M2B GND 73
76 N/C N/C 75
78 N/C N/C 77
N/C 79
17 : SATA3 Connector (SATA3_1)
