COM Port Pin9 PWR Setting Jumpers
1 : PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
26 : PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
1-2 : +5V
2-3 : +12V
2 : 4-Pin Chassis FAN Connector
(+12V) (CHA_FAN1)
3 : ATX 12V Power Connector
4 : 4-Pin Chassis FAN Connector
(+12V) (CHA_FAN3)
5 : 4-Pin CPU FAN Connector
(+12V) (CPU_FAN1)
7 : Power Loss Header (PWR_LOSS1)
Short : Power Loss
Open : No Power Loss
8 : 24-pin ATX Power Input Connector
9 : Thunderbolt AIC Connectors (TB1, TB2)
TB1 TB2
10 : USB 3.2 Gen1 Header
(USB3_5_6)
IntA_PA_SSRX-
IntA_PA_SSRX+
IntA_PA_SSTX-
12 : System Panel Header
IntA_PA_SSTX+
13 : Brightness Control Mode (BLT_PWM1)
1-2 : From eDP PWM to CON_LBKLT_CTL
2-3 : From LVDS PWM to CON_LBKLT_CTL
* Please set to 1-2 when adjusting brightness by Brightness Control bar under OS.
* Please set to 2-3 when adjusting brightness by BLT_VOL1.

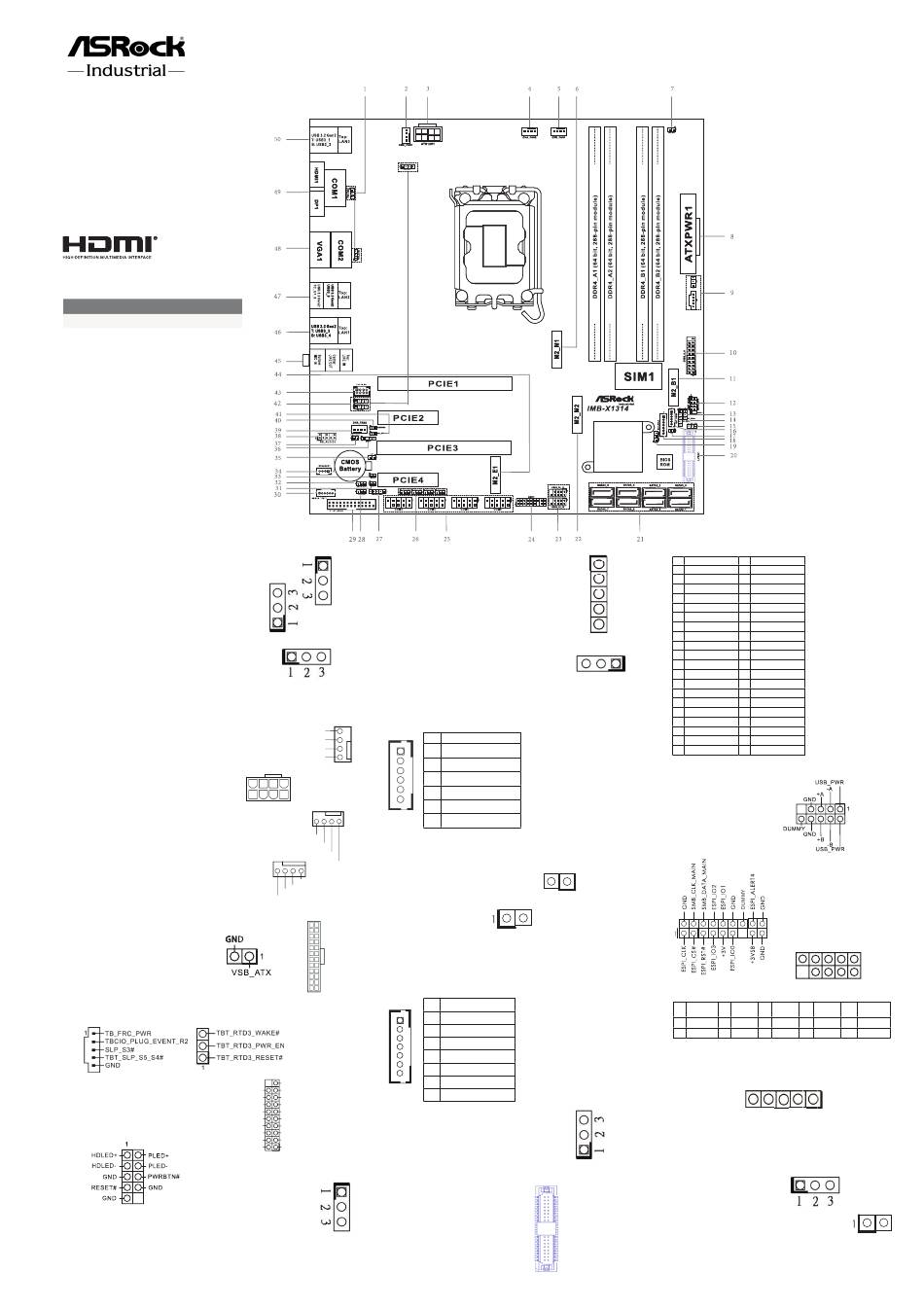

Jumpers and Headers Setting Guide
14 : Panel Power Select (PNL_PWR1)
1-2 : +3V
2-3 : +5V
4-5 : +12V
15 : CON_LBKLT_EN and CON_LBKLT_CTL
Voltage Level (BLT_EN_PWM1)
1-2 : 5V Level
2-3 : 3V Level
16 : Inverter Power Control Wafer (BLT_PWR1)
FAN_SPEED_CONTROL
1
CHA_FAN_SPEED
+12V
GND
8 5
4
1
FAN_SPEED_CONTROL
Chassis Intrusion Headers (CI1, CI2)
CHA_FAN_SPEED
+12V 17 : CI1 :
GND
Short : Active Case Open
GND
+12V Open : Normal
CPU_FAN_SPEED
FAN_SPEED_CONTROL
31 : Cl2 :
Short : Normal
12 24
Open : Active Case Open
18 : Backlight & Amp Volume Control
(BLT_VOL1)
1 13
1
Vbus Vbus
Vbus IntA_PB_SSRX-
IntA_PB_SSRX+
GND
19 : Backlight Power Select
GND IntA_PB_SSTX-
IntA_PB_SSTX+
(LCD_BLT_VCC) (BKT_PWR2)
GND
GND IntA_PB_D-
1-2 : LCD_BLT_VCC : +5V
IntA_PA_D- IntA_PB_D+
IntA_PA_D+ Dummy
1 2-3 : LCD_BLT_VCC : +12V
20 : LVDS Panel Connector
1
3 2 1
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
1
PIN Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
2 1
* PD (Panel Detection):
Connect this pin to LVDS
Panel's Ground pin to
detect Panel detection.
40 39
PIN Signal Name PIN Signal Name
2 R_LVDD 1 R_LVDD
4 LDDC_CLK 3 +3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 PD (Panel Detection) 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN_R 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL_R
40 LCD_BLT_VCC 39 LCD_BLT_VCC
21 : SATA3 Connectors (SATA3_0~7)
23 : USB 2.0 Headers
(USB2_10_11,
USB2_12_13)
24 : ESPI Header
25 : COM Port Headers (COM3,4,5,6) (RS232)
Signal Signal Signal Signal
PIN PIN PIN PIN
Name Name Name Name
9 +5V 7 RRTS# 5 GND 3 TTXD
10 N/A 8 CCTS# 6 DDSR# 4 DDTR#
27 : Digital Input / Output Power Select
(JGPIOPWR) (JGPIO_PWR1)
1-2 : +12V
2-3 : +5V
3-4 : +5V
4-5: GND
Clear CMOS Headers
28 : CLRMOS1 :
1-2 : Normal
2-3 : Clear CMOS
40 : CLRMOS2 :
Short : Auto Clear CMOS (Power Off)
Open : Normal
1
Signal
PIN
Name
1 DDCD#
2 RRXD
1
