Operation and Maintenance

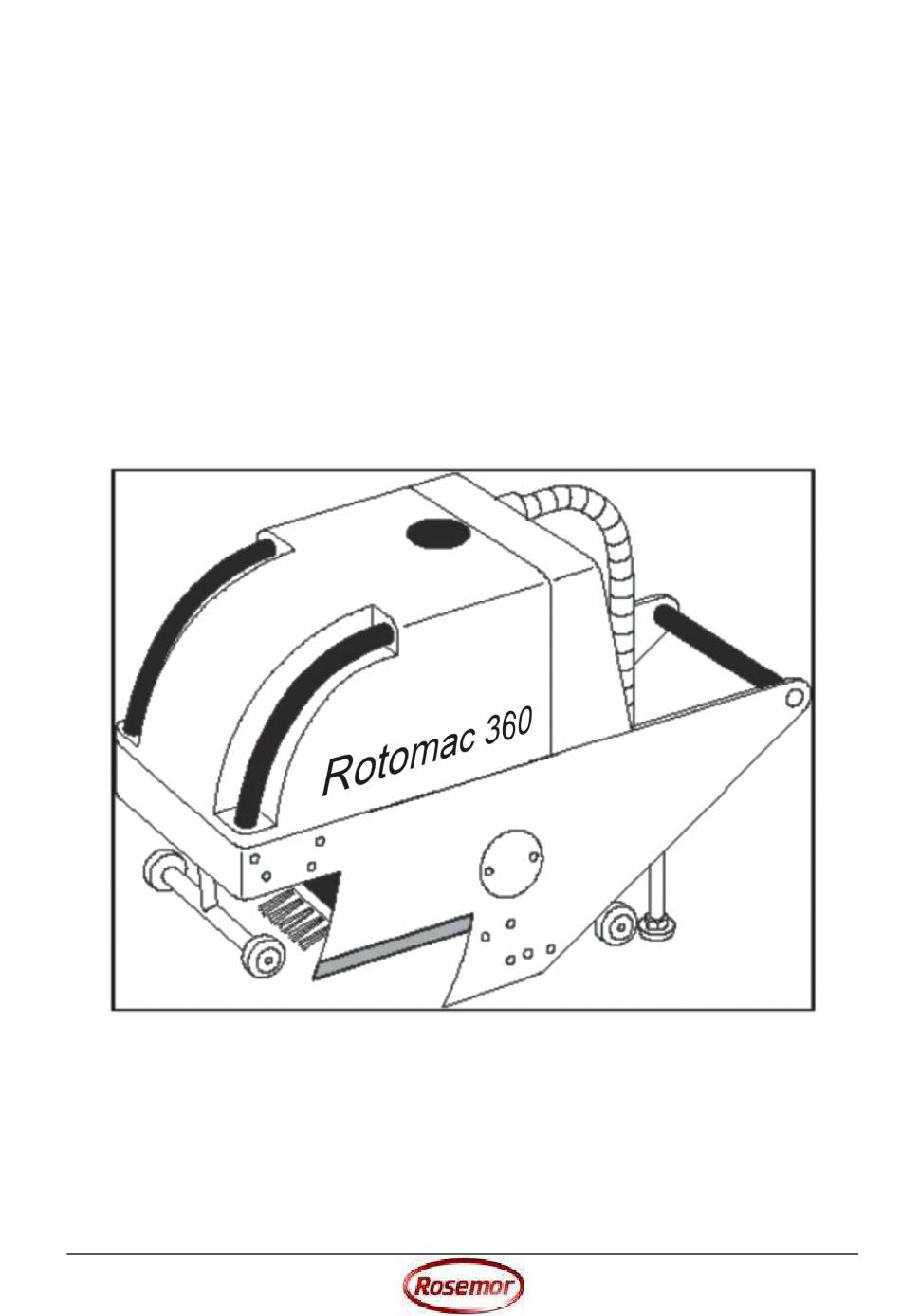

Instruction Manual
Escalator Deep Cleaner
Rotomac 360
ROSEMOR INTERNATIONAL LIMITED ♦ ♦ ♦ ♦ UNIT F, MOSES WINTER WAY♦ ♦ ♦ ♦
OFF HITHERCROFT ROAD ♦ ♦ ♦ ♦ WALLINGFORD ♦ ♦ ♦ ♦
OXFORDSHIRE ♦ ♦ ♦ ♦ OX10 9FE
TELEPHONE (+44)01491 838011 ♦ ♦ ♦ ♦ FAX (+44)01491 832010
info@rosemor.com ♦ ♦ ♦ ♦ www.rosemor.com
Page 1
Advertisement
Table of Contents
Related Manuals for Rosemor Rotomac 360
Summary of Contents for Rosemor Rotomac 360
- Page 1 Instruction Manual Escalator Deep Cleaner Rotomac 360 ROSEMOR INTERNATIONAL LIMITED ♦ ♦ ♦ ♦ UNIT F, MOSES WINTER WAY♦ ♦ ♦ ♦ OFF HITHERCROFT ROAD ♦ ♦ ♦ ♦ WALLINGFORD ♦ ♦ ♦ ♦ OXFORDSHIRE ♦ ♦ ♦ ♦ OX10 9FE TELEPHONE (+44)01491 838011 ♦...
- Page 2 Preliminary remarks Safety and reliability are absolutely essential to guarantee a long and trouble-free service life of the Rotomac 360. In order to fulfil these re- quirements, the operator must obtain sufficient skill in handling the machine, its maintenance and care. It is therefore vital that the operator receives instruction and training from Rosemor International Ltd.
-
Page 3: Table Of Contents
Escalator Deep Cleaning Machine Rotomac 360 Table of contents Table of contents Page 1 Safety instructions ..................... 4 1.1 Preliminary remarks ..........................4 1.2 Owner’s duties ............................. 4 1.3 Intended and specified use ........................4 1.4 Who may operate the machine? ......................4 1.5 Safety for the operator ......................... -
Page 4: Safety Instructions
1.1 Preliminary remarks have been instructed in its operation and who are expressly authorised to carry out such work. The escalator deep machine Rotomac 360 was These persons should be at least 18 years old. manufactured according to state-of-the-art tech-... -
Page 5: Modifications And Changes To The Machine
Escalator Deep Cleaning Machine Rotomac 360 1 Safety instructions 1.6 Modifications and changes to the chine could be impaired. If the power cable is machine damaged, it must be replaced by a service work- shop approved by the manufacturer as special It is forbidden for reasons of safety to carry out tools are required for such work. -
Page 6: Warning Signs And Stickers
Escalator Deep Cleaning Machine Rotomac 360 1 Safety instructions 1.10 Warning signs and stickers 1.13 Sources of danger If the operator on the escalator wishes to leave machine, he must lower the machine, i.e. let the Markings, warning signs and stickers may never be removed! machine rest on the glide strip. -
Page 7: Description
Escalator Deep Cleaning Machine Rotomac 360 2 Description 2 Description 2.1 Technical data Working width: 520 mm Min step height: 185 mm Max step height: 235 mm Basic cleaning per step: 30 s (2x) Maintenance cleaning per step: 45 s (2x) -
Page 8: List Of Reference Numbers
Escalator Deep Cleaning Machine Rotomac 360 2 Description 2.2 List of reference numbers 26 Guide rail Cover of dirty-water tank 27 Opening for replacing brush Dirty-water tank 28 Glide rail Service hours counter 29 Coupling for fresh-water tube Control panel... -
Page 9: Location Of Components
Escalator Deep Cleaning Machine Rotomac 360 2 Description 2.3 Location of components Fig. 1: Location of components Fig. 2: Control panel Page 9... -
Page 10: Operation
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3 Operation In order to prevent the brushes being moved by accidental contact with the 3.1 Before start-up pushbutton, the button will only react All local safety regulations and instructions must to activation after a delay of one sec- be observed for each start-up. -
Page 11: Filling Fresh Water
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.3 Filling fresh water (see Fig. 5 on page 11) • Unlock coupling (29) and separate from fresh-water tank (30). • Draw fresh-water tank forward on shaft (13) and withdraw from machine. -
Page 12: Safety Measures On Site
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.5 Safety measures on site All unauthorised persons must be prevented Scratching or erosion on the escalator steps from approaching the entrances at both ends of caused by wear, corrosion or material faults can the escalator by means of safety measures (e.g. -
Page 13: Setting Step Height
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.9 Setting step height It will be possible to start the cleaning process only when the running gear The machine is in danger of falling if has been driven to the point where the... -
Page 14: Select Cleaning Programme
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.10.1 Programme 1: Quick Cleaning Cycle 3.10 Select cleaning programme Duration of a cleaning cycle 25 seconds. (see Fig. 9: Control panel) 3.10.2 Programme 2: Maintenance Cleaning Duration of cleaning cycle 45 seconds. -
Page 15: Cleaning The Escalator
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.11 Cleaning the escalator The pre-selected programme can now be In order to achieve an ideal moisture content on started. When the cleaning cycle has been com- the brushes, the first step should be cleaned pleted, the machine is raised (Fig. -
Page 16: Subsequent Cleaning
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.13 Refilling with fresh water After the cable has been connected once more, The operator must carry out regular checks at the procedure described above can be started the transparent feeder tube for fresh water (29) -
Page 17: Ending The Cleaning Process
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.15 Ending the cleaning process • Move machine as described in Chapter 3.11 with the escalator to the lowest completely extended step. • The machine is then raised over the lifting spindle drive (18). -
Page 18: Use Of Transport Trolley
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.16 Use of transport trolley Before the travelling mechanism is driven from the stairs, the rollers on the transport trolley must always be secured with the brakes! After the fixing axle (46) has been inserted and... -
Page 19: Use Of Transport Trolley For Maintenance
Escalator Deep Cleaning Machine Rotomac 360 3 Operation 3.16.2 Use of transport trolley for mainte- nance The fixing axle (46) must be secured against slipping out by means of the In preparation for maintenance, the machine is supplied permanent cotter pin! -
Page 20: Maintenance / Care
Escalator Deep Cleaning Machine Rotomac 360 4 Maintenance / 4 Maintenance / Care 4.1 Safety measures during cleaning and maintenance of the machine • Before any maintenance or cleaning work is carried out, the machine must be separated from the mains with the main switch being set to "0“... -
Page 21: Maintenance After 100 Service Hours
Escalator Deep Cleaning Machine Rotomac 360 4 Maintenance / 4.6.1 Tightening the chain (see Fig. 24: Chain drive / spray nozzles) The chains must be tightened so that the centre of each chain can be raised by hand between the chain wheels by approx. 3 mm ("A") or pressed together by 4 - 5 mm ("B"). -
Page 22: Cleaning And Replacing Fresh-Water Nozzles
Escalator Deep Cleaning Machine Rotomac 360 4 Maintenance / • 4.6.2 Cleaning and replacing fresh-water Clean spray nozzle, using only instruments nozzles without sharp edges. • (see Fig. 24: Chain drive / spray nozzles on page Re-assemble fresh-water nozzle as shown in illustration, while making sure: •... -
Page 23: Notice
Escalator Deep Cleaning Machine Rotomac 360 5 Notice / 5 Notice Page 23...
