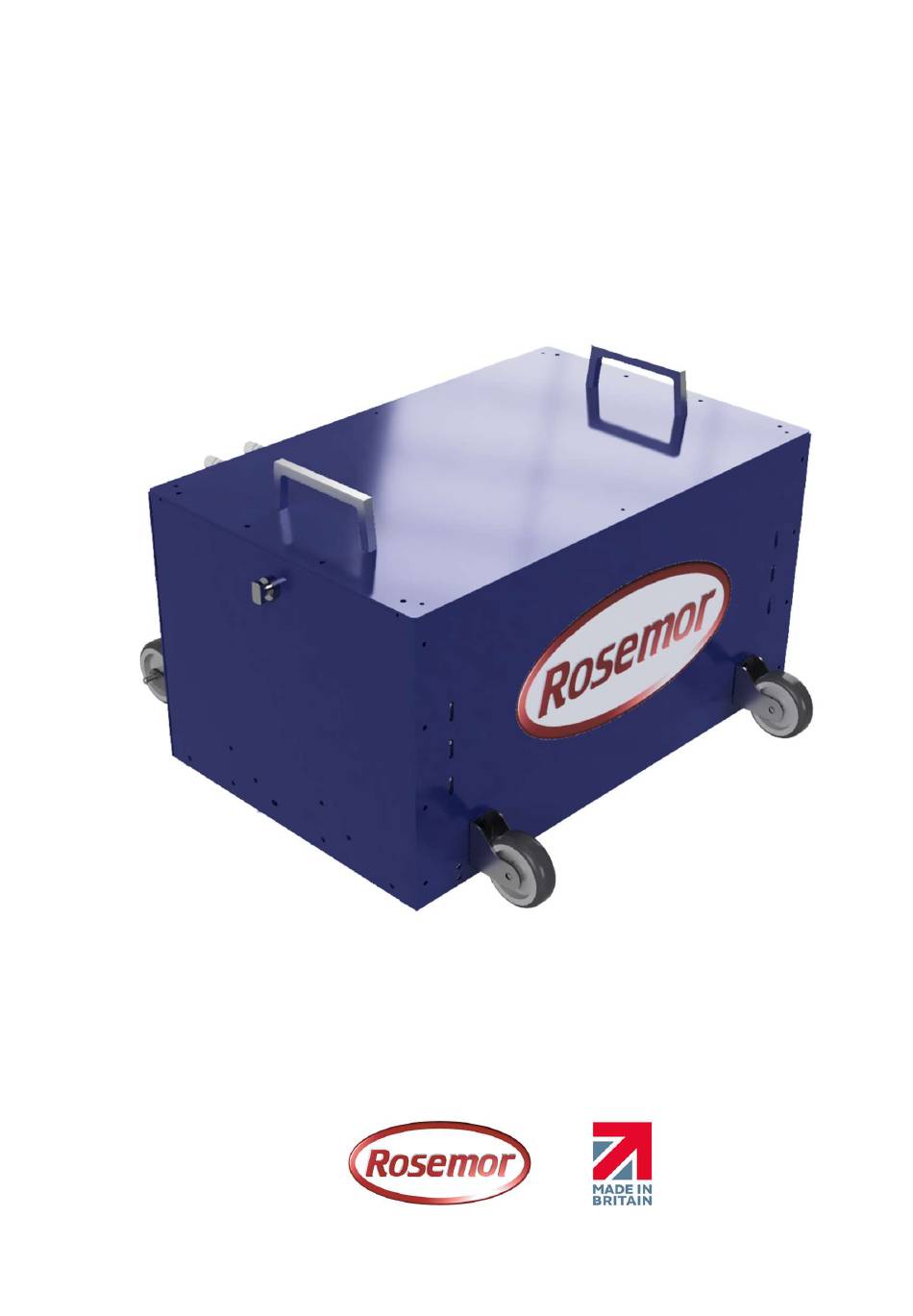

- Page 1 Operation and Maintenance Manual T20 Attachment Travelator & Escalator Deep Cleaning Addon Rosemor International Ltd 1 Bullingdon Ave Wallingford Oxon OX10 7PL Designed & Assembled in Oxfordshire, UK. TEL: (+44)01491 838 011 WEB: www.rosemor.com Email: info@rosemor.com...
- Page 2 Rotomatic or ET15B Escalator Deep Cleaning Machine. For a standalone travelator cleaning machine, please see the T20i from Rosemor International. The T20 is used while the escalator or travelator is moving towards you, which makes it a very quick method to perform a cleaning operation.
- Page 3 Reading this manual does not qualify any person for safe use of the Rotomatic. Rosemor International Ltd or one of its customer service centres should be informed immediately if any technical fault in this cleaning machine is suspected or has occurred.
-
Page 4: Table Of Contents
3.2.1 Preparing the Rotomatic……………………………………10 3.3 Attach T20……………………………………………………………..11 3.4 Lynch Pin……………………….……………………………………………12 3.5 Connections………………..………………………………………13 3.6 Cleaning Operation…………………………..…………………….14 3.7 Moving the T20 ………………………………..…………………..14 3.8 Ending the Cleaning Operation……..……………………15 3.9 Aftercare of the T20…………………………..…………….15 4 Troubleshooting…..……………………………………………………..16 4.1 Maintenance ………………………………………………………………16 Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... -
Page 5: Safety Precautions
When work is carried out on machine or • The automatic escalator deep cleaning machine parts when live, only tools specially Rotomatic and T20 are not intended, nor suitable intended for this purpose may be used. for cleaning hazardous dirt or substances. -
Page 6: Modifications & Changes To The Machine
Rosemor International Ltd as specialist tools Original parts and accessories have been are required to properly carry out such work. specially designed for this machine. Parts and fittings made by other manufacturers have not 1.9 Information on the warning signs... -
Page 7: Warning Signs & Stickers
If the machine is not used for the intended purpose, such use will be at the sole risk and responsibility of the user. Rosemor International Ltd will not accept any liability in such cases. -
Page 8: Technical Data
2. Description 2.1 Location of Components Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... -
Page 9: List Of Components
4. Quick Release Pull Pin 5. Front Transport Wheel 6. Detergent Pipe Inlet (Connects to Small Q/R fitting on rear of Rotomatic/ET15B) 7. Motor Drive Connector (Connects to T10/T20 Socket on rear of Rotomatic/ET15B) 8. Rear Transport Wheel 9. Guide Wheel Height Adjuster 10. -
Page 10: Operation
Note: Check that the Rotomatic has sufficient detergent in the detergent tank. Check the operation of the vacuum system and empty the waste tank before proceeding with the cleaning. It is advised to test the operation of the T20 connected to your Rotomatic/ET15B before moving into position to clean. -
Page 11: Attach T20
Note: If cleaning an escalator, always clean from the bottom of the escalator and never the top. - Next, attach the ‘U-Bar’ to the T20, as shown here. Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... -
Page 12: Lynch Pin
Next, wheel the Rotomatic into position. Now attach the U-Bar to the corresponding brackets on the Rotomatic Transportation Trolley. Note: For ET15B, separate brackets are available to attach to your older trolley. Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... -
Page 13: Connections
3.5 Next, connect the vacuum hose, detergent pipe and power cable from the T20 to the Rotomatic. • Connect the red T20 plug to the red T10/T20 outlet on the rear of your Rotomatic/ET15B. • Connect the Vacuum Hose to the T20 and the... -
Page 14: Cleaning Operation
T20. To do this: Allow the T20 at least 2 or 3 complete passes in - Stop the Escalator/Travelator the same position before moving the T20 over to clean the next strip of escalator or travelator - Remove the 2x 12mm pins from the trolley of treads. -
Page 15: Ending The Cleaning Operation
- Press the ‘Stop’ Button on the Rotomatic/ET15B - Disconnect the Rotomatic/ET15B from the T20 by following the steps in reverse on pg. 13. - Carefully roll or lift the T20 from the escalator/travelator. The T20 will likely drip dirty water from the underside after the cleaning process is complete. -
Page 16: Troubleshooting
T20 and not towards the centre vacuum channel. A: The phases have become reversed. Open the red plug of the T20 and swap positions of the black and brown wires (L1 & L2) If after following the steps in this...
