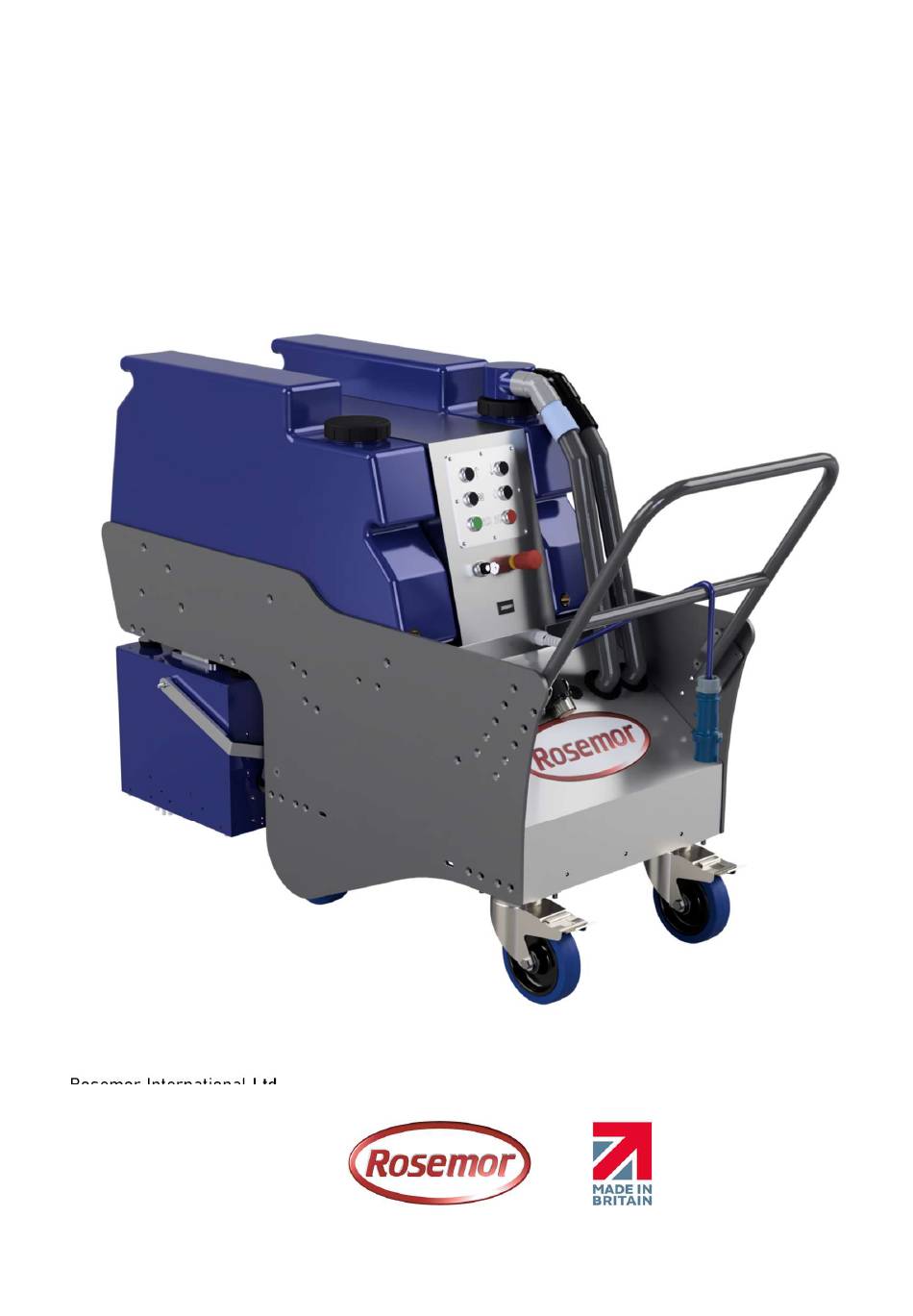

- Page 1 Operation and Maintenance Manual T20i Travelator & Escalator Deep Cleaning Machine Rosemor International Ltd 1 Bullingdon Ave Wallingford Oxon OX10 7PL Designed & Assembled in Oxfordshire, UK. TEL: (+44)01491 838 011 WEB: www.rosemor.com Email: info@rosemor.com...
- Page 2 Unlike the Rotomatic, the T20i will only clean the flat, horizontal portion of an escalator and travelator tread. The T20i is used while the escalator or travelator is moving (towards you), which makes it a very quick method of performing a cleaning operation.
- Page 3 Preliminary remarks Safety and reliability are essential to guarantee a long and trouble-free service life of the T20i. In order to fulfil these requirements, the operator must obtain sufficient skills in both handling and operating the machine and of its maintenance and care.
-
Page 4: Table Of Contents
3.2.2 Filling the Tank………………….……………………………………11 3.3.1 Replacing Tank…………………………………………………..11 3.4 Preparations On Site.……………………………………………12 3.5 Safety Measures…..…..………………………………………12 3.6 Positioning…………………………………………..…………………….12 3.9 Cleaning Operation..……………………..…………………..13 3.9.2 Ending the Cleaning Operation..……………………13 3.9.3 Aftercare of the T20……………………..…………….14 4 Troubleshooting…..……………………………………………………..15 Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... -
Page 5: Safety Precautions
When work is carried out on machine or • The automatic escalator deep cleaning machine parts when live, only tools specially T20i are not intended, nor suitable for cleaning intended for this purpose may be used. hazardous dirt or substances. -
Page 6: Modifications & Changes To The Machine
Rosemor International Ltd as specialist tools Original parts and accessories have been are required to properly carry out such work. specially designed for this machine. Parts and fittings made by other manufacturers have not 1.9 Information on the warning signs... -
Page 7: Warning Signs & Stickers
If the machine is not used for the intended purpose, such use will be at the sole risk and responsibility of the user. Rosemor International Ltd will not accept any liability in such cases. -
Page 8: Technical Data
2. Description 2.1 Location of Components Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... - Page 9 2. Description 2.2 Location of Components View of underside of T20i cleaning head Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©...
-
Page 10: List Of Components
15. Detergent Pump On/Off Button 16. AutoStop Button 17. Guide Wheel Height Adjuster 18. Guide Wheel 19. Detergent Spray Area 20. Roller Brush 21. Vacuum Channel 22. Rear Transport Wheel (With Brake) Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... -
Page 11: Operation
• Confirm detergent flows freely by briefly pressing ‘Detergent’ button on the button panel until detergent can be seen coming from underneath the T20i Cleaning Head. Be sure to mop/soak up any detergent left on the floor to prevent the chance of someone slipping. -
Page 12: Preparations On Site
The safety manager should also be informed if Roll the T20i partially onto the flat steps at the necessary. bottom until the front cleaning head is completely above the treads. -
Page 13: Cleaning Operation
Line up the T20i in the next position over, allowing a 1–2 inch (25-50mm) overlap of the 3.9.1 AutoStart Function Explained: previous area cleaned. The T20i features the latest in industrial control Roll the T20i into position on the treads as circuitry. -
Page 14: Aftercare Of The T20
- This is used to turn off the detergent. This could be useful if the area being cleaned is already saturated and you want to remove as much moisture as possible using the vacuum and brushes only. Written and illustrated by Ben Sprules 31/3/2022 Rosemor International Ltd 2022 ©... -
Page 15: Troubleshooting
T20 and not towards the centre vacuum channel. A: The phases have become reversed. Open the control console of the T20I and swap positions of the black and brown wires (L1 & L2) at Q: Cleaning Head overdrives when lifting or contactor.
