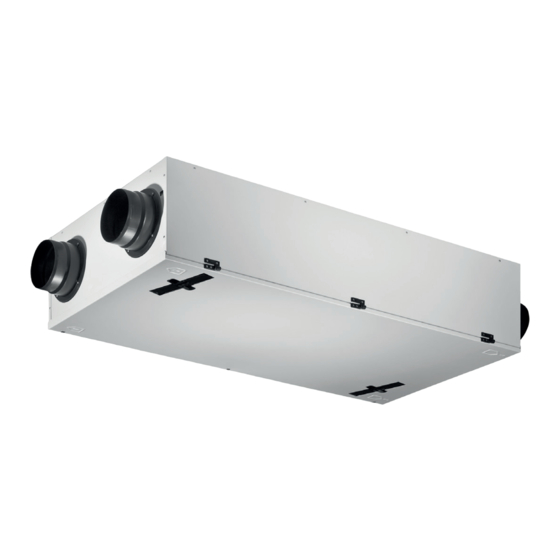

Envirovent SLIMLINE 300 Installation Manual For Engineer / Installer
  1. Manuals
  2. Brands
  3. Envirovent Manuals
  4. Fan
  5. SLIMLINE 300
  6. Installation manual for engineer / installer

Envirovent SLIMLINE 300 Installation Manual For Engineer / Installer

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SLIMLINE 300
INSTALLATION GUIDE FOR ENGINEER / INSTALLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIMLINE 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Envirovent SLIMLINE 300

Summary of Contents for Envirovent SLIMLINE 300

  • Page 1 SLIMLINE 300 INSTALLATION GUIDE FOR ENGINEER / INSTALLER...
  • Page 2 • The safety regulations for low-voltage remain the supplied flexible cable. If the installations. power cable becomes damaged, it must be replaced by EnviroVent, an authorised • The regulations for connection to interior service agent for your region/ country, or a sewers...

  • Page 3: Technical Specifications

    Technical Specifications Before you begin to install the heat recovery unit, check that it has been supplied complete and undamaged. The Slimline 300 unit should include the following components: 1. Heat recovery appliance 2. Wall mounting bracket kit; - 2x suspension strips 3.
  • Page 4 The Slimline 300 comes ready to wire into • Low sound level the 230V mains fused spur. • Comes as standard with automatic bypass...
  • Page 5 Technical Specifications Supply voltage (V/Hz) 230/50 Protection degree IP30 Dimensions 1185 x 644 x 310 Duct diameter (mm) Ø150 / Ø160 (w x d x h) (mm) External discharge Weight (kg) Filter class Fan factory setting (control unit) 4-Way switch Ventilation capacity Permissible resistance ducts...
  • Page 6 Note: In practice, the value may deviate 1 dB(A) as a result of measuring tolerances. Note: The value stated in the circle is the capacity per fan (in Watt) SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 7 Technical Specifications 1. To dwelling 2. To atmosphere 3. From dwelling 4. From atmosphere 5. Electric connections 6. Condensate discharge connection” AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
  • Page 8 16. Service connector 17. Connection 230V pre-heater 18. Modular connector multiple switch 19. Connector eBus 20. Mains cable 230V 21. Fall protection front panel SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 9 The user information menu shows when the as far as possible. Slimline 300 frost control system is activated The bypass valve opens and closes (see page 19). automatically when a number of conditions are satisfied (refer to the table below for bypass conditions).
  • Page 10 B. Hole for gland to be mounted by installer (for sleeve cable postheater/ extra preheater). The Slimline 300 is also available as a Plus If a postheater or extra preheater is version. This version is equipped with a connected to connector X14 (accessible...
  • Page 11 2x G4 surface mounted G4= Coarse 60% 0-10V proportional f7= ePM1 50% (PLUS version only) Slimline 300 Plus Filter kit RH sensor G4= Coarse 60% f7= ePM1 50% Please contact EnviroVent for order codes Transmitter wireless remote control 2 positions...

  • Page 12: Installation Instructions

    Installation Instructions The Slimline 300 can be mounted directly • The installation room must be frost-free. to the wall or ceiling using the mounting • When mounting flexible ducts, bear in brackets supplied for that purpose. mind that it must be possible to replace them in due course.
  • Page 13 Installation Instructions Placing the appliance for ceiling mounted   Condensate discharge Appliance disconnecting from mounting bracket AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
  • Page 14 Installation Instructions Placing the appliance for wall mounted     Appliance disconnecting from mounting bracket Condensate discharge SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 15 Installation Instructions The Slimline 300 must always be fitted with If run horizontal, it must have a 5 degree fall. a condensate discharge. The condensate 32mm pipe can be used instead of using must be discharged through a waste 21.5mm pipe for connecting to the internal pipe.
  • Page 16 (see page 33). Cables to be connected by installer (wire diameter at least 0.34 mm SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...

  • Page 17: Control Display

    Control Display Switching the appliance ON/OFF Warning When working on the appliance, always remove the voltage from the appliance by isolating the power. AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
  • Page 18 The control unit display shows what the operating mode of the appliance is. Settings in the control unit software of the Slimline 300 can be called up and changed with the aid of the operating keys. Ex factory the control module is set for the English language.
  • Page 19 Control Display The supply and extract The supply and extract The supply and extract The supply and extract fans are running at fans are running in fans are running in fans are running in 50 m /h or they are ventilation mode 1 ventilation mode 2 ventilation mode 3...
  • Page 20 ( ); if the return key ( ) is not pressed, the display will return to the main screen some 5 minutes after the last time a key is operated. SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 21 Control Display Device information menu From the main menu, turn the right-hand setting knob to select the ”Device information” menu and confirm the selection by pressing the right- hand setting knob. If several appliances are connected, a selection from the appliances can be made in this menu;...
  • Page 22 Deactivate the key lock once-only by holding down the right-hand setting knob for 3 seconds! Permanently deactivate it by changing the setting in the key lock menu. SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 23 Control Display Installer menu From the main menu, turn the right-hand setting knob to select the “Installer” menu and confirm the selection by pressing the right-hand setting knob. several appliances connected, a selection from the appliances can be made in this menu;...

  • Page 24: Troubleshooting

    (limitedly). The display does show the fault symbol (spanner). This fault can be read out in the menu “Messages”. SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 25 Trouble Shooting Locking fault Warning When the appliance detects a locking fault, it When working on the appliance, always remove the voltage from the will no longer work. The (permanently lighted) appliance by isolating the power. display shows the fault symbol (spanner) together with fault code.
  • Page 26 Note: If mode 2 of a multiple switch does not work, the modular connector of the multiple switch has been connected the wrong way round. Cut off one of the RJ connectors to the multiple switch and mount a new connector the other way round. SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...

  • Page 27: Maintenance

    Maintenance User maintenance User maintenance is limited to periodically cleaning or replacing the filters. The filter only has to be replaced when that is indicated on the display (it shows the text “FILTER”) or, if a multiple switch with filter indication is mounted, when the red LED at the switch lights up.
  • Page 28 Maintenance SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...

  • Page 29: Installer Maintenance

    Maintenance Installer maintenance Isolate power Swing open the front panel (can also be taken from the hinges, if required). Installer maintenance includes cleaning the heat exchanger and fans. Dependent on the conditions, this must done about once every three years. AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
  • Page 30 For ceiling mounting, carefully remove the condensate bin; there may still be some condensate left in the condensate bin Rinse the exchanger with warm water and a regular detergent. SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 31 Maintenance AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
  • Page 32 Maintenance Isolate power Filter reset; Press the Return key ( ) to leave any selected menu and the appliance will return to operating mode. SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...

  • Page 33: Electric Connections

    Electric Connections Wiring diagram Slimline Slimline Only for Plus version Slimline Slimline 300 Plus 300 Plus Green/ Brown Blue White nr.1 nr.2 Green Yellow yellow Outdoor Indoor Service Motor Sensor External Multiple Pre- Control Supply Extract Control Post- Output 0-10 V temp.

  • Page 34: Electric Connections Accessories

    3 for longer than 2 Additional cable feed option seconds or by switching it to absence mode ( ). SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 35 Electric Connections Accessories Coupling several Slimline appliances  The slave appliances must be set as slaves before the appliances are interconnected through eBus! Refer to the supplied service tool manual for further instructions. There must be a separate 230V fused spur/isolator for every appliance. Important: Because of polarity sensitivity, always connect contacts X1-1 to X1-1 and...
  • Page 36 Electric Connections Accessories Connection RH (humidity)-sensor Setting parameter 29 & 30 (see page 41) Cable sleeve Postheater connection Setting parameter (see page 40) SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 37 Electric Connections Accessories Connection postheater or extra preheater The postheater or extra preheater (only possible for Slimline 300 Plus) are electrically connected to connector X14; just for a postheater there is also a temperature sensor that must be connected to no.7 and 8 of the 9-pole connector that is only installed in the Plus version.
  • Page 38 2 can optionally be used as 0-10 volt input as well Setting parameter 20, 21 & 22 (page 41) The Slimline 300 Plus can be equipped with an external provision with 0-10 volt control. Connections X15-3 and X15-4 are set as standard as 0 - 10 V input; it is activated as standard.
  • Page 39 * When replacing a mains cable, always Motor bypass valve order a replacement mains cable from Bypass valve EnviroVent to avoid danger. A damaged Control board (Plus version) When replacing, mains should only be replaced by a note the correct dip switch settings qualified person.

  • Page 40: Setting Values

    (= preheater connected) Preheater connected OFF (= no preheater) FACTORY SETTING STEP NO. DESCRIPTION ADJUSTING RANGE STEP Slimline 300 Plus 0 (= no additional heater) Heater 1 (= additional preheater) 2 (= postheater) Temperature postheater 21,0 °C 15,0 °C t/m 30,0 °C 0,5 °C...
  • Page 41 Setting Values FACTORY SETTING STEP NO. DESCRIPTION ADJUSTING RANGE STEP Slimline 300 Plus 0 (= Extract fan off) 1 (= Absolute min. flow rate 30 m 2 (= Flow rate mode 1) Extract fan mode 3 (= Flow rate mode 2)
  • Page 42 1200 Min.PPM eBUS CO -sensor 4 Max.PPM eBUS CO -sensor 4 1200 Flow correction 100% 90% - 110% Default position switch 0 - 1 SHOULD YOU ENCOUNTER ANY PROBLEMS 01423 810 810 INSTALLING THIS UNIT, CALL US ON: Slimline 300...
  • Page 43 Product data sheet conform Ecodesign (EU), nr. 1254/2014 (Annex IV) Supplier: EnviroVent Model: Slimline 300 The annual electricity The annual heating SEC-Value Climate zone Type of control Energy class (SEC) consumption (AEC) saved (AHS) in kWh/m²/a in kWh in kWh...

  • Page 44: Warranty

    ENVIROVENT SUPPLY & INSTALLATION If your product has been supplied and installed The warranty is in addition to your statutory or by EnviroVent Ltd it is covered with a two-year legal rights. parts and labour warranty. If you detect a...
  • Page 45 AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
  • Page 46 Your feedback is important to us as we strive to improve our and improvement EnviroVent reserves the products, services, and overall customer experience. Please email right to alter products specification and us to help us serve you better: feedback@envirovent.com appearance without notice.
