Mpio DME User Manual

Mpio dme: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

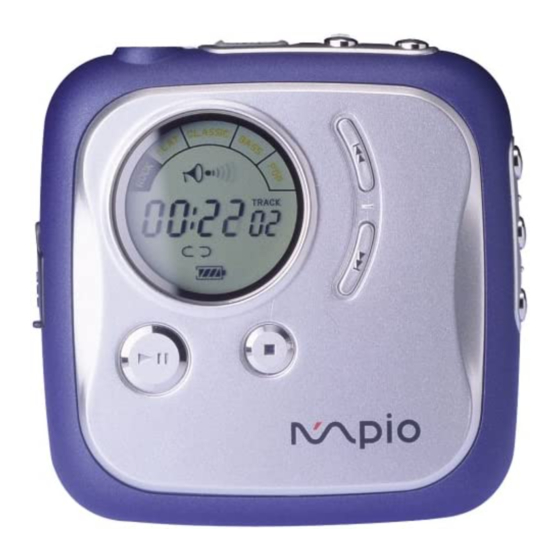

Digital Sound MP3 Player
What is MP3?
Up to 30 Hrs Play
MP3 stands for MPEG 1/2 layer 3.
with Remote
Control and USB
MP3 files can be compressed up to 1/20 size of
Connection!
the original wave files.
Digital Sound
What is the MPIO?
The MPIO maintains high
The MPIO stands for Multi-Play Internet AudiO,
quality sound at all time.
is a new generation digital audio player.
You can purchase MP3 files on the internet
and download them directly to your MPIO for
CD quality sound without the need of casette
tapes or CDs.
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DME and is the answer not in the manual?

Questions and answers

Related Manuals for Mpio DME

Summary of Contents for Mpio DME

  • Page 1 The MPIO stands for Multi-Play Internet AudiO, quality sound at all time. is a new generation digital audio player. You can purchase MP3 files on the internet and download them directly to your MPIO for CD quality sound without the need of casette tapes or CDs.

  • Page 2: Table Of Contents

    Adjusting Vol(Volume) / Hold mode REP(Repeat) mode EQ(Equalizer) mode A B(Repeat Segmentation) mode Installing Software on PC Installing The MPIO-DME Manager Connecting the MPIO to PC Formatting Internal Memory Downloading Files to the MPIO Erasing Files on PC Arranging the Playback Order...

  • Page 3: Player Features And Controls

    PLAYER FEATURES AND CONTROLS Front Panel Hold Switch Earphone Jack USB Connector Power on/Play/Pause Volume Control Rewind/ Fast Rewind Forward/ Fast Forward Repeat (Intro/Normal/Repeat1/Repeat All/Shuffle) EQ(Equalizer) (Rock/Flat/Classic/Bass/Pop) A B (Seek) Stop/Power off...

  • Page 4: Rear Panel

    Rear Panel Hole for Wrist String Eject Button (SmartMedia Card) SMC Slot Battery Case Optional Remote Control Power on/Play/Pause Volume Control [+/-] EQ(Equalizer) (Rock/Flat/Classic/Bass/Pop) Earphone Jack Rewind Forward Stop/Power off Hold...

  • Page 5: Accessories

    ACCESSORIES User's Guide Installation CD USB Cable Earphone Remote Control Wrist String 1.5V AA type Battery (1EA)

  • Page 6: Inserting The Battery

    1. Slide the battery cover in the 2. Insert "AA" type battery with the 3. Close the cover and slide it as direction of the arrow. correct polarity. indicated until the battery cover latches. • You need one 1.5V AA type battery for your MPIO.

  • Page 7: Display(Lcd) Panel

    DISPLAY(LCD) PANEL Playback Icon Playing Time of music files SMC(SmartMedia Card) Icon Battery Icon Battery The indicator shows the amount of battery remaining as belows: EQ(Equalizer Mode) Icon: By selecting Equalizer menu, you can choose one mode from 5 different Equalizer modes (Rock/Flat/Classic/Bass/Pop) as you like.

  • Page 8: Listening To The Sample Music

    LISTENING TO THE SAMPLE MUSIC Your MPIO comes with pre-installed MP3 files for your immediate use. 1. Turn the MPIO on by (REWIND button) Press the button shortly to select the pressing and holding previous files. (play button) for about Press and hold the button to rewind fast.

  • Page 9: Adjusting Vol(Volume) / Hold Mode

    ADJUSTING VOL(VOLUME LEVEL)/ HOLD MODE 1. Turn the MPIO on and 2. Adjusting the volume select the file what you Adjust the volume by desire. pressing the volume control ( desired level. • The level of volume is 00-40. For the prevention of malfunction of player, locate the ) to your Hold switch to the Hold position.

  • Page 10: Rep(Repeat) Mode

    REP(REPEAT) MODE 1. Press Repeat mode, and you can select 5 different functions mode as below. ICON Repeat mode Intro : Plays first 10 seconds for each of the file Normal : Plays all stored files one time in order Repeat 1 : Repeats the current selected file Repeat All...
  • Page 11 REP MODE • Press and select REP Mode, and you can enjoy following modes Intro → Normal → Repeat One → Repeat All → Shuffle. Intro Normal Repeat One Repeat All Shuffle...

  • Page 12: Eq(Equalizer) Mode

    EQ(EQUALIZER) MODE Your MPIO is equipped with a preset equalizer that enables you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to. To adjust the desired equalizer mode, press EQ button. You can enjoy 5 different modes as...

  • Page 13: A B(Repeat Segmentation) Mode

    A B(REPEAT SEGMENTATION) MODE 1. Press button during playback. Then the icon will appear on LCD. It indicates the mode is starting. 2. Press button once again to complete the Repeat Segmentation. The icon will appear on LCD. It indicates the mode is selected . If you press the (Rewind &...

  • Page 14: Installing Software On Pc

    • MPIO-DME Manager MPIO-DME Manager is for transferring files between PC and the MPIO. You can download MP3 files and others to your MPIO. You can also upload any other files (except MP3 and WMA files) to your PC using this software.

  • Page 15: Installing The Mpio-Dme Manager

    INSTALLING THE MPIO-DME MANAGER By pressing the 'Next' button you can install the MPIO-DME Manager in order. Click! Click! Click! • The installation of MPIO -DME Manager was finished well. 'MPIO-DME Manager' icon will be created on your Windows desktop.

  • Page 16: Connecting The Mpio To Pc

    Please connect the USB Cable to your MPIO only when your MPIO is in the stop mode. If you connect the USB Cable to your MPIO in the playing mode of your MPIO, the set can become wrong. 2. Only with your USB cable can upload or download the files, even with no battery.

  • Page 17: Formatting Internal Memory

    FORMATTING INTERNAL MEMORY Before formatting internal memory, turn the MPIO on and connect the MPIO to PC using the USB cable. 1. Execute the MPIO-DME Manager. Double-Click! • Double-click the icon of the MPIO-DME Manager on the desktop. 2. Click [Memory] and select [Format Internal Memory].

  • Page 18: Downloading Files To The Mpio

    DOWNLOADING FILES TO THE MPIO Before downloading files to your MPIO, turn the MPIO on and connect the MPIO to PC using the USB cable. 3. Select File(s) to download to the 1. Execute the MPIO-DME Manager. 2. Click Connect icon on the MPIO.
  • Page 19 4. Click Download icon. • You can also select [File] and [Download Files to MPIO]. The selected file has been downloaded. Now you can listen to music with the MPIO after removing the USB cable. Note ■ Always check that 'Con PC' is displayed on the LCD of the MPIO before sending files.

  • Page 20: Erasing Files On Pc

    ERASING FILES ON PC Turn the MPIO on and connect your MPIO to PC and execute the MPIO-DME Manager before erasing. 1. Click the file of the MPIO you would 2. Click [File] and select [Erase Files 3. Click [OK].

  • Page 21: Arranging The Playback Order

    ARRANGING THE PLAYBACK ORDER Connect your MPIO to PC using the USB cable and execute the MPIO-DME Manager. 1. Execute the MPIO-DME Manager. 2. Click [File] and [Change File order 3. Arrange the files by dragging and in MPIO]. dropping.
  • Page 22 4. Click [OK] after moving files to the 5. The MPIO-DME Manager displays desired position. the file arrangement you made.

  • Page 23: Inserting The Smc(Smartmedia Card)

    INSERTING THE SMC(SmartMedia Card) You can store more music by using the SMC ★★★ You have to turn the MPIO off before inserting or ejecting SMC from the MPIO. Inserting SMC 1. Insert the SMC into the SMC Slot. During the playback of files stored in SMC, the SMC icon will blink continuously.

  • Page 24: Safety Precautions

    3. Avoid areas of high humidity, strong magnetic fields, or sources of heat. 4. Do not use thinner, alcohol, or benzene when cleaning the MPIO. 5. To avoid damage to the MPIO, battery always must be taken out when not in use for a long time.

  • Page 25: Troubleshooting

    TROUBLESHOOTING If you have problems with your MPIO, refer to this section first before calling for customer service. 1. The MPIO does not work or nothing is displayed on the LCD. ■ Check the capacity of the battery. One 1.5V AA type battery is required.

  • Page 26: Technical Specifications

    TECHNICAL SPECIFICATIONS MPIO(DME) Model Memory Capacity Voltage Battery Dimensions / Weight (W x H x D) Case File Transmission Speed Memory Socket Signal to Noise Ratio(S/N) Earphone Output Power Output Frequency Range Sampling Rate Compressibility Digitalway reserves the right to make improvements in this manual and the products it describes at any time, without notice.

  • Page 27: This Equipment Has Been Tested And Found To Comply With The Warranty

    WARRANTY This MPIO brand product, as configured and distributed by Digitalway Co., Ltd. and delivered, in the original carton to the original con- sumer purchaser, is warranted by Digitalway against manufacturing defects in materials and workmanship for following limited warranty...
  • Page 28 altered serial numbers; failure to follow operating instruction, costomer adjustment, maintenance and environment environmental instructions that are covered and prescribed in the instruction book; Use of non-Digitalway or unauthorized parts, supplies, accessories or equipment that damage this product or result in service problems; fai- lures or problems due to incompatibility with other equipment.
  • Page 29 Memo...
