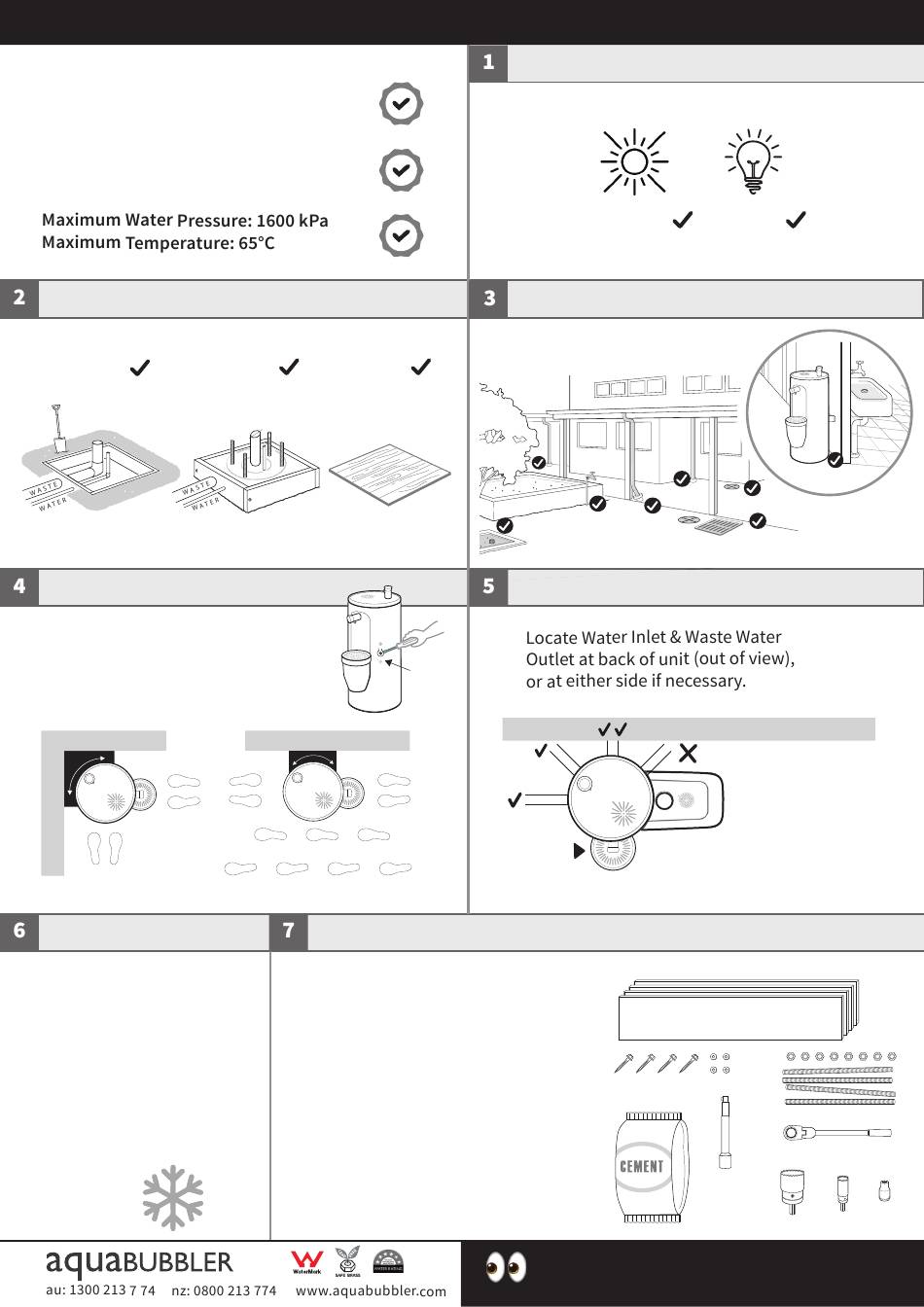

aquaBUBBLER AB12 Pre-Installation

Classic / Universal / Universal 2
Unit must be installed by a
CERTIFIED PLUMBER.
Failure to do so will void all warranties.
Installation must be in accordance with
AS/NZS 3500.1 & AS/NZS 3500.2

Determine Installation Surface

Ground Concrete
Work

Decide Orientation

If near a wall, locate Keyhole
OUTSIDE zone of inaccessibility
(marked as BLACK in illustration
below)
W A L L
C O R N E R

Anti-Freeze Valve

Is an Anti-Freeze
Valve Required?
Where installed in
frost-prone areas, unit
must be fitted with an
Anti-Freeze Valve.
Warranty will otherwise
be void.
a
quaBUBBLER
Timber
Pad Floor
W A L L
W A L K W A Y

Plumbing Tools

1. Timber boxing foundation
2. Screws and washers
3. Bag of cement
4. Socket Extension Bar
5. 10mm threaded rod and nuts
6. Flexible head ratchet wrench
7. 43 mm hole saw
8. 15 mm hole saw
9. 10 mm socket
Code: AB12 / ABUA13 / AB2UA14

Location

Identify Water & Drainage Points

Assign Inlet / Outlet Location

Keyhole
W A L L
Front
Pod
PLease read Pre-installation at back page
ATTENTION: See next page for INSTALL GUIDE
PRE - INSTALLATION
Outdoor Indoor
[ Universal only ]
Do not place Water
Inlet & Waste Water
Outlet under the Side
Pod: this will obstruct
wheelchair access.
1.
2.
5.
4.
3.
6.
7. 8. 9.
