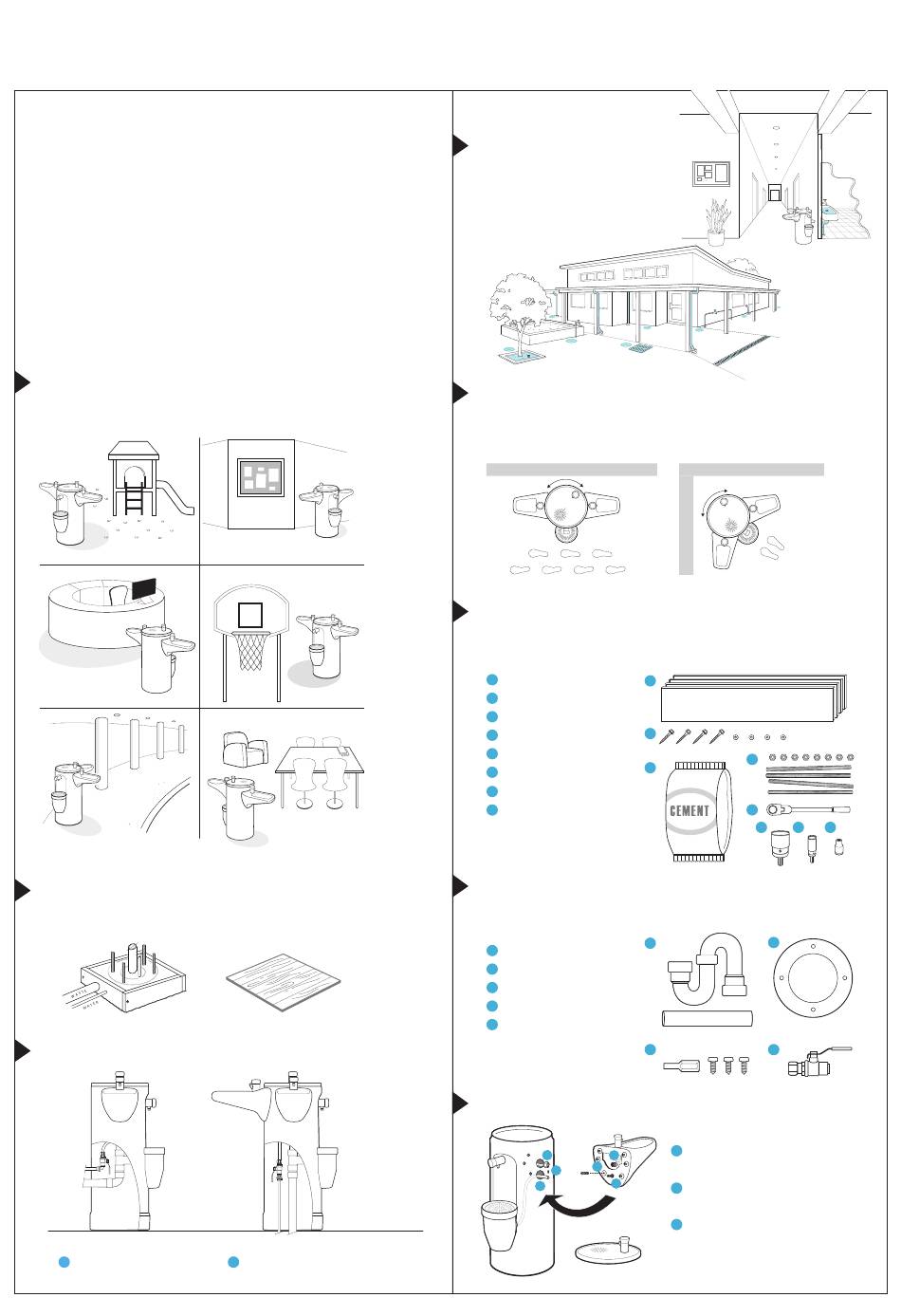

aquaBUBBLER Universal 2 Pre-Installation Manual

Universal 2 aquaBUBBLER pre-installation guide
The following step by step guide will help you organise the
installation of your UA 2 aquaBUBBLER with water bottle re-fill
station.
This will help you prepare for consultation with your plumber
and eliminate any surprises!
A typical installation should take three to four hours, depending
on location.
The UA 2 aquaBUBBLER must be installed by a certified
plumber; failure to do this will void all warranties.
Where can I install an UA 2 aquaBUBBLER?
Indoor and Outdoor
P L A Y G R O U N D
F O Y E R
What can the UA 2 aquaBUBBLER be installed onto?
Concrete pad or timber floor
UA 2 aquabubbler plumbing options
retro fit through the side
1
C O R R I D O R
up through the center
2
What location is best?
Access to water and drainage
Note: Blue depicts areas that are
either water or drainage
UA 2 aquaBUBBLER lid orientation options
Depending on where you install the UA aquaBUBBLER, you can
orientate the lid to best suit
WA L L
WA L K WAY
What materials/ tools will the plumber need?
Depending on the install type, the following is required
Timber boxing foundation
1
1
Screws and washers
2
Bag of cement
3
10 mm threaded rod and nuts 2
4
Flexible head ratchet wrench
5
3
40 mm hole saw
6
15 mm hole saw
7
10 mm socket
8
UA aquaBUBBLER kit contents
Your UA aquaBUBBLER comes with the following...
2
UA aquaBUBBLER
1
S-Trap, waste pipe
2
Security drill bit
3
Base mounting plate
4
Isolation valve
5
3
How to attach the UA protrusion?
1
1
3
3
2
2
AB2UA14
Product Code :
WA L L
4
5
6 7 8
4
5
Connect the Flexi hose to the
1
compressed elbow
Connect the waste pipe to black
2
director
Screw the wheelchair pod to the
3
body using a 5mm allan key
