Twin Refill aquaBUBBLER Installation Guide
[ Version 8-Mar 2024 ] Get the latest version: bit.ly/tab-installation
Page 1: Preinstallation Preparation
I M P O R T A N T
1. Unit must be installed by a Certified Plumber
2. Installation must be in accordance with
max water pressure 1000 kPa, max temp 40°C
3. Where installed in frost-prone areas, unit must be fitted with an
Anti-Freeze Valve.
4. Unit must be installed on a flat & level surface
Nonadherence to any of the above, or failure to follow the steps
detailed in this guide, will VOID ALL WARRANTIES
1
Install onto :
Ground Work
Concrete Pad
AS/NZS 3500.1 & AS/NZS 3500.2
Timber Floor
2

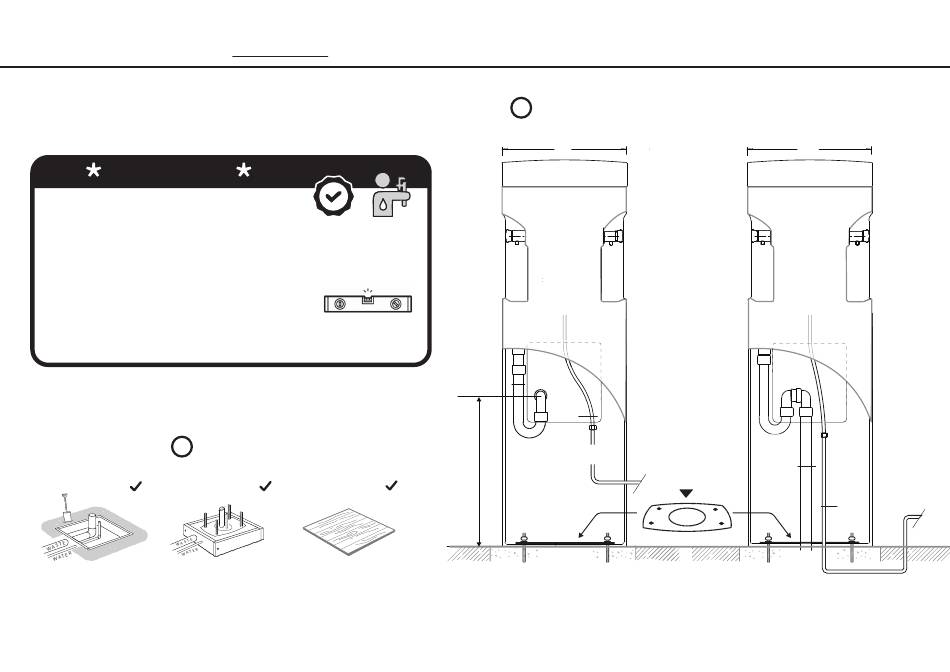

Determine Plumbing Connection
500
Pressure
Regulator
Access
Panel
Max
40
height
15
Waste
Water
Water
Inlet
Outlet
Above Ground
Product Code: ABS14
500
Pressure
Regulator
Access
Panel
Waste
Water
Water
40
Inlet
Outlet
Internal Base
Mounting Plate
15
Below Ground
