aquaBUBBLER Classic Installation Manual

aquaBUBBLER Installation Guide
Pre-installation
[ Version 8-Mar 2024 ] Get the latest version: bit.ly/ab-installation

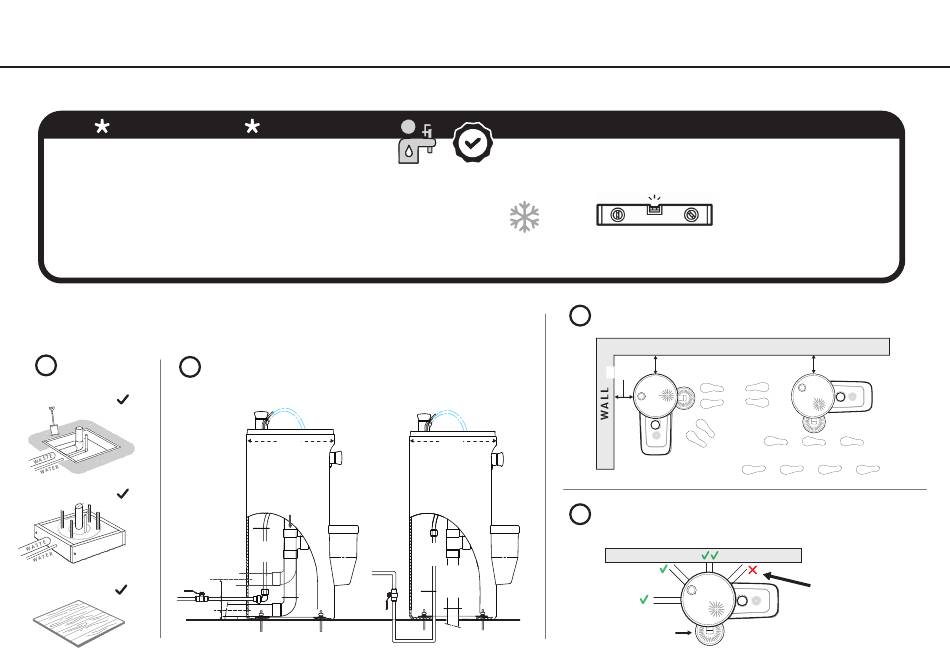

Page 1: Preinstallation Preparation
I M P O R T A N T
1. Unit must be installed by a Certified Plumber
2. Installation must be in accordance with
Max water pressure 1000 kPa, Max temp 40°C
3. Where installed in frost-prone areas, unit must be fitted with an Anti-Freeze Valve.
Nonadherence to any of the above, or failure to follow the steps detailed in this guide, will VOID ALL WARRANTIES
CONSIDERATIONS BEFORE INSTALLATION
1
2 Determine Plumbing Connection
Install onto :
Ground Work
Concrete Pad
Waste
Water Outlet
Max 160
from ground
Timber Floor
30
AS/NZS 3500.1 & AS/NZS 3500.2
Above Ground
Below Ground
315
Waste
Water
Outlet
15
Water
Water
Inlet
Inlet
15
40
4. Unit must have ≥150mm clearance from ALL walls
5. Unit must be installed on a flat & level surface
4 Determine Unit Orientation
3 Determine Unit Orientation
IMPORTANT:
≥ 150mm
5
Decide Location of Inlet / Outlet
315
Locate inlet and outlet discreetly, ideally behind unit.
4
They can also be located at either side.
Waste
Water
Outlet 40
40
180
Classic/Universal/Universal 2 aquaBUBBLER
Product Code: AB12/ABUA13/AB2UA14
Ensure unit is at least 150mm from ALL walls
C O R N E R
W A L K W A Y
≥ 150mm
W A L K W A Y
C O R N E R
W A L L
Front Pod
≥ 150mm
Do not place Water
Inlet & Waste Water
Outlet under the Side
Pod: this will obstruct
wheelchair access.
