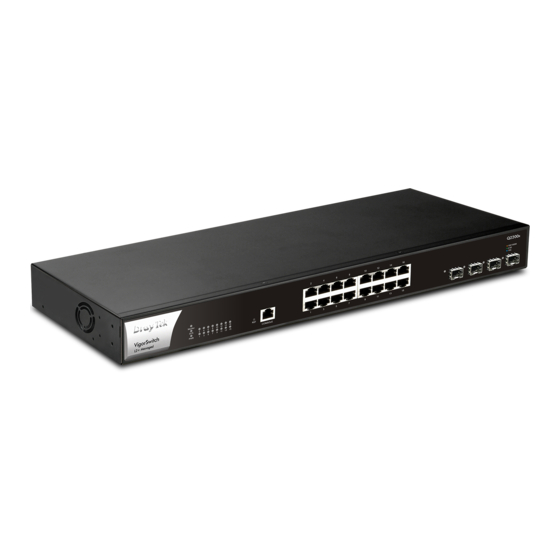

- Page 1 VigorSwitch Q2200x L2+ Managed Switch Quick Start Guide Version: 1. 0 Firmware Version: V2. 7. 1 (For future update, please visit DrayTek web site) Date: July 6, 2022...
- Page 2 Intellectual Property Rights (IPR) Information Copyrights © All right s reserved. This publicat ion cont ains inf ormat ion t hat is prot ect ed by copyright . No part may be reproduced, t ransmit t ed, t ranscribed, st ored in a ret rieval syst em, or t ranslat ed int o any language wit hout writ t en permission f rom t he copyright holders.
- Page 3 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: 16-port 2.5G with 4-port 10G SFP+ up-link Switch ...
-
Page 4: Regulatory Information
Due t o t he cont inuous evolut ion of DrayTek t echnology, all swit ches will be regularly upgraded. Please consult t he DrayTek web sit e f or more inf ormat ion on newest f irmware, t ools and... - Page 5 VigorSwitch Q2200x Quick Start Guide Rack Mount Kit (brackets) Console Cable The t ype of t he power cord depends on t he count ry t hat t he swit ch will be inst alled. UK-type Power Cord EU-type Power Cord...
- Page 6 Port 1 t o 16 Port 17 t o 20 (2. 5GbE RJ45) (SFP+) Status Explanation An alert f or syst em f ailure due t o overheat ing On (Red) or wrong volt age. Monit or The device is in normal condit ion and running Of f normally.
- Page 7 Port 17 t o Port 20 are used f or f iber Port 17 ~ 20 (SFP+) connect ion. Console Used t o perf orm t elnet command cont rol. Power inlet f or AC input (100~240V/ AC, 50/ 60Hz).
- Page 8 This sect ion will guide you t o inst all t he swit ch t hrough hardware connect ion and conf igure t he swit ch’ s set t ings t hrough web browser. Bef ore st art ing t o conf igure t he device, you have t o connect your devices correct ly.
- Page 9 The swit ch can be inst alled easily by using rack mount kit . Fast en t he rack mount kit on bot h sides of t he VigorSwit ch using specif ic screws. Then, inst all t he VigorSwit ch (wit h rack mount kit ) on t he 19-inch chassis by using ot her f our screws.
- Page 10 Bef ore using t he swit ch, perf orm t he f ollowing st eps: 1. Set up a physical pat h bet ween t he conf igured t he swit ch and a PC by a qualif ied UTP Cat . 5e cable wit h RJ-45 connect or. If a PC direct ly connect s t o t he swit ch, you have t o set up t he same subnet mask f or Def ault values of t he managed swit ch are list ed as f ollows: PC and t he swit ch.
- Page 11 2. Af t er conf iguring correct IP address on your PC, open your web browser and access swit ch's IP address. The home page of VigorSwit ch will be shown as below:...
- Page 12 / / gnu. org/ licenses/ gpl-2. 0 Version 2, June 1991 For any quest ion, please f eel f ree t o cont act DrayTek t echnical support at support @drayt ek. com f or f urt her inf ormat ion.
