FV20.1 WD
COMMERCIAL VACUUM CLEANERS
USE AND MAINTENANCE MANUAL
ORIGINAL INSTRUCTIONS DOC. 10117554 - Ver. AA - 07-2022
The design elements and contents of this manual, including its structure, texts, graphics, images and logo, are the exclusive property of FIMAP S.P.A..
They are protected, both collectively and individually, by the current regulations regarding intellectual property (including copyright laws), and cannot be either wholly or partially copied or imitated. Any
reproduction, reprocessing, distribution or dissemination is strictly prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV20.1 WD and is the answer not in the manual?

Questions and answers

Related Manuals for Fimap FV20.1 WD

Summary of Contents for Fimap FV20.1 WD

  • Page 1 ORIGINAL INSTRUCTIONS DOC. 10117554 - Ver. AA - 07-2022 The design elements and contents of this manual, including its structure, texts, graphics, images and logo, are the exclusive property of FIMAP S.P.A.. They are protected, both collectively and individually, by the current regulations regarding intellectual property (including copyright laws), and cannot be either wholly or partially copied or imitated. Any...
  • Page 3 Page 3 of 24...
  • Page 4 Page 4 of 24...

  • Page 5: Table Of Contents

    CONTENTS CONTENTS ......................5 DEFINITION OF LEVELS OF WARNING ............6 GENERAL SAFETY REGULATIONS ..............6 GENERAL DESCRIPTION ................. 6 SYMBOLS USED IN THE MANUAL ..................7 TARGET GROUP ........................7 PURPOSE AND CONTENT OF THE USER AND MAINTENANCE MANUAL ....... 7 STORING THE USE AND MAINTENANCE MANUAL ............

  • Page 6: Definition Of Levels Of Warning

    Keep hold of the instructions for future reference. More information on the appliance is available on our website at www.fimap.com. For any additional questions, please contact your nearest FIMAP service representative, or send an email to service@fimap.com. Page 6 of 24...

  • Page 7: Symbols Used In The Manual

    Operators and qualified technicians must read the instructions in this manual carefully before carrying out any operation on the appliance. If in doubt about the correct interpretation of instructions, contact your nearest FIMAP Customer Service Centre to obtain the necessary clarifications.

  • Page 8: Storing The Use And Maintenance Manual

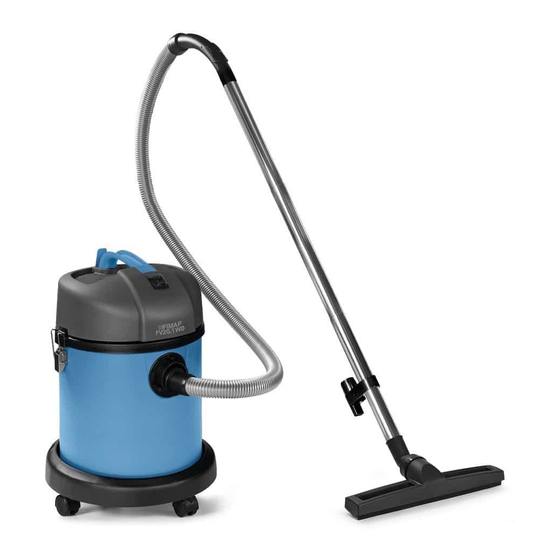

    TECHNICAL DESCRIPTION FV20.1 WD is a wet & dry vacuum cleaner which uses the vacuum created in the collection tank by the fan (enabled by the electrical motor) to pick up dust and dry solid elements measuring up to 2cm at ambient temperature, as the accessories brush against the floor and furnishings.

  • Page 9: Serial Number Plate

    Operator station sound pressure level (Lp dB (A) [IEC 60335-2-72; IEC 62885-9; ISO 11201] Uncertainty Kp dB (A) ±1.5 N.B.: for all other technical data, contact the FIMAP service department by writing to service@fimap.com, or visit the website www.fimap.com. Page 9 of 24...

  • Page 10: Preparing The Appliance

    PREPARING THE APPLIANCE HANDLING THE PACKED APPLIANCE The overall weight of device, including packaging, is 8.5 kg. The external dimensions of the package are: width 380mm; length 380mm and height 465mm. HOW TO UNPACK THE APPLIANCE The procedure for unpacking the appliance is as follows: N.B.: it is recommended that all the packaging components be kept for any future transportation of the appliance.

  • Page 11: Appliance Safety

    Close the carton. ATTENTION: when transporting the appliance on vehicles, secure it firmly in place in accordance with the directives in force in the country of use so that it cannot slide or tip over. APPLIANCE SAFETY The procedure to be followed for securing the appliance is as follows: CAUTION: it is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.

  • Page 12: Work Preparation Checklist

    Regularly check that the cable connecting to the mains If damage is found, the cable should be replaced before is not damaged, for example with signs of ageing or using the appliance again. Please contact the FIMAP cracks. service centre.

  • Page 13: Starting Work (Dry Vacuum Cleaner)

    STARTING WORK (DRY VACUUM CLEANER) The procedure to be followed in order to start work is as follows: CAUTION: it is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out. Check that the main switch (4) is in the rest position; if this is not the case, turn it to “0” (Fig.03). Insert the vacuum pipe into the nozzle (3) in the collection tank;...

  • Page 14: At The End Of The Work

    Insert the vacuum pipe into the nozzle (3) in the collection tank; to secure the vacuum pipe inside the nozzle, turn the sleeve (03) clockwise (Fig.11). Assemble the steel extension tube (Fig.12). Insert the extension tube into the vacuum hose (Fig.13). 10.

  • Page 15: Emptying The Collection Tank

    Remove the vacuum accessory from the extension (Fig.14), clean it under a stream of running water and place it inside the accessory holder at the rear of the collection tank. Remove the extension tube from the vacuum hose (Fig.13). Remove the vacuum hose from the vacuum nozzle (03) on the collection tank; before pulling the vacuum hose, turn the sleeve (02) clockwise (Fig.02).

  • Page 16: Routine Maintenance

    N.B.: To remove dirt particles from the float, use a brush with soft bristles. Wait until dry before using again. DANGER: the vacuum hood of the appliance contains live electrical components; touching these components can cause serious or even fatal injury.

  • Page 17: Extraordinary Maintenance

    Clean the vacuum accessory first with a jet of air, and then with a damp cloth. Free the vacuum head unit from the collection tank by releasing the hooks (6) on the side of the collection tank (Fig. 05). Using the handle (7) on the vacuum head unit, remove the vacuum head unit from the collection tank (Fig.06). 10.

  • Page 18: Selection And Use Of The Accessory

    Secure the cartridge filter (13) to the float support (14) using the retainer (12); to lock the cartridge filter in place, turn the retainer clockwise (Fig.22). Using the handle (7) on the vacuum head assembly, position the vacuum hood over the collection tank (Fig.09) and secure it using the hooks (6) (Fig.10).

  • Page 19: Disposal

    At the end of the machine's life cycle, FIMAP offers the RECYCLING MANUAL (which can be downloaded from the link https://www.fimap.com/it/fimap/ambiente/33/riciclabilita.html), in order to provide some simple information on how to dispose of the materials that make up your scrubbing machine.

  • Page 20: Ec Declaration Of Conformity

    Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products WET & DRY VACUUM CLEANER mod. FV20.1 WD comply with the requirements of the following Directives: • 2014/35/EU: Low Voltage Directive.

  • Page 21: Ukca Declaration Of Conformity

    Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products WET & DRY VACUUM CLEANER mod. FV20.1 WD comply with the requirements of the following Directives: • Electrical Equipment (Safety) Regulations 2016.
  • Page 22 Page 22 of 24...
  • Page 24 FIMAP S.p.A. Via Invalidi del Lavoro, 1 37059 S. Maria di Zevio (VR) Italia +39 045 6060491 - +39 045 6060440 service@fimap.com www.fimap.com...
