Proline Prowirl C 200

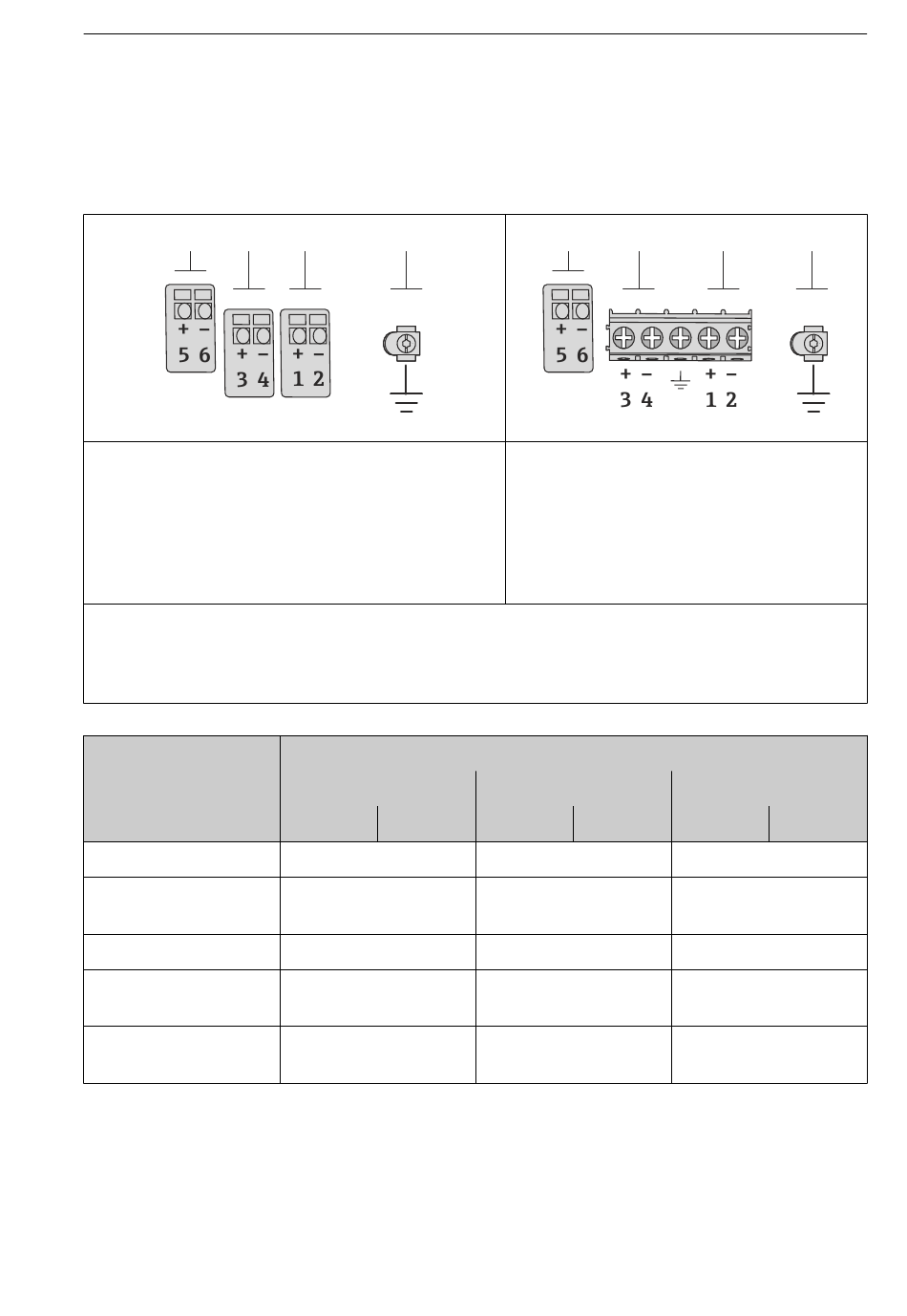

7.1.3 Terminal assignment
Transmitter
Connection versions
3 2
Maximum number of terminals
Terminals 1 to 6:
Without integrated overvoltage protection
1 Output 1 (passive): supply voltage and signal transmission
2 Output 2 (passive): supply voltage and signal transmission
3 Input (passive): supply voltage and signal transmission
4 Ground terminal for cable shield
Order code for "Output"
Option A
1)
Option B
1)
Option C
1)
Option D
2)
Option G
1) Output 1 must always be used; output 2 is optional.
2) PROFIBUS PA with integrated reverse polarity protection.
Remote version
In the case of the remote version, the sensor and transmitter are mounted separately
from one another and connected by a connecting cable. The sensor is connected via the
Endress+Hauser
1 4
A0020738
Output 1
1 (+) 2 (-)
4-20 mA HART (passive)
4-20 mA HART (passive)
4-20 mA HART (passive)
4-20 mA HART (passive)
PROFIBUS PA
3 2
Maximum number of terminals for order code for
"Accessory mounted", option NA "Overvoltage
protection"
• Terminals 1 to 4:
With integrated overvoltage protection
• Terminals 5 to 6:
Without integrated overvoltage protection
Terminal numbers
Output 2
3 (+) 4 (-)
-
Pulse/frequency/switch
output (passive)
4-20 mA (passive)
Pulse/frequency/switch
output (passive)
Pulse/frequency/switch
output (passive)
Electrical connection
1 4
A0020739
Input
5 (+) 6 (-)
-
-
-
4-20 mA current input
(passive)
-
