Technical Information

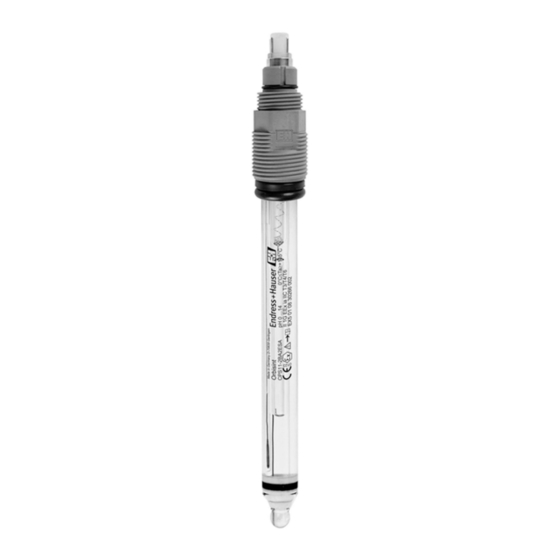

Orbisint CPS11D and CPS11
pH electrodes, analog or with digital Memosens
technology
For standard applications in process and
environmental technology, with dirt-repellent
PTFE diaphragm, built-in temperature sensor
(optional for analog sensor)
Application
• Long-term monitoring and limit value monitoring of processes with stable process
conditions
– Chemical industry: strong acids/bases, plastic, pulp and paper industry
– Power plants (e.g. flue gas cleaning), oil and gas
– Incinerator plants
• Water/wastewater treatment
– Boiler feedwater and cooling water
– Well water and drinking water
– All industrial and municipal treatment plants
With ATEX, IECEx, FM, CSA, TIIS and NEPSI approval for use in hazardous areas
Your benefits
• Low-maintenance and robust thanks to large PTFE ring junction
• Can be used at pressures up to 17 bar abs. (246 psi)
• Process glass also for very alkaline applications (BA and BT versions)
• Process glass for applications in media containing hydrofluoric acid (FA version)
• For media with low conductivity (AS version)
• Integrated NTC30K temperature sensor (Memosens) for effective temperature
compensation; Pt100 or Pt1000 for analog sensors
• Optional: Poison-resistant reference with ion trap
Other advantages of Memosens technology
• Maximum process safety
• Data security thanks to digital data transmission
• Very easy to use as sensor data saved in the sensor
• Recording of sensor load data in the sensor enables predictive maintenance with
the Memobase Plus CYZ71D
Solutions
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Orbisint CPS11D
Summary of Contents for Endress+Hauser Orbisint CPS11D
-
Page 1: Technical Information
Products Solutions Services TI00028C/07/EN/14.15 71299911 Technical Information Orbisint CPS11D and CPS11 pH electrodes, analog or with digital Memosens technology For standard applications in process and environmental technology, with dirt-repellent PTFE diaphragm, built-in temperature sensor (optional for analog sensor) Application • Long-term monitoring and limit value monitoring of processes with stable process conditions –... -
Page 2: Function And System Design
Orbisint CPS11D and CPS11 Function and system design Measuring principle pH measurement The pH value is used as a unit of measurement for the acidity or alkalinity of a liquid medium. The membrane glass of the electrode supplies an electrochemical potential which is dependent upon the pH value of the medium. -
Page 3: Cps11D Communication And Data Processing
Orbisint CPS11D and CPS11 CPS11D communication and data processing Communication with the transmitter Always connect digital sensors with Memosens technology to a transmitter with Memosens technology. Data transmission to a transmitter for analog sensors is not possible. Digital sensors can store measuring system data in the sensor. These include the following: •... - Page 4 Orbisint CPS11D and CPS11 Safety Maximum process safety With inductive transmission of the measured value using a non-contact connection, Memosens guarantees maximum process safety and offers the following benefits: • All problems caused by moisture are eliminated: – Plug-in connection free from corrosion –...
-
Page 5: Installation
Before screwing in the electrode, make sure the threaded connection of the assembly is clean and runs smoothly. ‣ Screw in the electrode finger-tight (3 Nm)! (Data apply only if installing with Endress+Hauser assemblies.) ‣ Make sure to follow the installation instructions in the Operating Instructions of the used assembly. - Page 6 Orbisint CPS11D and CPS11 Process Process temperature Version AA, AS: -15 to 80 °C (5 to 176 °F) Version BA, BT: 0 to 135 °C (32 to 275 °F) Version FA: 0 to 70 °C (32 to 158 °F) Process pressure (absolute)
-
Page 7: Mechanical Construction
Orbisint CPS11D and CPS11 Mechanical construction Design, dimensions of CPS11D (0.47) (0.47) A0025726 A0025725 4 CPS11D with Memosens plug-in head, temperature 5 CPS11D-7BTxx, with ion trap sensor Memosens plug-in head, Pg 13.5 Memosens plug-in head, Pg 13.5 Viton O-ring with thrust collar... - Page 8 Orbisint CPS11D and CPS11 Design, dimensions of CPS11 12 / 0.47 12 / 0.47 A0025733 A0025729 6 CPS11 with GSA plug-in head 7 CPS11 with TOP68 plug-in head, temperature sensor GSA plug-in head, Pg 13.5 TOP68 plug-in head, Pg 13.5...
-
Page 9: Certificates And Approvals
Orbisint CPS11D and CPS11 Reference system Version AA, BA, FA: Ag/AgCl reference lead with Advanced Gel 3M KCl, AgCl-free Version AS: Ag/AgCl reference lead with Advanced Gel, saturated KCl (> 3M KCl) with salt rings, AgCl-free The following are indicative of used salt rings (fixed supply of KCl) under constant process conditions (e.g. - Page 10 Orbisint CPS11D and CPS11 Accessories The following are the most important accessories available at the time this documentation was issued. For accessories not listed here, please contact your service or sales office. Cleanfit CPA871 Assemblies • Flexible process retractable assembly for water, wastewater and the chemical industry •...
- Page 11 Technical Information TI00432C Buffer solutions High-quality buffer solutions from Endress+Hauser - CPY20 The secondary buffer solutions have been referenced to primary reference material of the PTB (German Federal Physico-technical Institute) and to standard reference material of NIST (National Institute of Standards and Technology) according to DIN 19266 by a DKD (German Calibration Service) accredited laboratory.
- Page 12 www.addresses.endress.com...
