Hitachi RAM-200FPS Installation & Maintenance Manual

Hitachi RAM-200FPS Installation & Maintenance Manual

Inverter-driven multi-split system air conditioners

Advertisement

Quick Links

Installation& Maintenance Manual
Models:
RAM-200FPS(D)
RAM-250FPS(D)
The manual make sure to transfer to the next step of construction, and finally the customer keep it.
(Transportation and Handling) → (Refrigerant Piping Work) → (Electrical Wiring) → (Test Run) → (Customer)
Important Notice
●The air conditioner for general use. Food, animals and plants, precision machinery and preservation of works of art and other special purpose,
please do not use.
●Do not install in the following places. If you have gas and oil droplets exist around, it will cause fires and machine deformation, corrosion,
damage.
○Oil (including machine oil) of the droplets, oil gas and more places. ○The sulfur gas and hot springs more places.
●Do not install in the following places, it will cause corrosion.
○Near the sea (in the salty environment). ○An acid or alkaline environment.
●When produce electromagnetic waves used in medical equipment places, please note that the air conditioner to prevent malfunction.
○Do not install the outdoor unit where the electromagnetic wave is directly radiated to the electrical box.
○Do not install the indoor unit, outdoor unit, controller and cable within approximately 3 meters from strong electromagnetic waves such as
medical equipment.
●Do not install in the animals or plants will be directly affected by the wind to the place, otherwise have adverse effects on plants and animals.
●Use the wireless remote controller, since they will be affected by the lighting equipment, etc., resulting in the receiver to receive signals failed,
therefore as far as possible away from the receiver and the lighting of more than 1m.
Safety Summary
●Before installation, This is a " Safety Summary " in the content, be sure to read, for the correct installation.
●In this manual to note that the "
Therefore, an important part of safety, please be sure to actually follow.
●When the installation is complete, and then test run, to confirm whether there is abnormal. Please follow the manual's instructions, using the
method, maintenance method for illustration to customers, and the installation manual and operation manual by the customers really to keep.
【Definition for signal words】
DANGER:Immediate hazards which will result in severe
personal injury or death.
About electrical works
●When perform electrical work , please have a qualified personnel. Please note that the construction is not completely by
yourself, there will be occurred an electric shock.
●Perform electrical work according to Installation Manual and all the relevant regulation and standard. If the instructions are
not followed, an electrical shock and fire may occur due to insufficient capacity and inadequate performance.
●The wiring between products, please use the specification wire. Select the wrong wire, it will cause fire or electric shock.
DANGER
●Ensure that the wiring terminals are tightened securely with the specified torques. If not, generating fire or electrical shock at
the terminals connection part may occur.
●Fix the cables securely. External forces on the terminals could lead to a fire.
●Use an ELB(Earth Leakage Breaker);In the event of fault, there is danger of an electric shock or a fire if it not used.
●Due to electrical wiring, inspection work and open the service cover, completely turn off the power to implement in order to
avoid electric shock.
●Check that the ground wire is securely connected. If the unit is not correctly grounded, it leads electrical shock. Do not
connect the ground wiring to gas piping, water piping, lighting conductor or ground wiring for telephone.
About installation
●When installation, make sure you follow the installation manual. If the instructions are not followed, it may result in a water
leakage, electric shock or a fire.
●Please install the unit where is able to withstand the weight. Strength, and installation is not complete, the body may fall and
cause injury.
●Please do not place flammable gas and have doubts about the place to the installation, it may cause fires and other
DANGER
accidents.
●Do not climb air conditioner, or place objects on top, so as to avoid falling damage.
●In case of refrigerant leakage occurs, please immediately turn off the fire source (such as: stoves and other appliances),
remove the refrigerant on the ground, open the doors and windows to ventilation , and contact your service contractor.
●The indoor unit drain pipe do not directly into the drainage ditches. The biogas will be produced through the drain pipe into
the indoor, resulting in poisoned phenomenon.

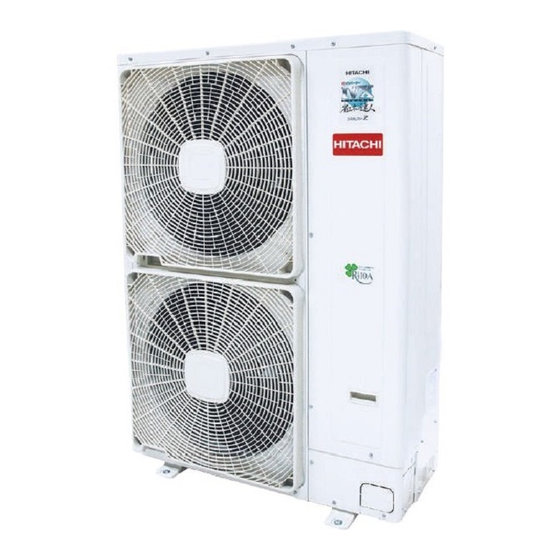

INVERTER-DRIVEN
MULTI-SPLIT SYSTEM
AIR CONDITIONERS
Outdoor Units
RAM-270FPS(D)
Danger"
Caution, when the installation error, it may lead to significant harm, particularly marked.
:Enforcement matters;Machine with a ground terminal, the user
must follow the instructions for ground work.
:Prohibitions.
:Enforcement matters;Indicating the general behavior
(Non-specific object).
1
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
USING THIS HEAT-PUMP
AIR CONDITIONER.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
66MP1306

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAM-200FPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hitachi RAM-200FPS

  • Page 1 AIR CONDITIONER. KEEP THIS MANUAL FOR FUTURE REFERENCE. Installation& Maintenance Manual Models: RAM-200FPS(D) RAM-250FPS(D) RAM-270FPS(D) ■ The manual make sure to transfer to the next step of construction, and finally the customer keep it. (Transportation and Handling) → (Refrigerant Piping Work) → (Electrical Wiring) → (Test Run) → (Customer) Important Notice ●The air conditioner for general use.
  • Page 2: Common Items

    Outdoor Unit Model Combination Capacity of Ratio Minimum Individual Operation Combination Quantity (For Outdoor Unit) Capacity RAM-200FPS(D) RAM-250FPS(D) 100~130% 2.2kW(2000kcal/h) RAM-270FPS(D) ●For the system which all indoor units are operated simultaneously, the total indoor unit capacity should be less or equal to the outdoor unit capacity.
  • Page 3 2.2 The following is accessory parts of the outdoor unit. Please confirm it before installation. Accessory Q’ty Use Place Use Method Use to connect gas Please refer the piping work Flange Combination piping. on page 9. Drain Connector Base condensation Please refer the foundation water exhaust.
  • Page 4 ‧No interchangeability is available due to higher pressure ● ■ when compared with R22. Manifold Valve R410A connection diameter:1/2 UNF Vacuum Pumping; Vacuum Holding; R407C connection diameter:7/16 UNF Refrigerant Charging and ◎< Do not use current ones (R22) to the different Check of Pressures Vacuum ●...
  • Page 5 4. Installation Work 4.1 Outdoor unit installation place selected (common items) 1) Make sure the outdoor unit installation space, convenient to the normal operation and maintenance services. 2) Install the outdoor unit where good ventilation is available, and where it is dry. 3) Install the outdoor unit where it is in the shade or it will not be exposed to direct sunshine or direct radiation from high temperature heat.
  • Page 6 4.2 Installation Space Around the outdoor unit must ensure the maintenance of space as shown below. 1) Obstruction in the air inlet side (a) When the above open (Unit: mm) A separate installation A row installation (two more) The Side Is Open The Side Has Obstruction 300 Above 200 Above...
  • Page 7 2) Obstruction in the air outlet side (a) When the above open (Unit: mm) A separate installation A row installation (two more) 100 Above 700 Above Front Side 700 Above 100 Above 50 Above ★With the unit rear side same direction. Note: Must install the wind break cover plate (Option), and the both sides must one side be opened at least.
  • Page 8 4.3 Foundation Work 1) Anchor bolts installation, lock method and fixed examples. Unit Base Washer Φ 16 x 23.5 Long Hole Anchor Bolt (M12) If ensure ※ 170 dimension, and without Concrete Filled Mortar interference with foundation base, it can be downward the piping work.
  • Page 9: Refrigerant Piping Work

    Hole of wall pipe Attach a cap or vinyl tape Attach a cap or vinyl tape 2) Piping Direction: The pipe can be connected in four directions. Φ Φ Size RAM-200FPS(D) 9.53 25.4 RAM-250FPS(D) 12.7 25.4 RAM-250FPS(D) 12.7 28.6 Base Pipe Hole (Unit: mm) ●Flange Combination(accessory parts)
  • Page 10 30m (indoor unit is higher than outdoor unit.) 12.7 Φ 28.6 RAM-270FPS(D) Φ ※: RAM-200FPS(D) piping length exceeds 70m, the liquid pipe size from Φ9.53 change to Φ12.7. ● ● ● Rear piping removing ways. Under piping removing ways. Front and right piping removing ways.
  • Page 11 25.4/9.53 And Connection Pipe 15~22.99 22.2/9.53 E-NP282S E-N55HT ※2 15 19.05/9.53 ※1: RAM-200FPS(D) piping length (L +l Φ Φ ) exceed above 70m, the liquid pipe size from 9.53 change to 12.7。 ※2: E-N55HT (Header Branch), It can be used that each indoor unit distribution and connection.
  • Page 12 ● Multi-kit pipe please follow the requirement, remove the no used pipe, other pipes will be welded into the multi-kit pipe, otherwise it will result in reducing cooling capacity. Line Branch Pipe Type E-NP282S E-NP452S Piping Liquid Piping Header Branch Pipe E-N55HT Type Piping...
  • Page 13 ● Setting ways of branch pipe Best installation situation 最佳安裝狀況 Third Branch 第 3 分歧 Third Branch 第 3 分歧 第 2 分歧 Second Branch 室外機 Outdoor 第 2 分歧 Second Branch 室外機 第 1 分歧 室外機 First Branch Outdoor 第...
  • Page 14 ● The header branch pipe fixed limits: The header branch pipe must be installed horizontally. 3) Mixing setting of line branch and header branch, as shown below: Correct Setting Correct Setting Wrong Setting Maximum length 40m First Branch First Branch Header Second Branch Branch...
  • Page 15 W:Additional refrigerant of liquid pipe (kg) = W11+W12+W13 upper limit weight (kg) ×0.12(kg)= Φ (kg) W11: 12.7 liquid pipe length (m) ×0.07(kg)= RAM-200FPS(D) Φ W12: 9.53 liquid pipe length (m) 13.5 RAM-250FPS(D) ×0.03(kg)= Φ W13: 6.35 liquid pipe length (m)
  • Page 16 The total amount of refrigerant within the system: 20kg Outdoor Unit Outdoor Unit Cooling Capacity Outdoor Unit Model Refrigerant Pipe Outdoor Outdoor Model Refrigerant Pipe R410A Indoor Unit RAM-200FPS(D) (Ventilation 4.11Ton Tiny Room Indoor (Ventilation Indoor Most Small Room Mouth) RAM-250FPS(D) Mouth) 4.11 Ton Medium Room...
  • Page 17: Electrical Wiring

    Rating Sensitivity Capacity Size Current Current Capacity Number of Φ Size Current Poles (mA) Model 60Hz RAM-200FPS 2-Core Shielded 230V RAM-250FPS Twist Pair Cable 0.75mm RAM-270FPS RAM-200FPSD Total Length 1000m RAM-250FPSD 380V Below RAM-270FPSD Note: When earth leakage breaker specification selection, please according to above table (Note: The earth leakage breaker of power Φ...
  • Page 18 the inverter corresponding type earth leakage breaker (ELB) and the manual switch. 3) The transmission cable of the connection must be sure to connect the wiring with the same refrigerant cycle system of the unit. (On the outdoor unit, the refrigerant piping is connected to the indoor unit, its transmission cable is also sure to connect the same indoor unit.) Refrigerant piping and the transmission cable if connected with a different refrigeration cycle, there will be abnormal operation occurred.
  • Page 19 11) Wiring connection port: After wiring, must be implemented sealing to prevent water invasion inside the metal conduit pipe. Make sure the distance between the terminal plugs, terminal plugs shall be attached the insulation tape or insulation sleeve. Cord Band Operation Rear Cover 1.
  • Page 20 The unit has been setting according to the Capacity Setting required following table. RAM-270FPS(D) RAM-250FPS(D) RAM-200FPS(D) 8. Test Run 【Before Test Run】 ● Before test run, please re-confirm the installation whether there are problems, also confirm the following points. ●...
  • Page 21 【Test Run】 ● When installation is completed, perform test run according to the following procedure, and make sure that whether the abnormal operation, then hand over the system to the customer. 1) Outdoor unit the gas stop valve and the liquid stop valve, make sure full open state. 2) Please implement the test run of the indoor unit in turn, confirm the refrigerant cycle system and the electrical wiring system is the same.
  • Page 22: Alarm Code

    Alarm Code Code Distinction Content of Abnormality Leading Cause Indoor Unit Activation of Protection Device(Float Activation of Float Switch (High water Level Drain Pan, Abnormality Indoor Unit Switch) of Drain Pipe, Float Switch or Drain Pan) Activation of High Pressure Switch (4.15MPa); Air Conditioner Outdoor Unit Outdoor Unit Activation of Protection Device Outdoor Unit Fan Motor Lock.
  • Page 23 Test Run and Maintenance Record MODEL: SERIAL. No. COMPRESSOR MFG. No. DATE: CUSTOMER'S NAME AND ADDRESS: 1. Is the rotation direction of the indoor coil fan correct? 2. Is the rotation direction of the outdoor coil fan correct? 3. Are there any abnormal compressor sounds? 4.
  • Page 24 66MP1306 Printed in Philippines...
