Summary of Contents for Hover-1 EDGE 2.0

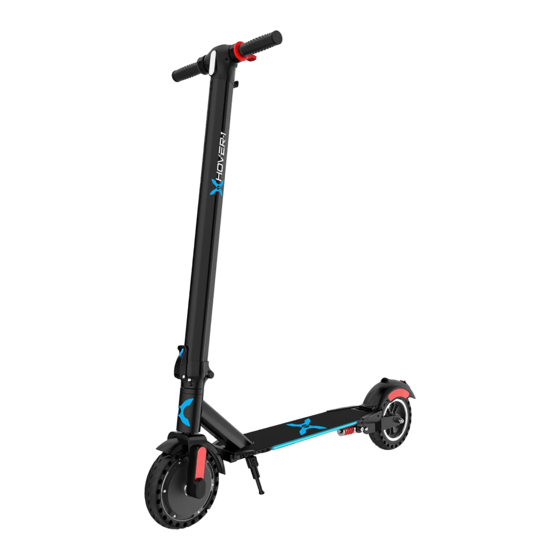

- Page 1 ELECTRIC FOLDING SCOOTER O P E RATI ON M A NUAL DSA E D GE...
- Page 2 HELMETS SAVE LIVES! Always wear a properly itted helmet that complies with CPSC or CE safety standards when you ride your E Scooter. Correct Fit: Make sure your helmet covers your forehead. Incorrect Fit: Forehead is exposed and vulnerable to serious injury.
- Page 3 WARNING Great care should be taken with the Hover-1 Edge 2.0 when folding and unfolding it. Moving and folding parts can cut skin or pinch if mishandled. DO NOT RIDE YOUR HOVER 1 EDGE 2.0 WITHOUT THE STEERING COLUMN, FOLDING HINGE, AND HANDLEBARS SECURELY LOCKED IN PLACE.
- Page 4 • To avoid collisions, falls, and loss of control, please learn how to ride the Edge 2.0 safely. • You can learn how to ride the Edge 2.0 by reading the operation manual and watching videos. • All users are responsible for any consequences caused by violating warning contents or proper operations.
- Page 5 Edge 2.0, increasing internal resistance. Additonally, the discharge capacity and capacity of the battery will be signi icantly decreased. Use caution when riding the Edge 2.0 in cold temperatures (below 40°F/4°C). Doing so may increase the risk of mechanical failures of the E Scooter, which may lead to damage to your device, property damage, serious bodily injury, and even death.
- Page 6 • Do not operate or allow others to operate the Edge 2.0 until the user understands all instructions, warnings, and safety features described in this manual. • Check with your doctor if you have a medical condition that could a ect your ability to use the Edge 2.0.
-
Page 7: Safety Precautions
Your Edge 2.0’s serial number is stamped on the bottom of the E Scooter platform. Record the serial number in the designated area of the “WARRANTY” section of this manual in case your Edge 2.0 is lost or stolen. SAFETY PRECAUTIONS •... - Page 8 • Slow down at all street intersections and look to the left and right before crossing. • Your Edge 2.0 electric folding scooter is not equipped with re lectors. It is not recommended that you ride in conditions of low visibility.
- Page 9 • If you are riding near other riders, be sure to maintain a safe distance between each other to prevent collisions. • Be sure to keep your feet on the Edge 2.0 at all times. Moving your feet o your Edge 2.0 while driving is dangerous and may cause the Edge 2.0 to stop suddenly or veer sideways.
- Page 10 • Do not ride your Edge 2.0 near motor vehicles or on public roads. • Do not travel up or down steep hills. • The Edge 2.0 is intended for use by a single individual, DO NOT attempt to operate the Edge 2.0 with two or more people.
- Page 11 • Do not ride the Edge 2.0 near or over potholes, cracks, or uneven pavement or surfaces. • Do not operate your Edge 2.0 o -road. • Do not turn sharply, especially at high speeds. • Do not exceed the maximum weight limit of 264 lbs (120 kg).
-
Page 12: Care And Maintenance
• Do not let the Edge 2.0 come into contact with sharp objects, as this will cause scratches and damage. • Do not let the Edge 2.0 fall from high places, as doing so may damage the internal circuitry. • Do not attempt to disassemble the Edge 2.0. -
Page 13: Battery Care / Maintenance
• When charging the E Scooter, only use the enclosed 1-pin charging cable provided by Hover-1. Use of any other charger or cable may lead to damage to the E Scooter, overheating, and risk of ire. Use of any other charger or cable voids the manufacturer warranty. - Page 14 • Do not attempt to modify, change, or replace your battery. • Do not use your device if the battery begins to emit odor, overheats, or begins to leak. • Do not touch any leaking materials or breathe fumes emitted. •...
-
Page 15: Specifications
Non-pneumatic solid tires Tire Size: 8” front & rear Brake Type: Electronic & mechanical brakes BT ID: D051448 FCC ID: 2AANZEDGEWY UL Certi ication: UL2272 certi ied PARTS LIST A. Edge 2.0 E Scooter B. Handlebars C. Charger D. Hex Key... - Page 16 HOVER 1 EDGE 2.0 DIAGRAM FEATURES/PARTS 1. Handlebars (L) 8. Folding Hinge 2. LCD Display 9. Steering Column 3. Handlebars (R) 10. LED Headlight 4. Electronic Brake 11. Kickstand 5. Power/Function Button 12. Deck Light 6. Charging Port 13. Mechanical Brake 7.
-
Page 17: Lcd Display
HOVER 1 EDGE 2.0 DIAGRAM LCD DISPLAY ELECTRIC BRAKE THROTTLE CHARGE POWER BUTTON PORT FOLDING CLIP LCD DISPLAY SPEEDOMETER Displays your current speed in mph. Displays the current speed mode when toggled. With the E Scooter powered on, press the power button once to switch... - Page 18 BLUETOOTH SPEAKER ® The Edge 2.0 has a powerful built-in wireless speaker, so you can play your music while riding. PAIRING THE SPEAKER 1) Turn on your E Scooter. The speaker will “ping” to announce that it’s waiting for a Bluetooth connection.
- Page 19 • Connect the cable with the power supply (100V 240V; 50 Hz/60 Hz). • Align and connect the 1-pin charging cable into the charging port of the Edge 2.0 (DO NOT FORCE OR BEND THE CHARGING CABLE AS IT MAY CAUSE THE PRONGS TO BEND OR BREAK).
-
Page 20: Pinch Points
PINCH POINTS Some parts of your Edge 2.0 can injure you if mishandled. Moving and folding parts can cut skin. Clamps and pivoting parts such as brake levers can pinch. When folding and unfolding your Edge 2.0, please watch for pinch points where possible injury may be sustained. - Page 21 • Check the screws indicated in below diagram every 3 months. If you ind any loose screws, tighten them using the hex key provided.
-
Page 22: Folding And Unfolding
FOLDING & UNFOLDING To fold your Edge 2.0, push the folding hinge release button and pull the folding hinge down. Push the steering column down to the rear foot brake. Align the folding hook (located near the charging port) with the opening in the rear foot brake to lock the Edge 2.0 in a folded position. -
Page 23: Before Riding
PRE RIDE CHECKLIST Ensure that your Edge 2.0 is in proper working order each time you ride. If a part of the Edge 2.0 does not function correctly, please contact our Customer Support Center. - Page 24 OPERATING YOUR DEVICE Make sure the device is fully charged before the irst use. Before turning on your Edge 2.0 E Scooter, ride it like a normal kick scooter to get comfortable with the device before using it with the motor.
- Page 25 OPERATING RANGE The Edge 2.0 can travel up to 6 miles on a fully charged battery under ideal riding conditions. The following are some of the major factors that will a ect the operating range of your device: •...
-
Page 26: Safety Alerts
SAFETY ALERTS If a system error occurs or an improper operation is performed while riding your Edge 2.0, the device will alert the user in a variety of ways. The following are common occurrences that will produce safety alerts. These notices should not be ignored and appropriate action should be taken to correct any improper operation, failure, or errors. -
Page 27: Fcc Statement
FCC STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 28: Warranty
WARRANTY For warranty information, please visit us at www.hover-1.com Manufacturer: DGL Group, Ltd. 2045 Lincoln Highway, Edison, NJ 08817 Error E1- motor hall failure, the motor needs to be replaced Error E2 - accelerator failure, the accelerator needs to be replaced... - Page 29 @Hover1Rideables @RideHover1 @RideHover1 www.Hover-1.com...
