Summary of Contents for Hover-1 COMET EU-H1-COMT
- Page 1 ELECTRIC FOLDING SCOOTER ORIG I NA L IN S TR U C T I O N E U - H 1- C O M T Read Operator’s Manual...
- Page 2 HELMETS SAVE LIVES! Always wear a properly tted helmet that complies with CPSC or CE safety standards when you ride your scooter. Correct Fitting: Make sure your helmet covers your forehead. Incorrect Fitting: Forehead is exposed and vulnerable to serious injury.
- Page 3 WARNING As with all mechanical components, the Hover-1 Comet is subjected to wear and high stresses. Di erent materials and components may react to wear or fatigue in di erent ways. If the design life of a component has been exceeded, it may suddenly fail possibly causing injuries to the rider.
- Page 4 E-Scooter EU-H1-COMT. If the power supply cord of the charger is damaged, in order to avoid hazards, it must be replaced by Hover-1 only or one of Hover-1’s service agents. 2. The operating temperature range of the charger is 32 – 104° F (0–...
- Page 5 LOW TEMPERATURE WARNING Low temperature will affect the lubrication of moving parts inside the Comet, increasing internal resistance. At the same time, in low temperatures, the discharge capacity and the capacity itself of the battery will be significantly decreased. Use caution when riding the Comet in cold temperatures (below 40 degrees F).
- Page 6 • Do not operate, or allow others to operate, the Hover-1 Comet, until the user understands all instructions, warnings and safety features described in this manual. • Check with your doctor if you have a medical condition that could affect your ability to use the Hover-1 Comet.
-
Page 7: Safety Precautions
• You should check with local officials to ensure you are complying with local traffic law requirements. • Hover-1 is not liable for tickets or violations given to riders who do not follow local laws and regulations. • For your safety, always wear a helmet that meets CPSC or CE safety standards. - Page 8 • Obey all local traffic laws. Obey red and green lights, one-way streets, stop signs, pedestrian cross-walks, etc. • Ride with the traffic, not against it. • Ride defensively; expect the unexpected. • Give pedestrians the right-of-way. • Do not ride too close to pedestrians and alert them if you intend to pass them from behind.
- Page 9 • Do not try to open or modify your Comet scooter. Doing so, voids the manufacturer warranty and may cause your Comet to fail, resulting in injury or death. • Do not use the Comet in a manner that would put people or property in danger.
- Page 10 WARNING Proper use of your brake is vital to ensure safe, e icient stopping. To avoid misuse and potential injury, do not apply sudden or excessive force to your brakes. Apply your brakes gradually and give yourself enough room to come to a complete stop safely.
- Page 11 WARNING When you ride in low-visibility conditions such as fog, dusk, or night, you might be di icult to see, which could lead to a collision. In addition wear bright, re ective clothing when riding in poor lighting conditions. • Do not turn sharply, especially at high speeds. •...
- Page 12 retightened • Keep safe braking distances during wet weather. • The parking device kickstand shall be engage when vehicle is not on use. • It’s strictly forbidden for users themselves to replace any friction components or wear parts. • Considering security, it’s necessary to use a lock-up when not in use to avoid non-authorized use and to avoid others to misuse it and get hurt.
-
Page 13: Care And Maintenance
• Do not let the device fall from high places, as doing so may damage the internal circuitry. • Do not attempt to disassemble the device. • Use only the charger provided by Hover-1. WARNING WARNING Avoid using water or other liquids for cleaning. If water or Avoid using water or other liquids for cleaning. -
Page 14: Battery Care / Maintenance
BATTERY CARE / MAINTENANCE BATTERY CARE / MAINTENANCE BATTERY SPECIFICATIONS Battery Type: Rechargeable lithium-ion battery Charge Time: Up to 5 hours Battery Voltage: 25.2V Battery Capacity: 4 Ah Working Temperature: 32°F - 104°F Charging Temperature: 32°F - 104°F Storage Time: 1 year Storage Temperature: -4°F - 104°F Storage Humidity: 5% - 95% BATTERY MAINTENANCE... - Page 15 • The battery contains dangerous substances, do not open the battery, or insert anything into the battery. • Please only use the charger provided by Hover-1. • Do not attempt to charge the device if the battery has discharge or emits any substances. In that case, immediately distance yourself from the battery in case of fire or explosion.
- Page 16 • Check the screws indicated in below diagram every 3 months. If you detect any loosened parts, re-tighten using the wrench provided.
-
Page 17: Specifications

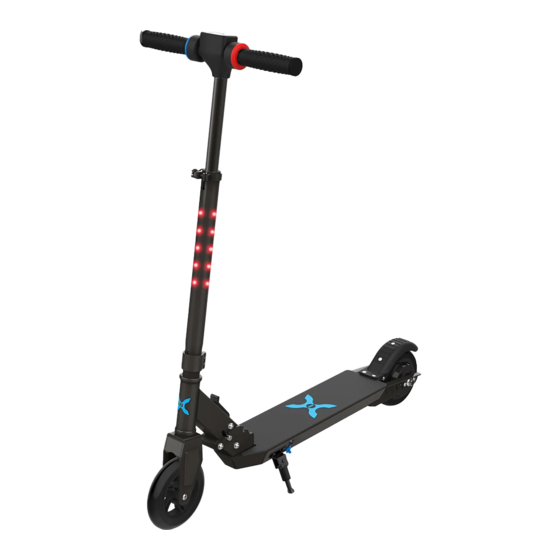

SPECIFICATIONS Model: EU-H1-COMT Net Weight: 9.6 kg (21.1 lbs) Max Supported Weight: 68 kg(150 lbs) Min Supported Weight: 20 kg (44 lbs) Max Speed: Up to 16 km/h (10 mph) Max Distance Range Up to 8 km (5 miles) Maximum Continuous Rated Power: 200 W Battery Type:... - Page 18 HOVER-1 COMET DIAGRAM FEATURES/PARTS 1. Electric Brake 9. Folding Release Lever 2. LED Display 10. Footpad 3. Electric Throttle 11. Mechanical Brake 4. Handlebars 12. Rear Hub Motor 5. Power Button 13. Kickstand 6. Bell 14. Charge Port 7. Locking Clamp 15.
-
Page 19: Lcd Display
HOVER-1 COMET DIAGRAM LCD DISPLAY THROTTLE ELECTRIC BRAKE BELL POWER BUTTON FOLDING CLIP LCD DISPLAY SPEEDOMETER Displays your current speed in Mph. Press 3 times constantly to switch between Mph and Km/h. BATTERY INDICATOR Displays your current battery life. POWER/ FUNCTION BUTTON... - Page 20 • Power off your Comet Scooter when charging. CAUTION Only use the included charging cable and charger to charge your Hover-1 Comet. Using any other unauthorized charger may damage your Hover-1 Comet. WARNING Any Comet that does not work properly can cause you to lose control and fall.
- Page 21 PREPARING YOUR SCOOTER PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY ATTACHING THE HANDLEBARS AND BELL 1. Attached the left handle bar by placing it into appropriate sockets and twisting it anticlockwise in the correct direction. 2. Attached the bell into right handle bar. 3.
-
Page 22: Pinch Points
PINCH POINTS Some parts of your Hover-1 Comet can injure you if mishandled. Moving and folding parts can cut skin. Clamps and pivoting parts such as brake levers can pinch. When folding and unfolding your Hover-1 Comet, Please watch for pinch points where possible injury may be sustained. -
Page 23: Before Riding
BEFORE RIDING WARNING Any Comet Scooter that does not work properly can cause you to lose control and fall. Do not ride an Comet with a part that is damaged; replace the damaged part before riding. It is important that you fully understand all elements of your Comet scooter. - Page 24 RIDING YOUR COMET SCOOTER FAILURE TO FOLLOW ANY OF THE FOLLOWING SAFETY PRECAUTIONS CAN AND MAY LEAD TO DAMAGE TO YOUR DEVICE, VOID YOUR MANUFACTURER WARRANTY, LEAD TO PROPERTY DAMAGE, CAUSE SERIOUS BODILY INJURY, AND CAN LEAD TO DEATH. OPERATING YOUR DEVICE Make sure the device is fully charged before the first initial use.
- Page 25 WEIGHT AND SPEED LIMITATIONS Speed and weight limits are set for your own safety. Please do not exceed the limits listed in the “Specifications” section of this manual. WARNING Overweight exertion on the device may increase possibility of injury or product damage.
-
Page 26: Safety Alerts
SAFETY ALERTS While riding your Comet Scooter, if there is a system error or illegal operation performed the device will prompt the user in a variety of ways. The following are common occurrences where you will see Safety Alerts. These notices should not be ignored, but appropriate action should be taken to correct any illegal operation, failure or errors. -
Page 27: Warranty
Cleaning and user maintenance shall not be made by children without supervision. WARRANTY WARRANTY For warranty information, Please visit us at: www.hover-1.eu Affix Serial Number Label Here: Manufacturer: DGL GROUP LTD, UK, LE4 8AT, UNITED KINGDOM DGL GROUP LTD, EU, 47877, GERMANY Read The Information... -
Page 28: Ec Declaration Of Conformity
WEEE DIRECTIVE Following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. - Page 29 CHARGER LABEL ELECTRIC FOLDING SCOOTER ELECTRIC FOLDING SCOOTER SCOOTER LABELS RECYCLING COMET This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be Model: EU-H1-COMT handled pursuant to European directive Input: 29.4 V 1.0 A 2012/19/EU in order to be recycled or...
- Page 30 FOR YOUR SAFETY, PLEASE READ THE ENTIRE OPERATION MANUAL BEFORE OPERATING THE HOVER-1 COMET. • Always wear proper protective equipment, such • Maximum weight load is 68 kg. as helmets. Helmets should fit properly with the • Adult supervision required.
- Page 31 @RideHover1 @RideHover1 @RideHover1 @RideHover1 www.Hover-1.eu...
