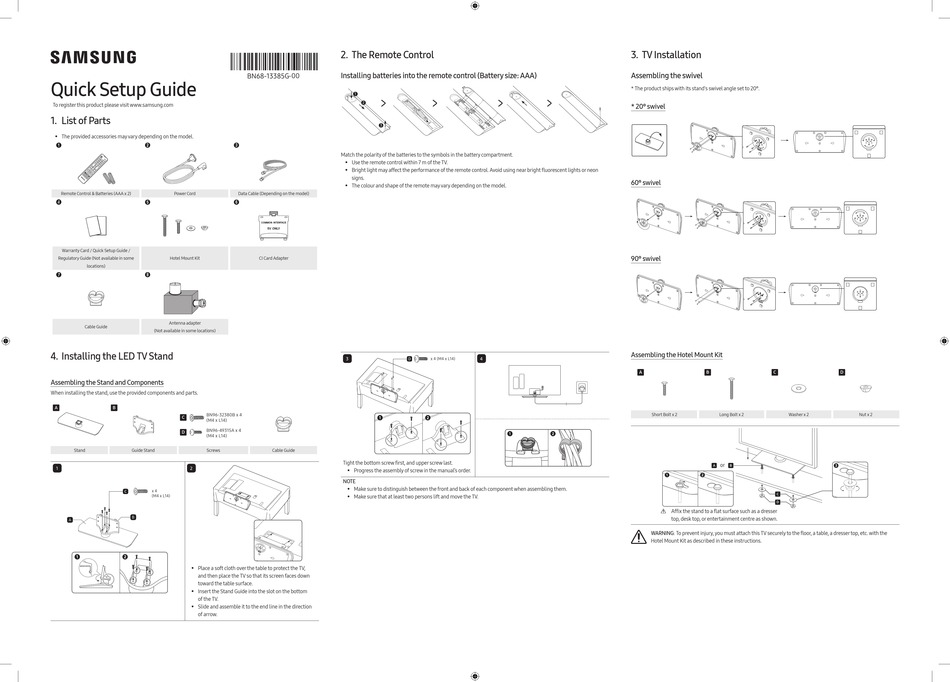

Quick Setup Guide
To register this product please visit www.samsung.com
1. List of Parts
• The provided accessories may vary depending on the model.
1 2
Remote Control & Batteries (AAA x 2) Power Cord
4 5
Warranty Card / Quick Setup Guide /
Regulatory Guide (Not available in some Hotel Mount Kit
locations)
7 8
Antenna adapter
Cable Guide
(Not available in some locations)
4. Installing the LED TV Stand
Assembling the Stand and Components
When installing the stand, use the provided components and parts.
A B
BN96-32380B x 4
C
(M4 x L14)
BN96-49315A x 4
D
(M4 x L14)
Stand Guide Stand Screws
1 2
x 4
(M4 x L14)
• Place a soft cloth over the table to protect the TV,
and then place the TV so that its screen faces down
toward the table surface.
• Insert the Stand Guide into the slot on the bottom
of the TV.
• Slide and assemble it to the end line in the direction
of arrow.
2. The Remote Control
Installing batteries into the remote control (Battery size: AAA)
-00
1
2
3
3
Match the polarity of the batteries to the symbols in the battery compartment.
• Use the remote control within 7 m of the TV.
• Bright light may affect the performance of the remote control. Avoid using near bright fluorescent lights or neon
signs.
• The colour and shape of the remote may vary depending on the model.
Data Cable (Depending on the model)
6
CI Card Adapter
3
Cable Guide
Tight the bottom screw first, and upper screw last.
• Progress the assembly of screw in the manual's order.
NOTE
• Make sure to distinguish between the front and back of each component when assembling them.
• Make sure that at least two persons lift and move the TV.
4
x 4 (M4 x L14)
3. TV Installation
Assembling the swivel
* The product ships with its stand's swivel angle set to 20°.
* 20° swivel
60° swivel
90° swivel
Assembling the Hotel Mount Kit
A B C
Short Bolt x 2 Long Bolt x 2 Washer x 2
or
A B
C
D
[ Affix the stand to a flat surface such as a dresser
top, desk top, or entertainment centre as shown.
WARNING: To prevent injury, you must attach this TV securely to the floor, a table, a dresser top, etc. with the
Hotel Mount Kit as described in these instructions.
D
Nut x 2
