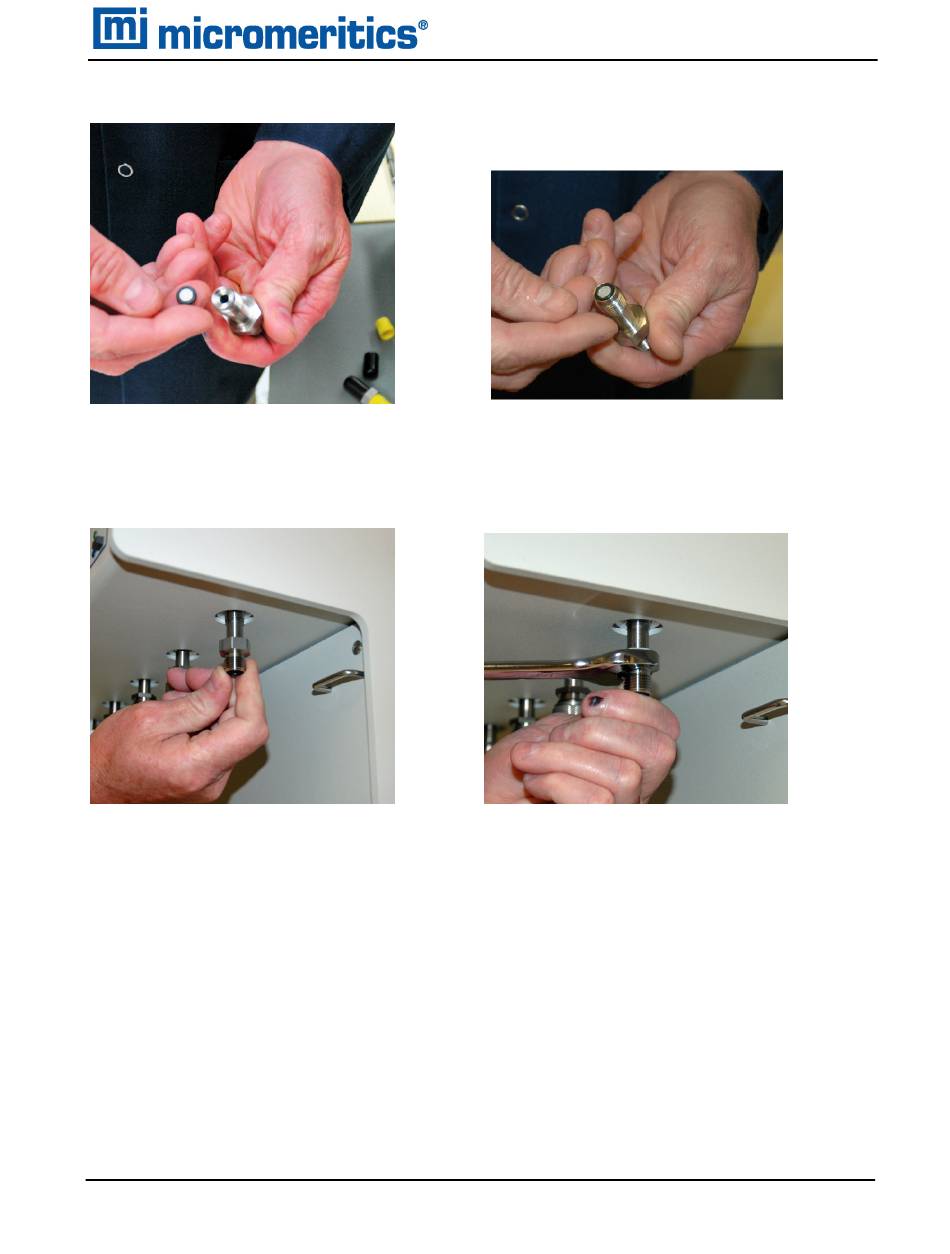

3. Place a Seal Frit in the long end of the VCO adapter.
4. Insert the long end of the Fitting VCO adapter into the Smart VacPrep degas port. Hand
tighten the connector nut by turning the adapter clockwise. Tighten again with a 3/4 in.
wrench. Do not overtighten.
A HPVA S
TTACH AN
Refer to the HPVA Operator Manual [part number P02-42806-00] for detailed instructions on
attaching the HPVA sample tube to the Smart VacPrep.
S V P
MART AC REP
Although the power entrance appears to need fuses, they have been superseded by the circuit
breaker. Fuses are therefore not necessary.
Smart VacPrep Operator Manual
067-42801-01 (Rev A) — June 2022

Attach an HPVA Sample Tube to the Smart VacPrep

T
AMPLE UBE TO THE
F
USE
S V P
MART AC REP
6 - 11
