Morel Harmony Series HD 20 Instruction

HARMONY BRICK WALL MOUNTING CABINET

SD20 / HD20

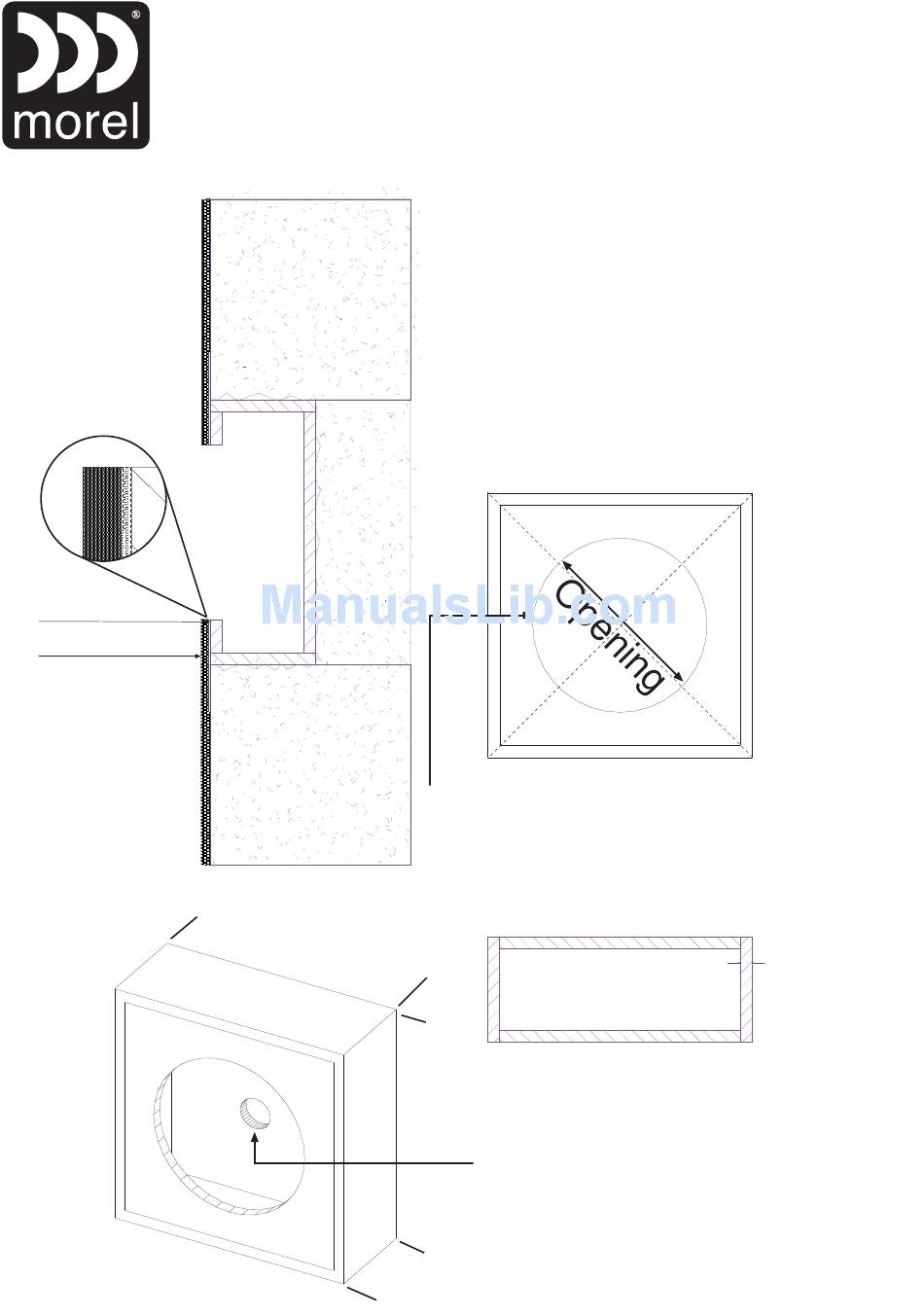

SIDE VIEW / ILLUSTRATION NO 1
Plaster net
Plaster & Paint
BRICKS
264mm
WIDTH
264mm
HEIGHT
105mm
DEPTH

MATERIALS

12 mm playwood
Plaster net
INSTRUCTION
A. Cabinet must be mounted flush with the naked wall (as
seen in illustration 1).
B. To avoid creaks in the finished wall or paint use plasterer
net (as seen in illustration 1).
FRONT VIEW / ILLUSTRATION NO 2
Trim 174mm diameter cutout.
TOP VIEW / ILLUSTRATION NO 3

CABLES INLET

Make a hole 35 - 50 mm
in diameter for the speakers cables.
174mm
Dim.
12 mm
playwood
