Page 1: Installation Instructions
Owner's Manual Owner's Manual Installation Instructions Installation Instructions SoundSpot SoundStand ST-90, ST-95 SoundCenter SoundSub IS-9A, RS-91A, RS-10A SoundSub RS 91-P... -
Page 2: Table Of Contents
Contents Important Notes The SoundSpot Range SoundSpot SoundStand ST-90, ST-95 SoundCenter SoundSub IS-9A, RS-91A, RS-10A SoundSub RS 91-P... - Page 3 Thank you for choosing Morel loudspeakers Your speakers have been handcrafted by Morel from the highest- quality materials and components. Utmost attention and care have been devoted to every detail of the design and construction, to ensure your long-lasting enjoyment of the product.
-
Page 4: The Soundspot
The SoundSpot Home Theater Range APPLAUSE Five SoundSpot SA-2, SoundSub IS-9A SUPRA Four SoundSpot SA-2, SoundCenter C-5, SoundSub IS-9A VITRA Two SoundSpot SA-2 front, Two SoundSpot SI-2 rear, SoundCenter C-5, SoundSub IS-9A SPIRO Four SoundSpot SI-2, SoundCenter C-5, SoundSub IS-9A EVIT Two SoundSpot BI-2 front, Two SoundSpot... -
Page 5: Soundspot
For a more full-bodied, dynamic sound across the entire frequency range, we recommend that you include Morel's subwoofer in your system. Speaker Placement The SoundSpot speakers offer many installation possibilities - they can be wall-mounted (fig. - Page 6 Mounting the SoundSpot Speakers Snap on the rubber footing The SoundSpot speakers are equipped with a pivoting base that turns 180°. To change the orientation of the base, to best conceal the base in the selected mounting option, loosen the screw that locks the base position (located under the base), rotate the base a full 180°...
- Page 7 1/4” To mount your SoundSpot speaker on a ceiling or wall, first choose the location of the speaker and mark the precise spot where you will drill a hole to line up with the hole in the speaker base. Next drill a hole in the wall using a 7mm (1/4”) bit, and insert the plastic plug.

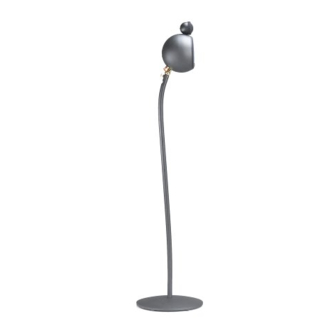

- Page 8 SoundSpot ST-90, ST-95 Installation Instructions (optional units) ST-95 Carefully fasten the tapered tube to the base. Make sure that the tube is perpendicular to the base. Do not use mechanical tools or excessive force. If you are unable to screw the tube completely into the base and eliminate the gap between the two parts, simply unscrew the tube and repeat the process with the...
- Page 9 ST-90, ST-95 Slip the speaker cable through the hollow tube, and out of the opening near the top of the tube (under the bolt). ST-90 ST-95 Finally, connect the speaker to the stand by removing the speaker base (fig. A) and inserting the exposed joint into the stand tube (fig.
- Page 10 Amplifier Connection Unplug the electrical connection of the amplifier before making any connections. For each speaker, connect the red or (+) output terminal on your amplifier to the red input terminal on the speaker and connect the black or (-) output terminal on the amplifier to the black input terminal on the speaker.
-
Page 11: Soundcenter
SoundCenter Thank you for choosing Morel's SoundCenter C-5. This high performance center speaker is designed to provide a memorable home theater experience. The center speaker plays a vital role in the home theater system, reproducing most of the front channel information in a movie soundtrack. - Page 12 Unplug the electrical connection of the amplifier before making any connections. Connect the red or (+) centre speaker output terminal of your amplifier to the red input terminal on the speaker, and connect the black or (-) centre speaker output terminal on the amplifier to the black input terminal on the speaker.
-
Page 13: Soundsub
SoundSub IS-9A, RS-91A, RS10A Safety Instructions Read The Instructions Please read all safety and operating instructions carefully before using or connecting your SoundSub subwoofer. Voltage Selector Switch Before operating, adjust the position of the voltage selector switch to 115V or 230V, according to the power supply in your country. - Page 14 Thank you for choosing Morel's SoundSub Subwoofer. The SoundSub RS-91A, RS10A and IS-9A are active subwoofers (IS-9A is built of two 9" woofers), driven by a high- quality amplifier that is AC-3 compatible. Designed to augment the SoundSpot satellite speakers in the low bass frequency...
- Page 15 POWER LINE IS-9A AUTO PHASE CROSSOVER LEVEL HIGH LEVEL IN HIGH LEVEL OUT 230V 115V RS-91A, RS10A LINE PHASE CROSSOVER LEVEL POWER AUTO HIGH LEVEL OUT HIGH LEVEL IN 230V 115V...
- Page 16 2. RCA jacks The input terminals connect to the subwoofer (line level) outputs of an amplifier. The output terminals provide an input bypass for connection to a second subwoofer, or any other purpose. 3. PHASE control The phase control allows phase adjusting of the subwoofer to match that of the other speakers in your home theater system.
- Page 17 7. VOLTAGE SELECTOR switch Before operating, adjust the position of the voltage selector switch to 115V or 230V, according to the power supply in your country. 8. AC outlet Power supplied through this outlet is turned on and off by the POWER switch.
- Page 18 The high level output terminals offer a filtered output for satellite speakers. The filtered output is clear of low frequency signals, thus protecting the satellite speakers from overloading that may damage them. Note that Morel's SoundSpot speakers do not require these exits, and should be connected directly to your amplifier for optimal sound quality (See page 8 for amplifier connection).
-
Page 19: Rs 91-P
SoundSub RS 91-P Thank you for choosing Morel's SoundSub Subwoofer. The SoundSub RS 91-P are passive subwoofers, designed to complement your system in the low bass range, reproducing frequencies below 200 Hz. They are ideal for complementing a stereo system with small speakers, or satellite speakers that are incapable of reproducing the low frequency notes due to their size. - Page 20 Amplifier Connection Before making connections it is advisable to ensure that all AC power cords of the components you are interconnecting are unplugged from the wall outlets during the hookup process. The back panel of the SoundSub subwoofer offers two pairs of inputs, coloured red and black, respectively.
- Page 21 Morel Reserves the right to amend details of the specification without notice in line with technical developments. All rights reserved to morel 2002...
- Page 22 www.morelhifi.com...
