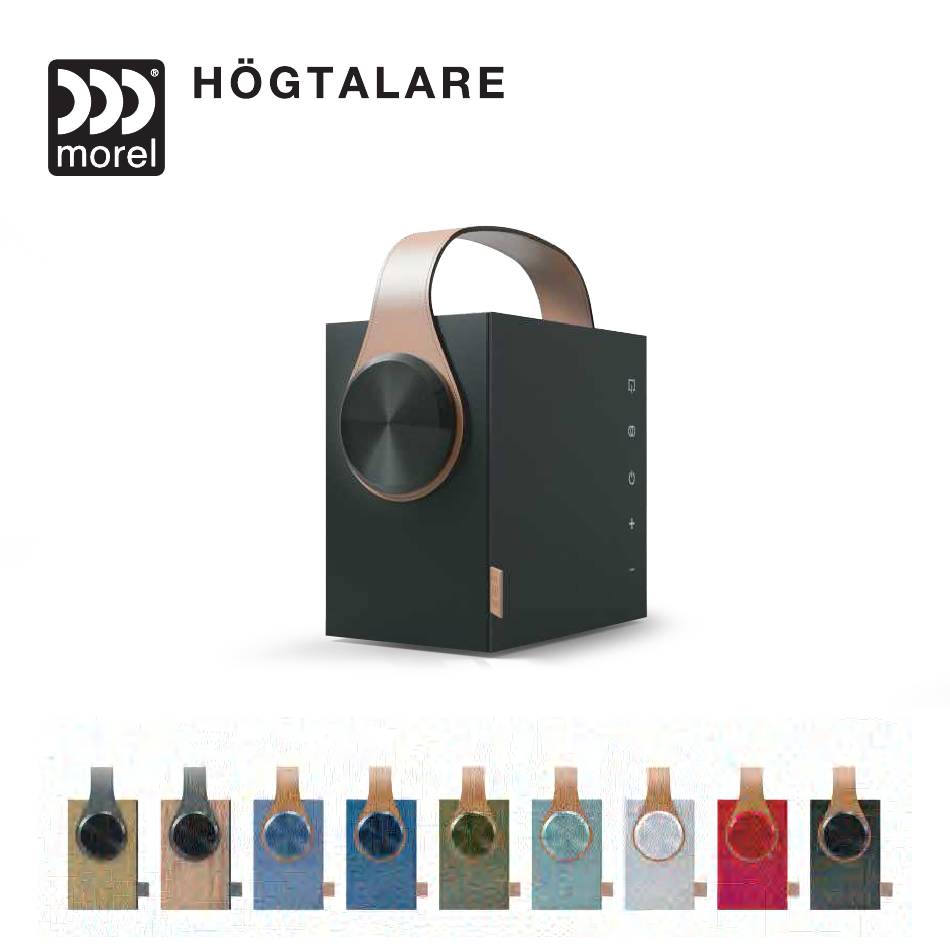

- Page 1 BIGGIE User manual...
- Page 2 Index Important safety instructions Box contents Device layout First power up (turning the device ON \ OFF) Automatic \ Manual power options Choosing your source Connecting via BT (pairing) TWS pairing AUX 3.5mm stereo input Adjusting sound level Using a Wi-Fi dongle Removing/attaching the grill Remove the handle Wall mount option (sold separately)
- Page 3 We urge you to read the manual and consider our guidance in order to achieve optimal performance. It is always recommended to seek the advice of an authorized Morel retailer or contact us directly at info@morelhifi.com for any questions you may have.
-
Page 4: Installation
INSTALLATION • Keep the device away from direct heat (radiators, stoves, kettles, ovens, etc...). • Keep the device away from fire and flames (candles, fireplace, bonfire, etc...). • Do not cover the front speaker grills. • Place the speaker on a flat and stable surface. •... -
Page 5: Important Safety Instructions
Important safety instructions Read the safety and operation instructions before using the product. Follow all the instructions and heed all warnings. Keep the instructions handy for your future reference. WARNING! • WARNINGS - to reduce the risk of fire or electric shock, do not expose the device to water. -
Page 6: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Keep the device away from dustm clean regularly with dry cloth and vacuum cleaner. • All servicing should be done by qualified service personnel. Servicing is required if the device: has been damaged in any way, submerged or soaked in water, does not operate normally, or has been dropped. - Page 7 or more of the following measures: • Reorient the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
- Page 8 CAUTION • Risk of electric shock! Do not open or disassemble the • device. There are no user serviceable parts inside. • Refer servicing to qualified service personnel. • The equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
-
Page 9: Box Contents
Box contents 1. Power cord and interchangeable plugs. 2. Quick start user manual and safety information. 3. Biggie active stereo loudspeaker, handle and grill. -
Page 10: Device Layout
Device layout FRONT BACK 1. Input selection button / indicator 1. USBC power input 2. BT tws pairing button / input indicator 2. Aux input for 3.5mm stereo plug 3. Power button / indicator 4. Sound level up button 5. Sound level down button 6. - Page 11 Interface POWER ON 1. Long press the power button for 2 seconds. 2. BT Mode: all indicators light up. 3. Line in mode: pairing lught off, all lights on. POWER OF 1. Long press the power button for 2 seconds. 2.
-
Page 12: Low Battery Shut Down
LOW BATTERY SHUT DOWN 1. When the battery is lothe power indicator light flashes fast. 2. When the battery is lower than 10% the speaker will shut down. POWER OF 1. Long press the power button for 2 seconds 2. All indicators light off. -
Page 13: Standby Mode
STANDBY MODE 1. After 5 minutes of connection, the speaker will go on stand by, to activate playback 2. Battery output: power button will be on for 1 hour, then will shut down 3. Connected to charger: power button with weaker light is on with no time limit... - Page 14 BT PAIRING-CONNECTING 1. Press the pairing button to enter the BT mode, the device name “Hogtalare Hogtalare Biggie” can be scanned. 2. The Pairing LED will flash quickly, other will be on. 3. When connected to the device, all the lights are on.
- Page 15 AUX MODE SWITCHING 1. Press the source button 2. AUX pairing light off and other lights on BT MODE SWITCHING 1. Press the source button 2. Pairing button flashes quickly other buttons are on 3. Connected: all lights are on...
-
Page 16: Volume Control
VOLUME CONTROL 1. Press + the indicator flash one time 2. Press - the indicator flash one time... - Page 17 TWS PAIR 1. Press on both master and slave the pairing button for 2 seconds 2. Paring led in both speakers will flash 3. Pairing led will be light on for both speakers TWS UNPAIR 1. Press on both master and slave the pairing button for 2 seconds 2.
-
Page 18: Battery Indicator
BATTERY INDICATOR 1. Press the “+” and “-” together for 2 seconds 2. 81%-100% all buttond are off 1 second and light for 3 second (5 buttons) 3. 61%-80% all buttond are off 1 second and 4 from the bottom light for 3 second (4 buttons) 4. -
Page 19: Charging Indicator
CHARGING INDICATOR 1. Insert the power supply 2. Power indicator flashes every 2 seconds 3. When fully charged all lights on... - Page 20 Removing/Attaching the grill Biggie wireless stereo speaker comes with a removable grill that attaches to place with hidden magnets. 1. To remove the grill, gently pull the leather logo tag found at the bottom left side. 2. To place the grill back on, just put the grill into place and the magnets will automatically lock in place.
- Page 21 Removing/Attaching the handle Biggie wireless stereo speaker comes with a removable handle that attaches to place with a screw side circle. 1. To remove the handle, gently unscrew the side circle in each side counterclock direction. After removing the handle, screw the side circle clockwise on both sides.
- Page 22 Wall mount (optional accessory) Biggie wireless stereo speaker can also be wall mounted with a specific designed bracket (sold separately) 1. To add the bracket start by removing the handle (as showed in the “Removing/Attaching the handle” section) 2. Turn the sides tight and the wall mount accessory is fixed clockwise...
-
Page 23: Technical Information
Technical information All specifications are subject to change without prior notice • DRIVER AND BUILD 1 x 4” woofer 1 x 0.9” Soft fome tweeter (LR Stereo) CONNECTIVITY •... - Page 25 UNLEASH THE MUSIC Morel, Ness Ziona, 70400 Israel. Morel America, Chandler, AZ, USA Tel: +972-8-9301161 Toll free number:1-877-667-3511 Fax: +972-8-9301312 Fax: 1-718-721-1560 E-mail: info@morelhifi.com E-mail: info@morelamerica.com w w w . m o r e l h i fi . c o m...
