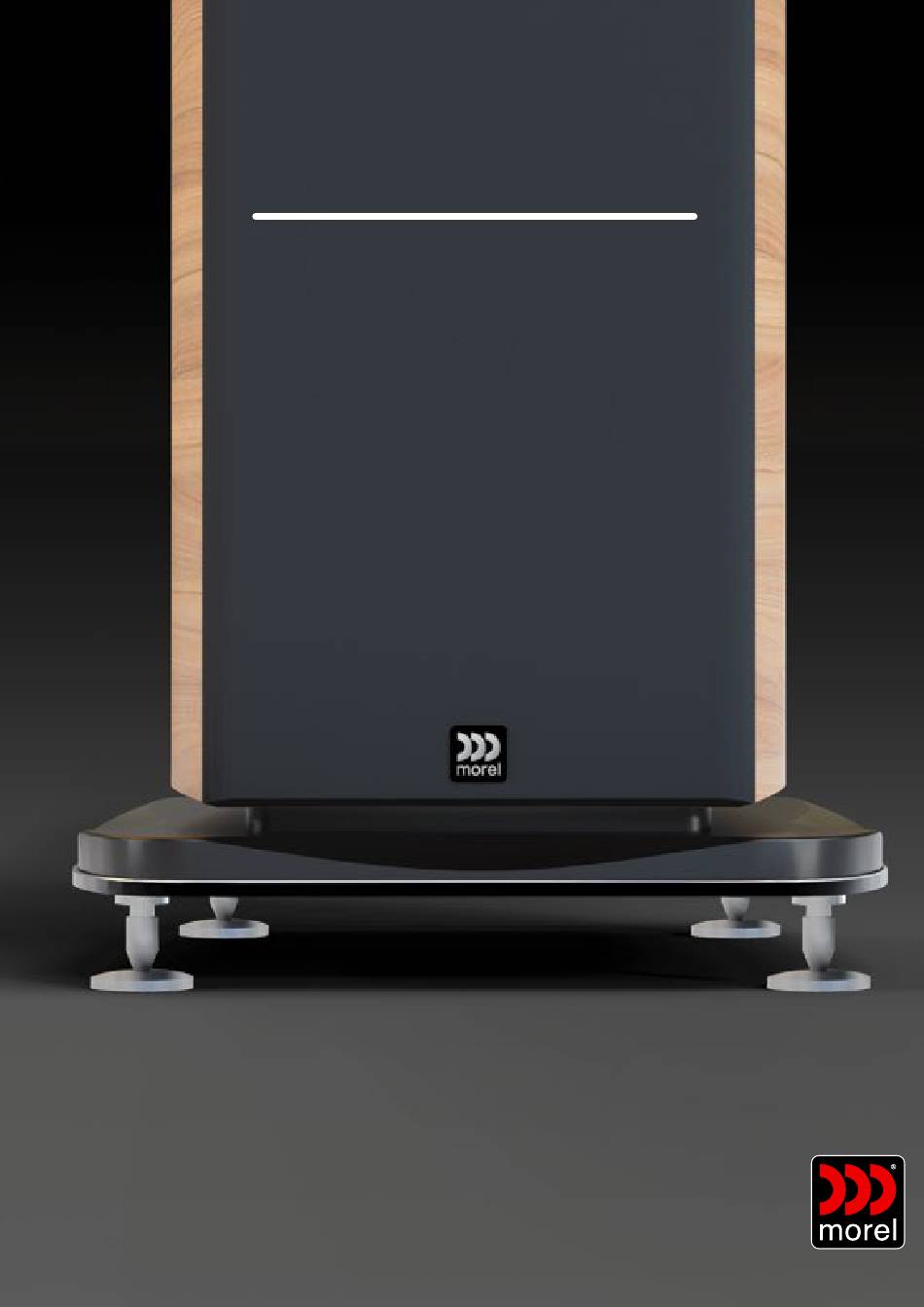

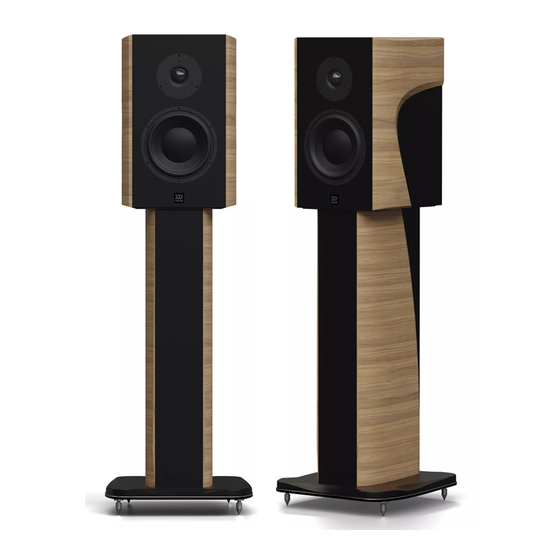

- Page 1 AVYRA USER GUIDE Floorstand 633 Bookshelf 622 Center C5...
- Page 2 Index Warnings Assembly Connecting the Avyra to your equipment Choosing the right amplification Break-in period Set up Spike adjustments Speaker positioning Caring for the Avyra Warranty Specifications...
- Page 3 We urge you to read the manual and consider our guidance in order to achieve optimal performance. It is always recommended to seek the advice of an authorized Morel retailer or contact us directly at info@morelhifi.com for any questions you may have.
- Page 4 7 . Never insert any object to the vent openings in the back of the speaker as it may permanently damage the speaker. 8 . Never try to repair the speaker yourself. Always contact Morel or an authorized dealer for support.
- Page 5 Assembly Unpacking U N L E A S H T H E M U S I C AVYRA F L O O R S T A N D L O U D S P E A K E R Remove the tape and open the carton U N L E A S H T H E M U S I C AVYRA F L O O R S T A N D L O U D S P E A K E R...
- Page 6 Slide up the carton Lay down the speaker without removing the foam protectors...
- Page 7 Slide the middle foam protector to the bottom until it touches the bottom foam protector Remove the bottom foam protector...
- Page 8 Screw the spike (clockwise) to the bottom and repeat for the remaining ones Counterclockwise Clockwise Remove the middle foam protector...
- Page 9 Stand the speaker Remove the top foam protector Place the floor protector under the spikes...
- Page 10 Connecting the Avyra to your equipment MAKE SURE ALL EQUIPMENT IS TURNED OFF BEFORE ATTEMPTING TO CONNECT THE SPEAKERS 1. It is critical to ensure that correct polarity is maintained while connecting the speaker to the amplifier. Black (-) and Red (+) terminals on the amplifiers should be connected to the corresponding terminals on the speaker (refer to diagram A).
-
Page 11: Break-In Period
Note that there are different typologies of amplifiers that have different sound characteristics. Choosing the best amplifier for your needs can be challenging. Morel highly recommends consulting a trusted retailer in the selection process. - Page 12 Set up Before you begin, be aware of objects in the room that may impede the sound from the speakers. When possible, remove or relocate these items prior to setup. Every living space has different acoustic properties. These characteristic properties are determined by the size and shape of the room, reflective and absorbing materials, and openings (doors/windows), and will have an affect how the speaker will perform.
- Page 13 CENTER Front Front speaker speaker Diagram D Positioning of the speaker affects the bass Bass level areas level performance. As a general guidance, placing the speaker closer to the back BACK WALL and/or side walls will increase the bass notes by up to 6dB due to the loading effect created by the proximity to the walls (refer to Diagram E).
- Page 14 Soundstage and imaging are affected by the distance between the speakers and their toe-in position. The balance between the two is critical. Start by listening to the speakers in their initial position (step 1) and then move the speakers outward to position 6, and then inward to 4, etc., while maintaining a stationary listening position.
- Page 15 Speaker Positioning: Home theater Follow the Stereo set up positioning. Place the center channel speaker: the center channel speaker is typically positioned above or below the TV or projection screen. It should be centered and directly facing the primary listening position. If the speaker has an adjustable angle, aim it towards the listener's ear level (refer to Diagram G).
-
Page 16: Warranty
180°. Caring for the AVYRA Morel manufactured the AVYRA using premium raw materials so it would last for many years with minimal maintenance requirements. Morel recommends wiping down the cabinet periodically using only a microfiber cloth. DO NOT USE any detergents, waxes, alcohol or other chemicals to clean the speaker as it may damage the finish. - Page 17 Specifications: Floorstand 3-way 3 drive unit system Type Medium Density Fiber enclosure with black/white/wood Construction finish Acoustical Loading Bass reflex Woofer: 2 x 6" (160 mm) with integrated one piece cone, Drive Units double magnet motor, 3" (75 mm) EVC™ (External Voice Coil) aluminium voice coil.
- Page 18 Specifications: Bookshelf Type 2-way 2 drive unit system Medium Density Fiber enclosure with black/white/wood Construction finish Acoustical Loading Bass reflex Woofer: 1 x 6" (160 mm) with integrated one piece cone, Drive Units double magnet motor, 3" (75 mm) EVC™ (External Voice Coil) aluminium voice coil.
- Page 19 Specifications: Center 2-way 3 drive unit system Type Medium Density Fiber enclosure with black/white/wood Construction finish Acoustical Loading Bass reflex Woofer: 2 x 5" (127 mm) . cone type with integrated one piece Drive Units cone, neodymium double magnet motor, 3" (75 mm) EVC™ (External Voice Coil) aluminium voice coil.
- Page 20 Morel, Ness Ziona, 70400 Israel. Morel America, Chandler, AZ, USA Tel: +972-8-9301161 Toll free number:1-877-667-3511 Fax: +972-8-9301312 Fax: 1-718-721-1560 E-mail: info@morelhifi.com E-mail: info@morelamerica.com w w w . m o r e l h i fi . c o m...
