MobiBlu DAH-1500 User Manual

Cube digital audio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

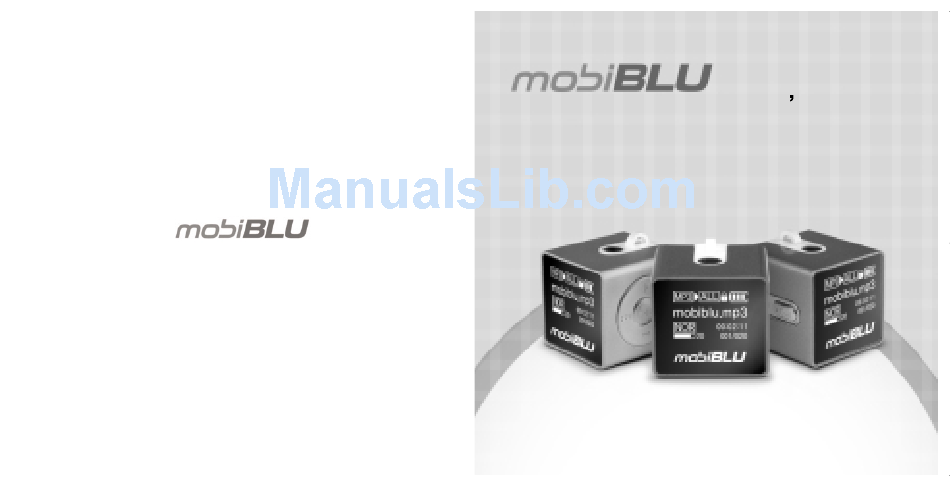

DAH-1500
User s Manual
www.mobiblu.com
CUBE DIGITAL AUDIO PLAYER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAH-1500 and is the answer not in the manual?

Questions and answers

Related Manuals for MobiBlu DAH-1500

Summary of Contents for MobiBlu DAH-1500

  • Page 1 DAH-1500 User s Manual www.mobiblu.com CUBE DIGITAL AUDIO PLAYER...
  • Page 2 View Index Before starting Safety Precautions/ Special Features/ Technical Page 5 Specifications/ Accessories/ Part Specifications/ Buttons/ LCD/ Recharging/ Power/ Connecting to a PC/ Disconnecting the Unit Basic operations Power On-Off / Playing Music Page 23 Convenient Functions Navigation/ Hold/ Page 27 Clock/ Auto Power-off FM Radio FM Radio Function/ Tuning the Radio/...

  • Page 3: Table Of Contents

    MEMO Before Starting Safety Precautions Special Features Technical Specifications Accessories Part Specifications Buttons Recharging Power Connecting to a PC Disconnecting the Unit...

  • Page 4: Safety Precautions

    Safety Precautions Avoid humidity and Do not dust. disassemble or modify the product. Keep unit away Do not drop the unit. from heat and direct sunlight. Using chemical or Do not touch other cleansers with wet may damage the hands. unit’s surface.

  • Page 5: Built-In Battery

    Safety Precautions Safety matters for AC Adaptor To avoid shock do not open the unit. Non-insulated parts in the AC adaptor may cause electric shock. Don t open the adaptor case. Carefully read the manual for instructions on proper use of the AC adaptor. Warning! Prevent the AC adaptor from contacting water to avoid fire or electric shock.

  • Page 6: Special Features

    Special Features World’s smallest Mp3 Player Super compact size (24*24*24mm) and weighs only 18 grams! A fully featured MP3/audio player that fits in the palm of you hand! OLED Display The latest in display technology provides superior sharpness and brilliance over standard LCDs.

  • Page 7: Technical Specifications

    Technical Specifications Functions Items Specifications FM Frequency Range 87.5 MHz ~108.0MHz Headset Output Max. 7mW (16 ) Max Volume FM Tuner S/N Ratio 50dB Antenna Headset/earphone antenna Frequency 20Hz ~ 20KHz Characteristics Headset Output Max. 15mW (16 ) Max Volume Audio S/N ratio 90dB...

  • Page 8: Part Specifications

    Part Specifications Front Necklace Link pin LCD screen Bottom Earphone jack/ USB jack Necklace Link pin Part Specifications Sides Reset button Necklace Link pin Power/ Play/ Pause FF/ REW/ VOL+/ VOL- Necklace Link pin MENU/ Navigation Hold/ Clock button...

  • Page 9: Buttons

    Buttons Power ON/OFF File Play/ Pause Move to Submenu/ Menu Set-value Save Searching Previous/Next File Move to Left/Right Menu Move to Navigation sub/preceding Folder Volume Up/Down Move to Upper/lower Menu Move to Navigation sub/preceding folder or file Move into Menu/ Navigation Mode Move to preceding Menu Hold Clock View...

  • Page 10: Recharging

    Recharging 1. To recharge the battery use the USB cable to connect the unit to the PC. 2. LCD screen shows the icon change from when it is fully recharged. Note! It takes approx 3 hours to completely recharge a fully discharged battery. Recharging is not interrupted while downloading/uploading files from/to PC.

  • Page 11: Connecting To A Pc

    Any unexpected error can be happened when connecting to the USB port in front of PC or USB hub. Windows version 98SE or lower will not detect the DAH-1500 as a peripheral device.To have your PC detect the player Install the Program CD supplied.

  • Page 12: Basic Operations

    Disconnecting Click “OK” on “Safe To Remove Hardware” window and remove the cable. Disconnecting with Windows 98SE Open “My Computer” or Windows “Search”. Select “Removable Disk”. Using the right mouse button select “Remove”. Remove the USB cable. Note! Removing the cable without following the instructions above will display a warning message and may cause a fatal error in PC or the product.

  • Page 13: Playing Music

    Power ON/OFF Turn Power ON Press and hold the play/pause button to turn the power on. Note! When the battery needs recharging the LCD will display the ‘Battery Low’ icon. Recharge the battery when LCD is not activated. Turning Power OFF Press and hold the play/pause button to turn the unit off.

  • Page 14: File Selection

    Playing Music File Selection While playing music file Press the file selection buttons once to skip to the next or previous file and the file will play. When music is paused Press the file selection buttons to skip to the next /previous file without playing the file.

  • Page 15: File Navigation

    File Navigation Example) play file “bye bye” : Press and hold the “Menu” button to access the player’s main menus. Choose Hyun Folder and press the “Fast Forward” button. Note! Press the “Rewind” button to move to upper-level folders. Press Select bye bye.mp3 mode.

  • Page 16: Auto Power Off

    Time Time verification Auto Power OFF Press once to view the current time. Press the button again to exit. Note! Set the time by pressing the “Menu” button until you reach “Etc Set”. Then select the “Set Time” option. (See page 52 for more details) Auto Power OFF Auto Power OFF When the earphone has not been connected for a...
  • Page 17 MEMO FM Radio FM Radio Function Tuning the Radio Saving Station Frequencies Preset Mode Deleting Frequencies...

  • Page 18: Tuning The Radio

    FM Radio Function Listening to the FM Radio Entering FM mode you Press Press can listen to the radio! Note! The earphone also acts as the radio antenna. Local frequency ranges vary globally. Mono/Stereo Press Press Press Tuning the Radio Tuning in Radio Frequency Searching for Radio Channels in FM search mode to increase/decrease frequencies...
  • Page 19 Saving FM Frequencies Manual Channel Save Press Note! Channels can be saved in Preset No. 1 through to 20. Press in auto frequency search to stop saving station frequencies. Auto Channel Save Press Press Press Note! Press in auto frequency search to stop searching for stations. Saving FM Frequencies Preset Stop Level When searching frequencies by pressing the button to FF/REW direction the...

  • Page 20: Deleting Frequencies

    Preset Mode Entering Preset Mode Press Press Press Note! You can access the station frequencies you save by entering Preset Mode. Preset Search In FM Preset Mode Note! in FM Preset Mode to Preset search is not available if there increase/decrease the are no channels saved.
  • Page 21 MEMO Menus Menu List Menu Buttons Mode Change Music Set Display Etc Set...

  • Page 22: Menu List

    Menu List Menu List Menus available in the product are as follows Menu List Menu List Main menu Sub menu There are five main menus. There are sub menus, Set menu under each main Each menu contains sub menus. menu. Set menu...

  • Page 23: Menu Buttons

    Menu Buttons Menu Button Functions 1. View Menus Press 2. Searching Menus 3. Entering Sub Menus, Set menu Press Press 4. Modifying & Saving Set Value Menu Buttons Menu Button Functions 5. Returning to preceding Menus (Main or Sub) Press and hold Example) Set brightness to 7 in ‘Contrast’...

  • Page 24: Mode Change

    Menu (Mode Change) Music Selelct ‘Music” from the main menu. FM Radio Select FM Radio from the main menu. Music Set Select “ Music Set ” from the main menu. Equalizer Select “Equalizer” to select an equalization mode suited to the genre of music you want to play (i.e.

  • Page 25: Play Mode

    Music Set Play Mode In ‘Play Mode’ you can select how you want to play your files (i.e. Repeat all files, Repeat files in the folder, Random play in sequence, Random play in the folder). All Repeat : all music files are repeatedly played in sequence. Folder Repeat : music files in current folder are repeatedly played in sequence.

  • Page 26: Display

    Display Choose Display from the main menu Backlight On Time It enables you set backlighting periods of LCD among 5, 15, 30 seconds and always ON. Contrast This function let you set the brightness of LCD from 1 to 10 levels. Language You can select preferable language of English, Korean or Chinese.

  • Page 27: Etc Set

    Etc Set Select Etc Set from the main menu OS Ver The function shows unit firmware information (‘OS’). Memory Displays Total memory, Used memory, and Free memory. Set Time Select ‘Set Time’ to set the time, day, date, month and year. Band Move Note! Press the...
  • Page 28 MEMO Program Installing the Program CD Downloading/ Uploading Files Format...

  • Page 29: Downloading/ Uploading Files

    The unit downloads or uploads all types of data files ( . jpg, . xls, . hwp, ...). It functions as a removable disk as well as an MP3 player. To download files connect USB cable, select your file and right click on...
  • Page 30 Downloading/ Uploading Files Downloading or uploading files Click on “Paste” in ‘Removable Disk’ window using right mouse button. Note! Your PC will identify your cube as a removable disk under ‘My Computer’. Do not remove the USB cable while transferring files. Doing so may cause fatal error in the PC or player.
  • Page 31 Format Format Note! Deleted files cannot be recovered after the device has been formatted! Select “Format” by right clicking on the ‘removable disk’ folder in PC Windows. Format Format Click on “Start” when the format window pops up. Check if file system is set for FAT32 Be very careful at format! Formatting completed.
  • Page 32 MEMO Support Troubleshooting Warranty Card...

  • Page 33: Troubleshooting

    Troubleshooting Troubleshooting Unit will not turn ON? Check the battery capacity. Recharge the battery with USB cable. Check to see if the unit is on HOLD. Buttons are not working? Check to see if the unit is in Hold Mode. Troubleshooting Troubleshooting Files are heard with a lot of interference?

  • Page 34: Fcc Rf Interference Statement

    Troubleshooting Troubleshooting Problems downloading files? Check USB cable connection. Check available memory capacity. LCD is not activated? Check LCD brightness setting (Menu> Display> Contrast). Check the battery. Recharge it with a USB cable if needed. FCC RF INTERFERENCE STATEMENT Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 35: Warranty Card

    Warranty Card Product Name: Model: Date of Purchase: Name of Customer Telephone Number: Address: Name of Agent: Telephone Number: Address: You need to present this Warranty Card with the date of purchase written thereon when required in order to receive satisfactory services. Please keep this card in a secure place. 1.
