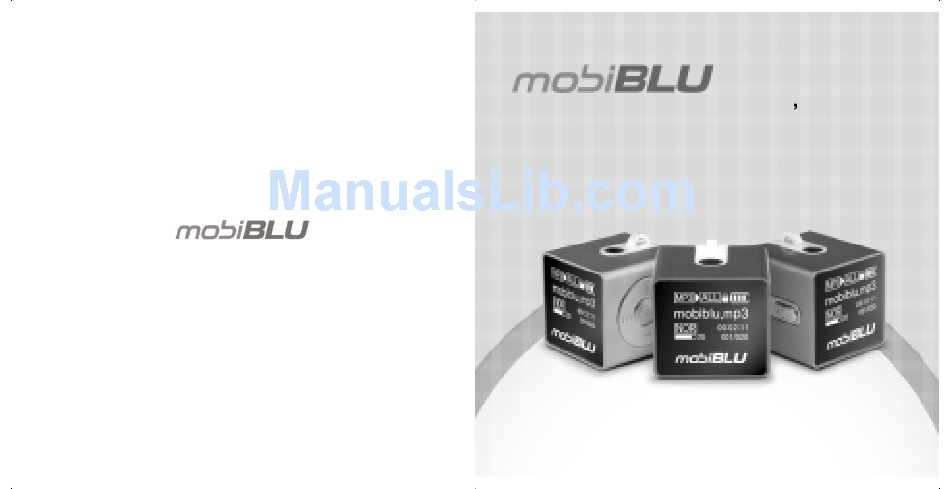

- Page 1 DAH-1500S User s Manual www.mobiblu.com CUBE DIGITAL AUDIO PLAYER...
- Page 2 View Index Before starting Safety Precautions/ Special Features/ Technical Page 5 Specifications/ Accessories/ Part Specifications/ Buttons/ LCD/ Recharging/ Power/ Connecting to a PC/ Disconnecting the Unit Basic operations Power On-Off / Playing Music Page 23 Convenient Functions Navigation/ Hold/ Page 27 Clock/ Auto Power-off View Index Menus...
-
Page 3: Table Of Contents
MEMO Before Starting Safety Precautions Special Features Technical Specifications Accessories Part Specifications Buttons Recharging Power Connecting to a PC Disconnecting the Unit... -
Page 4: Safety Precautions
Safety Precautions Avoid humidity and Do not dust. disassemble or modify the product. Keep unit away Do not drop the unit. from heat and direct sunlight. Using chemical or Do not touch other cleansers with wet may damage the hands. unit’s surface. -
Page 5: Built-In Battery
Safety Precautions Safety matters for AC Adaptor To avoid shock do not open the unit. Non-insulated parts in the AC adaptor may cause electric shock. Don t open the adaptor case. Carefully read the manual for instructions on proper use of the AC adaptor. Warning! Prevent the AC adaptor from contacting water to avoid fire or electric shock. -
Page 6: Special Features
Special Features World’s smallest Mp3 Player Super compact size (24*24*24mm) and weighs only 18 grams! A fully featured MP3/audio player that fits in the palm of you hand! OLED Display The latest in display technology provides superior sharpness and brilliance over standard LCDs. -
Page 7: Accessories
Technical Specifications Functions Items Specifications Frequency 20Hz ~ 20KHz Characteristics Audio Headset Output Max. 15mW (16 ) Max Volume S/N ratio 90dB MP3, WMA File format Supporting Files MP3 : 8~320Kbps, Bit rate WMA : 32~192Kbps Download speed 6Mbps (USB Ver 1.1) Max. -
Page 8: Part Specifications
Part Specifications Front Necklace Link pin LCD screen Bottom Earphone jack/ USB jack Necklace Link pin Part Specifications Sides Reset button Necklace Link pin Power/ Play/ Pause FF/ REW/ VOL+/ VOL- Necklace Link pin MENU/ Navigation Hold/ Clock button... -
Page 9: Buttons
Buttons Power ON/OFF File Play/ Pause Move to Submenu/ Menu Set-value Save Searching Previous/Next File Move to Left/Right Menu Move to Navigation sub/preceding Folder Volume Up/Down Move to Upper/lower Menu Move to Navigation sub/preceding folder or file Move into Menu/ Navigation Mode Move to preceding Menu Hold Clock View... -
Page 10: Recharging
Recharging 1. To recharge the battery use the USB cable to connect the unit to the PC. 2. LCD screen shows the icon change from when it is fully recharged. Note! It takes approx 3 hours to completely recharge a fully discharged battery. Recharging is not interrupted while downloading/uploading files from/to PC. -
Page 11: Connecting To A Pc
Connecting to a PC Note! What s USB (Universal Serial Bus)? This is a new connection system between PC and peripheral devices. Connect the USB cable supplied with the product into a USB port in PC. Any unexpected error can be happened when connecting to the USB port in front of PC or USB hub. -
Page 12: Basic Operations
Disconnecting Click “OK” on “Safe To Remove Hardware” window and remove the cable. Disconnecting with Windows 98SE Open “My Computer” or Windows “Search”. Select “Removable Disk”. Using the right mouse button select “Remove”. Remove the USB cable. Note! Removing the cable without following the instructions above will display a warning message and may cause a fatal error in PC or the product. -
Page 13: Playing Music
Power ON/OFF Turn Power ON Press and hold the play/pause button to turn the power on. Note! When the battery needs recharging the LCD will display the ‘Battery Low’ icon. Recharge the battery when LCD is not activated. Turning Power OFF Press and hold the play/pause button to turn the unit off. -
Page 14: File Selection
Playing Music File Selection While playing music file Press the file selection buttons once to skip to the next or previous file and the file will play. When music is paused Press the file selection buttons to skip to the next /previous file without playing the file. -
Page 15: File Navigation
File Navigation Example) play file “bye bye” : Press and hold the “Menu” button to access the player’s main menus. Choose Hyun Folder and press the “Fast Forward” button. Note! Press the “Rewind” button to move to upper-level folders. Press Select bye bye.mp3 mode. -
Page 16: Auto Power Off
Time Time verification Auto Power OFF Press once to view the current time. Press the button again to exit. Note! Set the time by pressing the “Menu” button until you reach “Etc Set”. Then select the “Set Time” option. (See page 43 for more details) Auto Power OFF Auto Power OFF When the earphone has not been connected for a... - Page 17 MEMO Menus Menu List Menu Buttons Music Set Display Etc Set...
-
Page 18: Menu List
Menu List Menu List Menus available in the product are as follows Menu List Menu List Main menu Sub menu There are five main menus. There are sub menus, Set menu under each main Each menu contains sub menus. menu. Set menu... -
Page 19: Menu Buttons
Menu Buttons Menu Button Functions 1. View Menus Press 2. Searching Menus 3. Entering Sub Menus, Set menu Press Press 4. Modifying & Saving Set Value Menu Buttons Menu Button Functions 5. Returning to preceding Menus (Main or Sub) Press and hold Example) Set brightness to 7 in ‘Contrast’... -
Page 20: Music Set
Music Set Select “ Music Set ” from the main menu. Equalizer Select “Equalizer” to select an equalization mode suited to the genre of music you want to play (i.e. Normal, Rock, Jazz, Pop, Classic, Live, User Set). User Equalizer Customize the equalization by selecting Music Set>User Equ>Base/Treble. -
Page 21: Audio Boost
Music Set Audio Boost With Audio Boost you can enjoy enhanced sound with increased power output. Off : Files play at normal volume and power output. On : Files play at higher volume with higher power output. Note! Since Audio Boost uses more power it consumes battery life quicker than normal mode. -
Page 22: Etc Set
Display Use ID3 The function enables you set music file information (File name, ID3 info) displayed on LCD. ‘USE ID3’ allows you to enter additional information about your saved files. File Name : Displays file names ID3 Tag : Displays ID3 tags instead of file names Note! Files with no ID3 tag info displays file names only. -
Page 23: Sleep Mode
Etc Set Auto Power Off Using this feature while the unit is paused or stopped allows you to set the unit to turn off automatically after a set time (30 seconds/ 1minute/ 2minutes/ 5minutes/ 10minutes or disabled) while playing as long you don’t touch the controls otherwise. Sleep Mode You can set the power to automatically turn off after a set period of time (10/ 20/ 30/ 60 minutes or disabled). -
Page 24: Downloading/ Uploading Files
The unit downloads or uploads all types of data files ( . jpg, . xls, . hwp, ...). It functions as a removable disk as well as an MP3 player. To download files connect USB cable, select your file and right click on... - Page 25 Downloading/ Uploading Files Downloading or uploading files Click on “Paste” in ‘Removable Disk’ window using right mouse button. Note! Your PC will identify your cube as a removable disk under ‘My Computer’. Do not remove the USB cable while transferring files. Doing so may cause fatal error in the PC or player.
- Page 26 Format Format Note! Deleted files cannot be recovered after the device has been formatted! Select “Format” by right clicking on the ‘removable disk’ folder in PC Windows. Format Format Click on “Start” when the format window pops up. Check if file system is set for FAT32 Be very careful at format! Formatting completed.
- Page 27 MEMO Support Troubleshooting Warranty Card...
-
Page 28: Troubleshooting
Troubleshooting Troubleshooting Unit will not turn ON? Check the battery capacity. Recharge the battery with USB cable. Check to see if the unit is on HOLD. Buttons are not working? Check to see if the unit is in Hold Mode. Troubleshooting Troubleshooting Files are heard with a lot of interference? -
Page 29: Fcc Rf Interference Statement
Troubleshooting Troubleshooting LCD is not activated? Check LCD brightness setting (Menu> Display> Contrast). Check the battery. Recharge it with a USB cable if needed. FCC RF INTERFERENCE STATEMENT Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 30: Warranty Card
Warranty Card Product Name: Model: Date of Purchase: Name of Customer Telephone Number: Address: Name of Agent: Telephone Number: Address: You need to present this Warranty Card with the date of purchase written thereon when required in order to receive satisfactory services. Please keep this card in a secure place. 1.
