Summary of Contents for MobiBlu DAH-1000

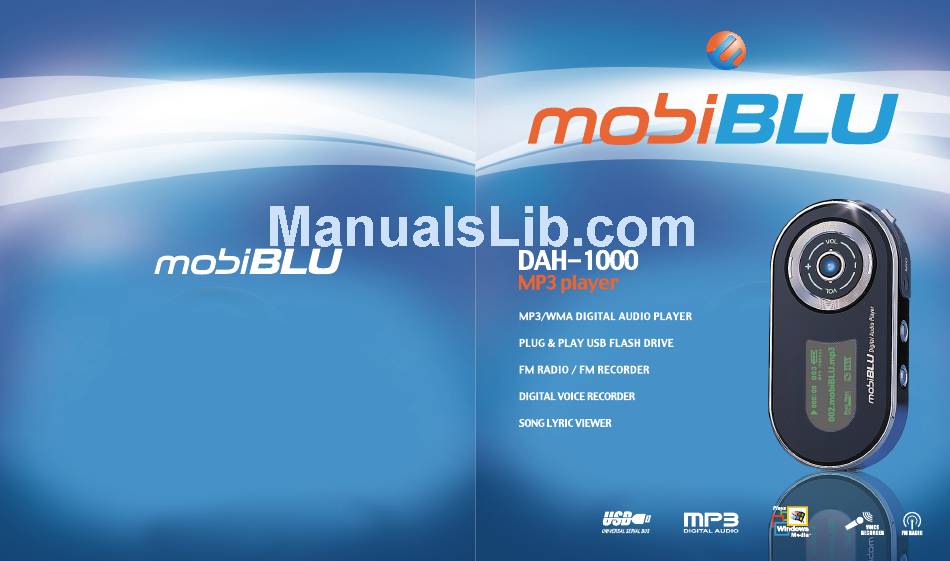

- Page 1 P/N : SAF100M0B3 User Manual www.mobiblu.com...
-
Page 2: Safety Warnings And Cautions
Safety Warnings and Cautions ✽ Please be aware of these safety instructions and use the product properly in order to prevent risks of injury or damages. Avoid exposing the product to direct Avoid placing the product under high sunlight (High temperatures applied moisture or dust level (It cause damage to the product may cause damage.) to the product.) -
Page 3: Special Features Of The Product
Safety Warnings and Cautions Do not use any chemical or detergent Keep the product away from areas for cleaning the products as it may where extreme vibrations or discolour or strip the product surface. magnets exist. Do not press on the LCD panel with Never disassemble, repair or rebuild. -
Page 4: Table Of Contents
Contents My Multiformat Digital Audio Player What is a Digital Audio Player? Product Specifications PC System Requirements and Accessories Hardware Descriptions About Power Supply Software Installation Connecting the Player to a PC using a USB Cable Separating the USB cable from the Player File Download/Upload OS Update &... -
Page 5: What Is A Digital Audio Player
What is a Digital Audio Player? What is a MP3 file? MP3 stands for MPEG1-Layer3 and it uses a compression technology that converts conventional CD music data into an MP3 file format that is used on a PC, at 1/12 compression ratio. -
Page 6: Pc System Requirements And Accessories
PC System Requirements and Accessories PC System Requirements and Accessories • PC system requirements for the product are as follows: •Microsoft OS (Windows 98, ME, 2000, XP) •CD-ROM Drive •Pentium 200MHz or higher CPU •32MB (64MB for Windows ME or 2000) or higher RAM •Available hard disk space of more than 128 MB •(Additional hard disk space is required for storing music files) •USB port available (Rear port highly recommended) -
Page 7: About Power Supply
About Power Supply Using cylindrical AAA type batteries ❶ ❷ Open the battery case cover on the back by pushing the tip in the direction Insert an AAA battery with correct polarity of arrow using a finger / fingernail. positions as shown in the picture ❹... -
Page 8: Software Installation
Software Installation Please Note! - Recognized as a mass storage, the player can upload and download files without a separate software installation. - To mark your lyrics, follow the installation instructions. ※For Windows 98SE users: install the software first before using the player. (Otherwise, the player cannot be recognized as a mass storage device on your PC.) The installation will start automatically as soon as the CD is inserted, showing a pop-up screen asking you to... -
Page 9: Connecting The Player To A Pc Using A Usb Cable
Software Installation Verify if the Menu “Start Program DAH-1000 MP3 Player” has been created as in the following diagram. Connecting the Player to a PC using a USB Cable Connect one end of the ‘supplied’ USB cable to one of... - Page 10 Disconnecting the USB cable from the Player Before disconnecting the USB cable from the PC, double click on the green arrow icon on the toolbar located at the bottom right of the screen. Double Click! Double Click! Double Click! Double Click! Double Click! Double Click! Double Click!
-
Page 11: File Download/Upload
File Download/Upload Please Note! ◆ As well as playing music, you may also use the product to upload/download any other data files (*.jpg, *.xls, *.doc,….) to/from the PC as a portable disk. Connect the product to the PC using the USB cable and select the files you would like to transfer to the unit then click the right button on your mouse and select ‘Copy’... -
Page 12: Os Update & Format
File Download/Upload File copy has now been completed as shown below. Please Note! ● To upload and save the file to the PC the same method is used, just select the player as the source drive. ● Drag & drop the file using a mouse when downloading/uploading a file. - Page 13 OS is an internal operating system to drive the product. Click on “Start Programs Lyrics Manager Software DAH-1000 DAH-1000 Update” subsequently. OS Update & Format Click on “Start” button from the OS update window which appears about 10 seconds later to complete the OS Update and “Close”.
-
Page 14: Names And Functions Of The Parts
OS Update & Format About the Format Be Careful before formatting the product, ALL files will ◆ be deleted. Format with OS Update ◆ Refer to OS Update on page 18~19. Check in the blank of “Format Data Area” Click the “Start” button to format the product and update the OS at the same time. - Page 15 This shows music files in a folder selected from the folder list. Lyrics Marking ◉Marking My Own Lyrics This function marks your own lyrics directly to music files. Click on “Start Programs Lyrics Manager Software DAH-1000 Lyrics Manager” subsequently. Select the model before you mark the lyrics. Click! Click! Click!
- Page 16 Lyrics Marking Find a folder that has music files from the folder list. Select the files you want to mark, and click [EDITOR] button. Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click! Click!
- Page 17 Lyrics Marking Set up the time by pressing the space bar on the keyboard or clicking the [SET SYNC] button. When the SYNC Setting is completed, click the “Marking” button to finish it. Lyrics Marking After the lyrics marking is completed, the music files will be displayed as “Marking”...
- Page 18 Lyrics Marking ◉Modifying Lyrics and Time This function modifies the time and lyrics of the files that are marked. Select the music files from the file list and click the [EDITOR] button. Double-click the part of the lyrics that needs to be modified, and adjust the corrections.
- Page 19 Lyrics Marking After the modification is completed, click the “Marking” and finish the marking. Modifying Entire Time You can adjust the entire time of the lyrics both backward and forward with a regular interval. Select music files from the file list and click [EDITOR]. Lyrics Marking Enter a time interval you want from the Preview window and modify it with [-, +] button.
-
Page 20: Lcd Display Illustration
LCD DISPLAY Illustration MUSIC MODE a. Displays music titles and the sequence b. Displays the current music status (Play Pause c. Displays the current play time of the music d. Displays the file format e. Displays the total number of tracks f. -
Page 21: Music Listening
Music Listening Music Playing Press the play button( ) to play the music at Stop or Pause status. Note! The blue LED on the product flashes when either music or voice files are playing. - It also blinks during LED Time setting. (See page 42) Pause While playing music, push the Play button( )briefly to stop the music temporarily. -
Page 22: Music Selection
Music Selection By briefly pressing the FF button : The next song will be selected in Play or Stop mode. By continuously pressing FF button : In Stop Mode Fast forward searching all Fast forward searching in the songs Music Selection In Play Mode current song. -
Page 23: Hold (Lock Function)
HOLD (Lock Function) ● HOLD(Lock) is set with a padlock icon displaying for 3 seconds on the LCD when you slide the HOLD switch on the back of the products as shown below. ◆ When HOLD mode is applied, no other button will be recognized when pressed. -
Page 24: Voice Recording
Voice Recording Please Note About the recording... ◆ The voice recording starts when you push and hold the REC/ A-B button. ◆ To record from the FM radio… Record the sound source in the FM Mode. ◆ To record Voice… Record the voice source in the Music or Voice Mode. - Page 25 Voice Recording By pressing the Play button again, the saved recorded file will be played. ※ The functions for Play/Stop/Volume Control/ FF, REW are the same as in the MUSIC Playing MODE. Voice Recording Please Note! ● You can only listen to the saved file after entering Voice Recording Mode.
-
Page 26: Fm Radio Mode
FM RADIO MODE Push and hold the MODE button. Note! The earphone takes the roll of radio antenna. Press the MENU button after moving to FM Mode using FF/REW button to listen to FM Radio. A pink LED flashes when playing the FM radio. It also blinks when setting the LED time. -
Page 27: Storing The Selected Frequency
Storing the Selected Frequency Storing the searched frequency manually Using the FF/REW button you can store the searched frequency after entering to FM Preset MODE by pressing the MENU button briefly after selecting the “Manual Preset”. Using the FF/REW button, briefly press the MENU button after selecting “Preset No.”... - Page 28 Storing the Selected Frequency Press the MENU button once again briefly after selecting “Auto Preset” from the FM Preset MODE using the FF/REW button. Press the MENU button briefly once again to store the selected frequency after selecting “Yes” from Auto Preset MODE using FF/REW Button.
-
Page 29: Recording Mode
MENU Setting Please Note! To select and save the Menu - MENU Selection: Press the MENU button briefly after selecting the desired option using FF/REW button. - Storing Menu Setting: Press the MENU button for a longer period after setting the Menu. - Menu Cancellation: Press “REC/A-B”... - Page 30 MENU Setting Display Select “Display” from the MENU Mode. ◆Contrast The brightness of the screen can be set in Contrast, within the range of 1 to 11. ◆Back Light Time Back Light duration time can be set within the range of 0 to 15 seconds. MENU Setting ◆LED Time The function enables to set the duration of LED flashes (Disable...
-
Page 31: Sleep Mode
MENU Setting Timer Select “Time” from the MENU Mode. ◆Automatic power save mode It is possible to select the automatic power save time for non usage (Disable/1 min/2 min/3 min/10 min) in Pause/Stop status. - Disable: The power will not turn off automatically. ◆Sleep Mode It is possible to select the Sleep Mode to turn the power off automatically after a preset time. - Page 32 MENU Setting Select EQ Select “Select EQ”from the MENU Mode ◆Select EQ You can select your desired EQ mode from the following preset and user options (NOR->ROCK->JAZZ->CLSS->POP->USER EQ1->USER EQ2) User EQ Select “User EQ” from the MENU Mode ◆User EQ The product supports two USER EQ MODE 1) Select the Band you want to control using the FF/REW button.
-
Page 33: Setting For Ranged Repeat
MENU Setting About (Specification of the product) Select “About” from the MENU Mode ◆About This function enables you to display the OS version, full memory capacity and the remaining capacity of the product. Please Note! Displays OS version currently installed in the product. -
Page 34: How To Select A Folder
How to select a folder How to select a folder. To enter FOLDER NAVIGATION mode, press MENU button “DOUBLE TIMES” during PAUSE/STOP/PLAY mode. One More tip! FOLDER NAVIGATION mode allows music to pause temporarily. How to select a folder Select the folder you want by moving FF/REW key up or down. -
Page 35: Remote Controller Instruction
Remote Control Instruction Earphone Terminal The remote control consists of 7 buttons Volume Button along with a HOLD button Play/Pause (PLAY/PAUSE/STOP/Volume/F F/REW/EQ/HOLD) Stop All buttons except the HOLD EQ / EQ/MODE button have MODE the same functions as in the player. ※... -
Page 36: It May Not Be A Trouble
It May Not be a Trouble! Case Check Does not respond to ▶Batteries or rechargeable batteries are inserted the buttons being correctly? pressed ▶Battery or rechargeable batteries are exhausted? ▶Lock is in the HOLD position? ▶Loose contact of the earphones to Player The digital audio ▶Battery contact is loose? -
Page 37: Fcc Rf Interference Statement
FCC RF INTERFERENCE STATEMENT Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 38: Warranty Form
WARRANTY FORM Warranty Term: 1 year from the date of purchase Product Model : Date of Purchase : (month) (day) Name of purchaser : Phone Number : Address : Place Purchased : Phone Number : Address : Hyunwon Incorporated You need to show this Warranty Certificate with the date of purchase when ●...
