GIGAIPC QBiX-JMB-CMLA47EHGP-A1 Startup Manual

Industrial system with intel q470e chipset, support for intel 10th gen. core i processor , discrete gfx card and 850w power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QBiX-JMB-CMLA47EHGP-A1
Industrial System with Intel® Q470E Chipset, Support for Intel® 10th Gen.
Core™ i Processor , discrete GFX card and 850W power supply
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following items have been shipped:
For Main system : 9BQJQ47EPMR-SI
1. Graphic Power Cable #18 200mm x 2
(P/N: 25CRI-200309-S9R)
2. HDD Screws M3x4L x 16 (P/N:
25984G-1C014-S00)
*
Quantity of the HDD screws in the accessory kit may decreased based on
actual HDD assemble quantity.

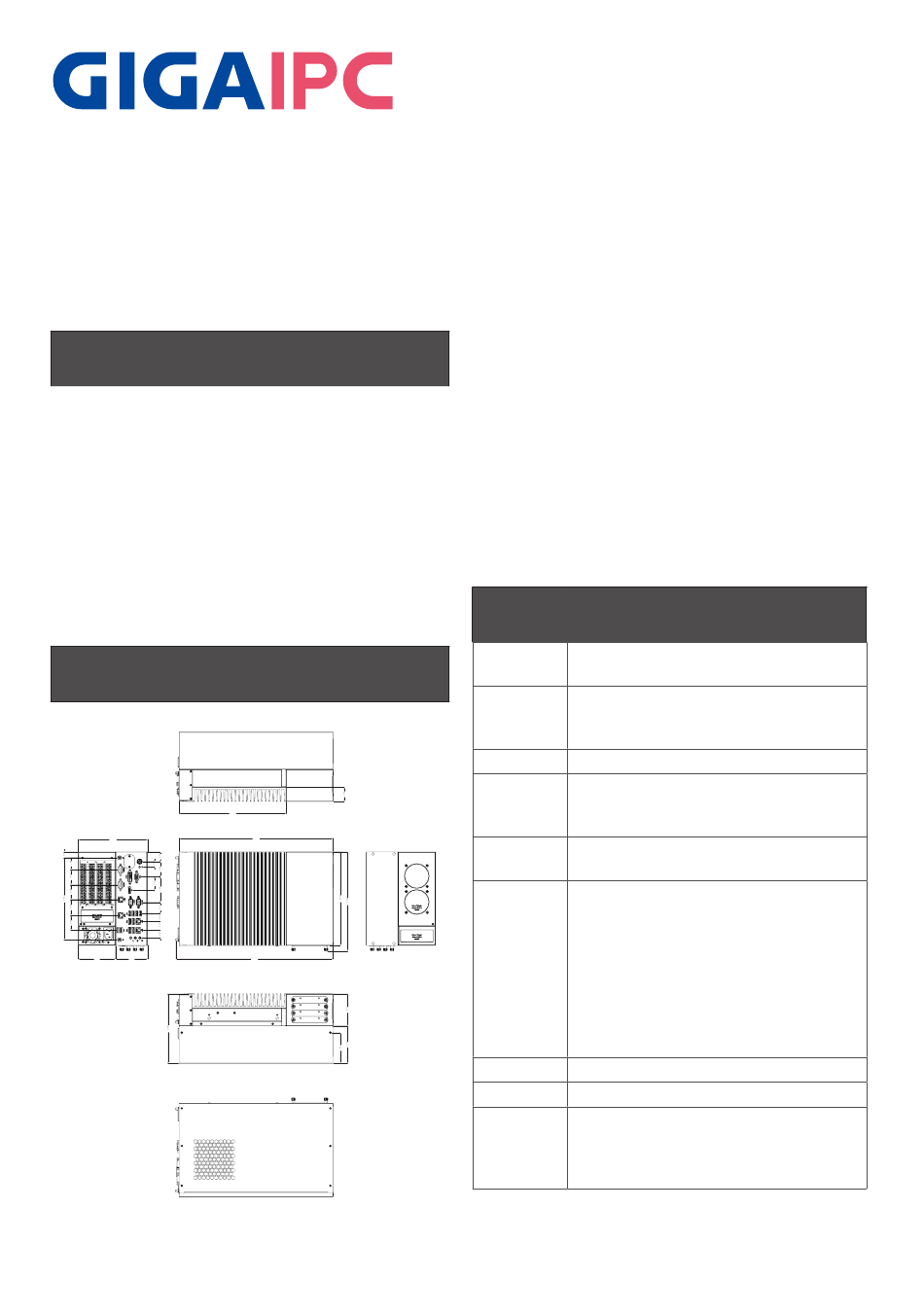

Dimension
166.3
89.5
76.8
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
256.1
368.3
376.5
Caution: DANGER OF EXPLOSION
IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Specifications
Dimension
System Size: 224W x 368D x 166.3H(mm) -
Discrete GFX card support (Optional)
CPU
Support for 10th Generation Intel® Core™
i9/i7/i5/i3, Pentium® and Celeron® processors
in the LGA1200 package, TDP under 65W
Chipset
Intel® Q470E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets supporting up to
64 GB,
Dual channel DDR4 3200 MHz
Ethernet
1 x GbE LAN Port (Intel® I219V)
3 x GbE LAN Ports (Intel® I211AT)
Graphic
Integrated Graphics Processor - Intel® HD
support
Graphics support:
1 x DVI-D port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x D-Sub port, supporting a maximum
resolution of 1920x1200 @60Hz
1 x DP port, supporting a maximum resolution
of 4096x2160 @60Hz
3 independent displays output
Audio
Realtek® Audio Codec
Storage
4 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion
1 x 2280 M.2 M-Key (PCIe x4 & SATA 6Gb/s)
Slots
1 x 2230 M.2 E-Key
1 x Full-size mini PCIe with SIM slot
1 x PCIe slot -- Discrete riser card support
1
www.gigaipc.com
