Summary of Contents for GIGAIPC QBiP-1165G7A
-
Page 1: Sbc Boards

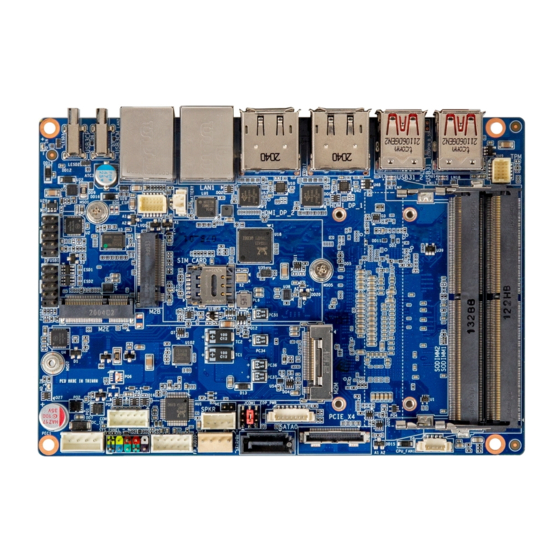

QBiP-1165G7A/ QBiP-1135G7A/ QBiP-1115G4EA 3.5” SBC Boards User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity QBiP-1165G7A/ QBiP-1135G7A / QBiP-1115G4EA MB SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
DC_IN (DC IN 1x4 pin power connector) ....25 2.2.5 SYS_PANEL (Front panel header) ........26 2.2.6 COM (Serial port header, RS-232) ......... 27 2.2.7 FP_AUDIO (Front Audio connector) ......28 2.2.8 SATAPWR (SATA 6Gb/s power connector) ....29 2.2.9 SPKR (Speaker out connector) ........30 www.gigaipc.com... - Page 12 2.2.25 BATTERY (Battery cable Connector) ......45 Chapter 3 – BIOS Introduction ..............47 The Main Menu............. 48 Advanced ..............49 3.3.1 TPM Configuration ............50 3.3.2 SATA And RST Configuration ......... 52 3.3.3 CPU Configuration ............53 3.3.4 Super I/O Configuration ..........54 www.gigaipc.com...
- Page 13 3.3.6 S5 RTC Wake Settings ........... 56 3.3.7 Network Stack Configuration ........57 3.3.8 NVMe Configuration ............. 58 3.3.9 Offboard SATA Controller Configuration ...... 59 Chipset ................60 Security ................. 61 Boot ................64 Save & Exit ..............65 www.gigaipc.com...
-
Page 14: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 15 16.24 101.7 0.00 20.62 37.89 56.2 76.9 95.57 113.32 126.91 135.37 146.0 95.2 3.32 18.05 14.79 38.09 www.gigaipc.com...
-
Page 16: Specifications
Specifications QBiP-1165G7A QBiP-1135G7A QBiP-1115G4EA Motherboard 3.5’’ SBC Form Factor 146W x 101.7Dmm Intel® Core™ i7- Intel® Core™ i5- Intel® Core™ i3- 1165G7 Processor 1135G7 Processor 1115G4E Processor 10nm SuperFin, 10nm SuperFin, 10nm SuperFin, 4 cores, 8 threads, 4 cores, 8 threads, 2 cores, 4 threads, up to 4.7 GHz,... - Page 17 QBiP-1165G7A QBiP-1135G7A QBiP-1115G4EA Motherboard Raid Intel® SATA RAID 0/1 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key Expansion Slots 1 x 3052 M.2 B-Key with SIM Slot (Support 5G) 1 x PCIe x4 (Board to Wire connector)
-
Page 18: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 19: Jumpers And Connectors
Jumpers and Connectors 22 21 www.gigaipc.com... - Page 20 Embedded Display Port power connector PCIE_X4 PCIe Gen3 x4 connector M.2 Slot, SATA/PCIex2, NGFF 2280 SODIMM1 DDR4 SO-DIMM Slot SODIMM2 Trusted Platform Module connector USB31_1 USB 3.2 Gen 2x1 connector USB31_2 HDMI_DP_1 DP connector (Top) HDMI_DP_2 HDMI connector (Bottom) LAN1, LAN2 LAN connector www.gigaipc.com...
- Page 21 Code Description USB3CM USB 3.2 Gen 2x1 Type C connector USB3CP USB 3.2 Gen 2x1 Type C connector M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth module M.2 Slot, B-key, NGFF3052 BATTERY Battery cable connector www.gigaipc.com...
-
Page 22: Cpu_Fan2 (Cpu Fan Connector)
2.2.1 CPU_FAN2 (CPU fan connector) Pin 1 CPU fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 23: Edp (Embedded Display Port Connector)
Pin 1 Embedded Display Port Connector Pin No. Definition Pin No. Definition EDP_TX2+ EDP_TX3- EDP_TX3+ Pin No. Definition Pin No. Definition Connector PN Vendor 115B20-100020-G4-R STARCONN EDP_TX0- EDP_AUX- EDP_TX0+ EDP_AUX+ Hotplug EDP_TX1- Detect Backlight EDP_TX1+ Enable Backlight EDP_TX2- cotrol www.gigaipc.com... -
Page 24: Fusb1, Fusb2 (Usb2.0 Headers)
2.2.3 FUSB1, FUSB2 (USB2.0 headers) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG 9 10 Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 25: Dc_In (Dc In 1X4 Pin Power Connector)
2.2.4 DC_IN (DC IN 1x4 pin power connector) Pin 1 DC IN 1x4 pin power connector Connector PN Vendor 753-81-04TW00 PINREX 1 2 34 Pin No. Definition POWER IN POWER IN www.gigaipc.com... -
Page 26: Sys_Panel (Front Panel Header)
2.2.5 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX 210-92-05GW5W PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Power Button- No Connect No Pin www.gigaipc.com... -
Page 27: Com (Serial Port Header, Rs-232)
2.2.6 COM (Serial port header, RS-232) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Definition No Connect RI/ 5V/ 12V www.gigaipc.com... -
Page 28: Fp_Audio (Front Audio Connector)
2.2.7 FP_AUDIO (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_JD FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 29: Satapwr (Sata 6Gb/S Power Connector)
2.2.8 SATAPWR (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-91-045W00 PINREX A2540WR- JOINT-TECH 04PR6NG1N10G Pin No. Definition www.gigaipc.com... -
Page 30: Spkr (Speaker Out Connector)
2.2.9 SPKR (Speaker out connector) Pin 1 Speaker out Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 31: Me (Me Enable Jumper)
2.2.10 ME (ME Enable jumper) ME Enable Connector Connector PN Vendor 220-96-02GB01 PINREX ME Enable jumper Enable (Default) Disable (Close) www.gigaipc.com... -
Page 32: Sata0 (Sata 6Gb/S Connector)
2.2.11 SATA0 (SATA 6Gb/s connector) SATA Connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 33: Jcom1 (Com1 Ri# Pin Ri#/5V/12V Select)
2.2.12 JCOM1 (COM1 RI# pin RI#/5V/12V Select) JCOM1 Jumper Select Connector PN Vendor 222-97-03GBE1 PINREX 1-2 Close: 5V (Power COM) 3-4 Close: RI (Stand COM) (Default-Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 34: Edp_Pwr (Embedded Display Port Power Connector)
2.2.13 ED P_ P WR (Emb e d de d D i s p lay Po r t p ower connector) Pin 1 Embedded Display Port power Connector PN Vendor connector 85205-0770N ACES A1250WV-S-07PC JOINT-TECH Pin No. Definition www.gigaipc.com... -
Page 35: Pciex4 (Pcie Gen3 X4 Connector)
Pin No. Definition Pin No. Definition RX0_DP RX0_DN CK_REQ CLK_DP CLK_DN SMB_CLK SMB_DATA Pin No. Definition Pin No. Definition PLT_RST# PCIE_WAKE# TX3_DP TX3_DN Connector PN Vendor TX2_DP 115B30-000040-G4-R STARCONN TX2_DN TX1_DP TX1_DN TX0_DP TX0_DN RX3_DP RX3_DN RX2_DP RX2_DN RX1_DP RX1_DN www.gigaipc.com... -
Page 36: M2M (M.2 Slot, Sata/Pciex2, Ngff 2280)
Pin No. Definition Pin No. Definition CK_REQ 3.3V CLK_N PCIE_WAKE# 3.3V CLK_P Pin No. Definition Pin No. Definition M2_LED SUSCLK 3.3V M2_SSD_ 3.3V 3.3V Detect 3.3V 3.3V 3.3V 3.3V Connector PN Vendor 2E0BC41-C85CM-LH FOXCONN PCIE_RXN PCIE_RXP PCIE_TXN PCIE_ TXP DEVSLP www.gigaipc.com... -
Page 37: Sodimm1, Sodimm2 (Ddr4 So-Dimm Slot)
2.2.16 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) www.gigaipc.com... -
Page 38: Tpm (Trusted Platform Module Connector)
2.2.17 TPM (Trusted Platform Module Connector) Pin 1 TPM Module Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition Pin No. Definition TPM_CLK SPI_CS TPM_SO TPM_RST# TPM_SI 3.3V www.gigaipc.com... -
Page 39: Usb31_1, Usb31_2 (Usb 3.2 Gen 2X1 Connector)
2.2.18 USB31_1, USB31_2 (USB 3.2 Gen 2x1 Connector) USB Connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB_D- USB_D- USB_D+ USB_D+ USB3_RX- USB3_RX- USB3_RX+ USB3_RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ www.gigaipc.com... -
Page 40: Hdmi_Dp_1, Hdmi_Dp_2 (Hdmi (Bottom) & Dp (Top)
Pin No. Definition Pin No. Definition Pin No. Definition HDMI_D2+ DATA_0P DATA_3N HDMI_D2- HDMI_SCL DATA_0N CONFIG1 HDMI_D1+ HDMI_SDA DATA_1P AUX_P HDMI_D1- DATA_1N HDMI_D0+ HDMI_HPD DATA_2P AUX_N DP HPD HDMI_D0- DATA_2N HDMI_CLK+ DATA_3P DP PWR Connector PN Vendor HDMI_CLK- DPHDDPHD0172201AN0 FENYING www.gigaipc.com... -
Page 41: Lan1, Lan2 (Lan Connector)
LAN Connector State Description Orange On 1Gbps data rate Green On 100Mbps data rate 10Mbps data rate Link / Connection/ Speed LED Activity LED Connector PN Vendor Pin No. Definition TX+_D1 RB1-GB-0008 TX-_D1 RX+_D2 BI+_D3 BI-_D3 RX-_D2 BI+_D4 BI-_D4 www.gigaipc.com... -
Page 42: Usb3Cm (Usb 3.2 Gen 2X1 Type C Connector)
2.2.21 USB3CM (USB 3.2 Gen 2x1 Type C connector) 2.2.22 USB3CP (USB 3.2 Gen 2x1 Type C connector) USB Type C Connector Connector PN Vendor WU3CR- WINWIN 24A5L1CU5T41 Pin No. Definition Pin No. Definition TX1+ TX2+ TX1- TX2- VBUS VBUS VBUS VBUS RX2- RX1- RX2+ RX1+ www.gigaipc.com... -
Page 43: M2E (M.2 Slot, E-Key, Ngff2230, Wifi & Bluetooth Module)
M.2 E Key Connector WLAN_RXN CL_CLK CLK_DP CLK_DN SUSCLK CLK_REQ PLT_RST# Pin No. Definition Pin No. Definition PCIE_WAKE BT_Disable# WIFI_Disable# USB_D+ USB_D- BT_WAKE Connector PN Vendor APCI0095-P002A LOTES Pin No. Definition Pin No. Definition 80152-8521 BELLWETHER WLAN_TXP WLAN_TXN CL_RST# www.gigaipc.com... -
Page 44: M2B (M.2 Slot, B-Key, Ngff3052)
3.3V CLK_N CK_REQ WWAN_PWR_ CLK_P PCIE_WAKE WWAN_ USB D+ Disable USB D- GPP_RESET Pin No. Definition Pin No. Definition M2B_DET 3.3V M2B_WAKE 3.3V M2B_DRP 3.3V WWAN_ Disable2 Connector PN Vendor USB3 RXN 80149-8521 BELLWETHER USB3_RXP SIM_RST# SIM_CLK USB3_TXN SIM_DATA www.gigaipc.com... -
Page 45: Battery (Battery Cable Connector)
2.2.25 BATTERY (Battery cable Connector) Pin 1 Battery cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 46: Chapter 3 - Bios
Chapter 3 Chapter 3 – BIOS www.gigaipc.com... -
Page 47: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 48: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Weekday - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 49: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 50: Tpm Configuration
3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com... - Page 51 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature Item Description None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
-
Page 52: Sata And Rst Configuration
Intel VMD feature helps you to control and manage NVMe PCIe SSD. / Enable VMD Enabled : Enables Intel VMD feature (Default setting) controller Disabled : Disables Intel VMD feature Serial ATA Port () shows 2.5" SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 53: Cpu Configuration
To speed up CPU frequency transition time from basic frequency to maximum frequency. Intel(R) Speed Enabled : Enables Intel(R) Speed Shift Technology Interrupt control (Default Shift Technology setting) Interrupt control Disabled : Disables Intel(R) Speed Shift Technology Interrupt control www.gigaipc.com... -
Page 54: Super I/O Configuration
Enabled : Enables allows you to configure the serial port settings Serial Port 1 Disabled : if Disabled, displays no configuration for the serial port Configuration Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com... -
Page 55: Hardware Monitor
CPU Fan Speed Normal : Fan speed set by BIOS default(Default setting) Control Full Speed : Set Fan operates at full speed CPU temperature Shows current CPU temperature System Shows current system temperature temperature Fan Speed Shows current CPU fan Speed www.gigaipc.com... -
Page 56: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 57: Network Stack Configuration
3.3.7 Network Stack Configuration Item Description When system is power on, install LAN driver under UEFI mode Network Stack Disabled : Disables UEFI Network Stack (Default setting) Enabled : Enables UEFI Network Stack www.gigaipc.com... -
Page 58: Nvme Configuration
3.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 59: Offboard Sata Controller Configuration
3.3.9 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 60: Chipset
Enable/Disable Watchdog Timer function Watchdog Timer Enabled : Enables Watchdog Timer function Disabled : Disabled Watchdog Timer function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com... -
Page 61: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 62 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 63 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
-
Page 64: Boot
Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority www.gigaipc.com... -
Page 65: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flahs Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
