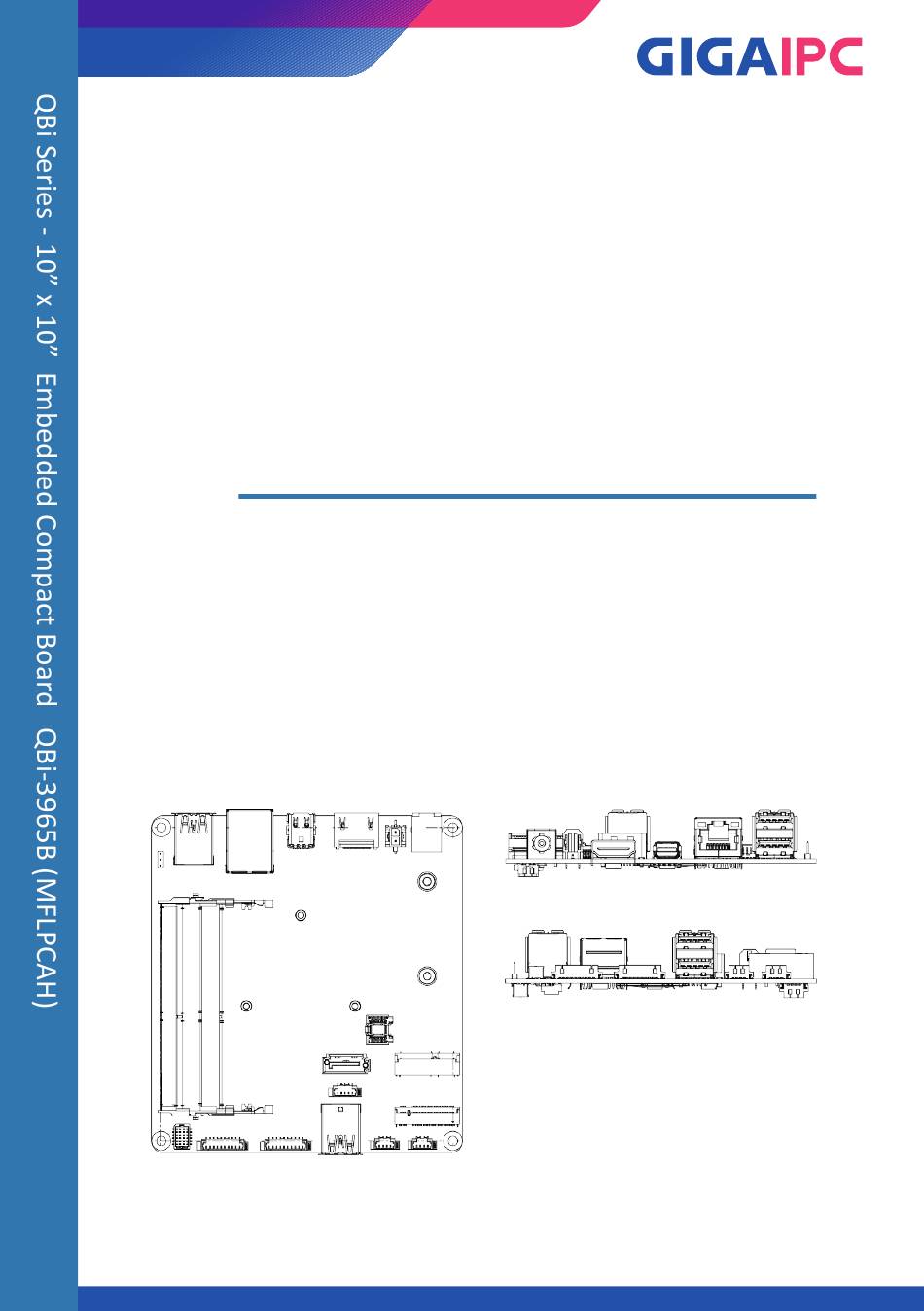

Page 1: 10" X 10" Embedded Compact Board
QBi-3965B (MFLPCAH) 10” x 10” Embedded Compact Board User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
The material in this document is for product information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity QBi-3965B SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. 13. Watch out for high temperatures when the system is running. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
FCC Statement ................. 8 China RoHS Requirements (CN) ............9 China RoHS Requirement (EN) ............10 Chapter1 - Product Specifications Dimension - QBi-3965B (MFLPCAH) ......... 14 Specifications- QBi-3965B (MFLPCAH) ......15 Chapter 2 – Hardware Information Jumpers and Connectors ..........18 2.2.1... - Page 12 2.2.12 SATA_PWR_0 (SATA 6Gb/s Power Connector) ....31 2.2.13 SATA0 (SATA 6Gb/s connector) ........32 2.2.14 SODIMM (2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB) ..................33 2.2.15 POWER BUTTON (Power Switch) ........34 2.2.16 Front and Rear I/O Ports ..........34 www.gigaipc.com...
-
Page 13: Chapter1 - Product Specifications
Chapter 1 Chapter1 - Product Specifications QBi-3965B (MFLPCAH) www.gigaipc.com... -
Page 14: Dimension - Qbi-3965B (Mflpcah)
Dimension - QBi-3965B (MFLPCAH) www.gigaipc.com... -
Page 15: Specifications- Qbi-3965B (Mflpcah)
Specifications- QBi-3965B (MFLPCAH) Motherboard QBi-3965B (MFLPCAH) Embedded Compact Board Form Factor 105W x 110D mm Intel® Celeron® 3965U Processor 14nm, 2 cores, 2 threads 2.20 GHz TDP 15W 2 MB Smart Cache Socket 1 x FCBGA1356 Chipset — 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB... - Page 16 Motherboard QBi-3965B (MFLPCAH) 1 x 2 pin power connector 1 x SATA 6Gb/s connector 1 x CPU fan header 2 x USB 2.0/1.1 headers Internal I/O 1 x USB3.0 header 1 x COM header(RS232) 1 x LPC header 1 x Front panel header 1 x SATA Power header 2 x USB3.0...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 18: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 19 32 GB. Support Dual Channel DDR4 2133 MHz memory modules 16 Power Button Power Switch 17 USB3_2 USB3.0 Port x 2 18 DC_IN DC In Jack 19 HDMI20 HDMI 2.0 Port 20 MDP Mini DP 21 LAN GbE LAN Port 22 USB3_1 USB3.0 Port x 2 www.gigaipc.com...
- Page 20 www.gigaipc.com...
-
Page 21: Battery (Battery Cable Connector)
2.2.1 BATTERY (Battery cable connector) Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 22: Cpu Fan (Cpu Fan Connector)
2.2.2 CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 23: Edp (Embedded Display Port Connector)
+BL_PWR (10V or DCIN) +LCD_VCC (5V) +BL_PWR (10V or DCIN) +LCD_VCC (5V) Note: Please ensure pin 8 is connected Definition Definition to Ground. +LCD_VCC (5V) Connector PN Vendor EDP_LANN3 EDP_LANP3 20455-040E-12 I-PEX EDP_LANN2 EDP_LANP2 EDP_HPD_3V3 EDP_LANN1 EDP_LANP1 EDP_LANN0 EDP_BKLTEN_3V3 www.gigaipc.com... -
Page 24: Atx In
2.2.4 ATX IN Pin 1 ATX IN Connector PN Vendor 99-01740-B004-A TCONN GND (Pin1) DCVIN Pin No. Definition DCVIN www.gigaipc.com... -
Page 25: Bkl_Sel (Back Light Brightness Control Connector)
2.2.5 BKL_SEL (Back light brightness control connector) Pin 1 Back light brightness control Connector PN Vendor connector 222-96-03GBE1 PINREX PH03N33BAAA00 HORNGTONG Jumper DCIN(12V-24V) Pin No. Definition 10V Fix 2-3 (Default) +BL_PWR_Q VIN_10V www.gigaipc.com... -
Page 26: F_Panel (Front Panel Header)
2.2.6 F_PANEL (Front panel header) Pin 1 Front Panel Connector Connector PN Vendor 87216-1206-06 ACES F_PANEL Pin No. Definition SATA_LED_P MPD_+ GND (SATA_LEN_N) MPD- -PANSHW (Power BTN) PMU_RSTBTN_N (Reset BTN) +V5S +V3.3A +V5A www.gigaipc.com... -
Page 27: F_Usb3_1 (Front Usb 3.0 Connector)
2.2.7 F_USB3_1 (Front USB 3.0 connector) Pin 1 USB 3.0 connector Connector PN Vendor DF13C-10P-1.25V(51) 85205-10701 ACES F_USB3_1 Pin No. Definition www.gigaipc.com... -
Page 28: Com (Rs-232 Serial Port Header)
2.2.8 COM (RS-232 Serial Port Header) Pin 1 Serial Port Cable Connector Connector PN Vendor DF13C-10P-1.25V(51) 85205-10701 ACES Pin No. Definition www.gigaipc.com... -
Page 29: F_Usb2_1, F_Usb2_2 (Usb 2.0 Header)
2.2.9 F_USB2_1, F_USB2_2 (USB 2.0 header) 9 10 Pin 1 USB 2.0 Header Connector PN Vendor A1250WV-S- JOINT-TECH 04PNLBT1T00L 50273-0047N-001 ACES F_USB2.0 Pin No. Definition www.gigaipc.com... -
Page 30: M2M Slot (Ngff-2280 M.2 M-Key (Sata 6Gb/S))
2.2.10 M2M Slot (NGFF-2280 M.2 M-Key (SATA 6Gb/s)) 2.2.11 M2E Slot (NGFF-2230 M.2 E-Key (WiFi/BT)) www.gigaipc.com... -
Page 31: Sata_Pwr_0 (Sata 6Gb/S Power Connector)
2.2.12 SATA_PWR_0 (SATA 6Gb/s Power Connector) Pin 1 SATA 6Gb/s power connector Connector PN Vendor 85205-0570N ACES CI4405M1VRP-LF CVILUX SATA_PWR_0 Pin No. Definition +V5S +V5S +V3.3S www.gigaipc.com... -
Page 32: Sata0 (Sata 6Gb/S Connector)
2.2.13 SATA0 (SATA 6Gb/s connector) Pin 1 SATA 6Gb/s power connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 33: Sodimm (2 X Ddr4 So-Dimm Sockets, Max. Capacity 32 Gb)
2.2.14 SODIMM (2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB) 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 2133 MHz memory modules www.gigaipc.com... -
Page 34: Power Button (Power Switch)
2.2.16 Front and Rear I/O Ports Code Description 17 USB3_2 USB3.0 Port x 2 18 DC_IN DC In Jack 19 HDMI20 HDMI 2.0 Port 20 MDP Mini DP 21 LAN GbE LAN Port 22 USB3_1 USB3.0 Port x 2 www.gigaipc.com...
