Bucktool BG2600 Instruction Manual

6” bench grinder & 2” x 42” sander combo
Hide thumbs Also See for BG2600:
Table of Contents

Advertisement

Quick Links

Download this manual

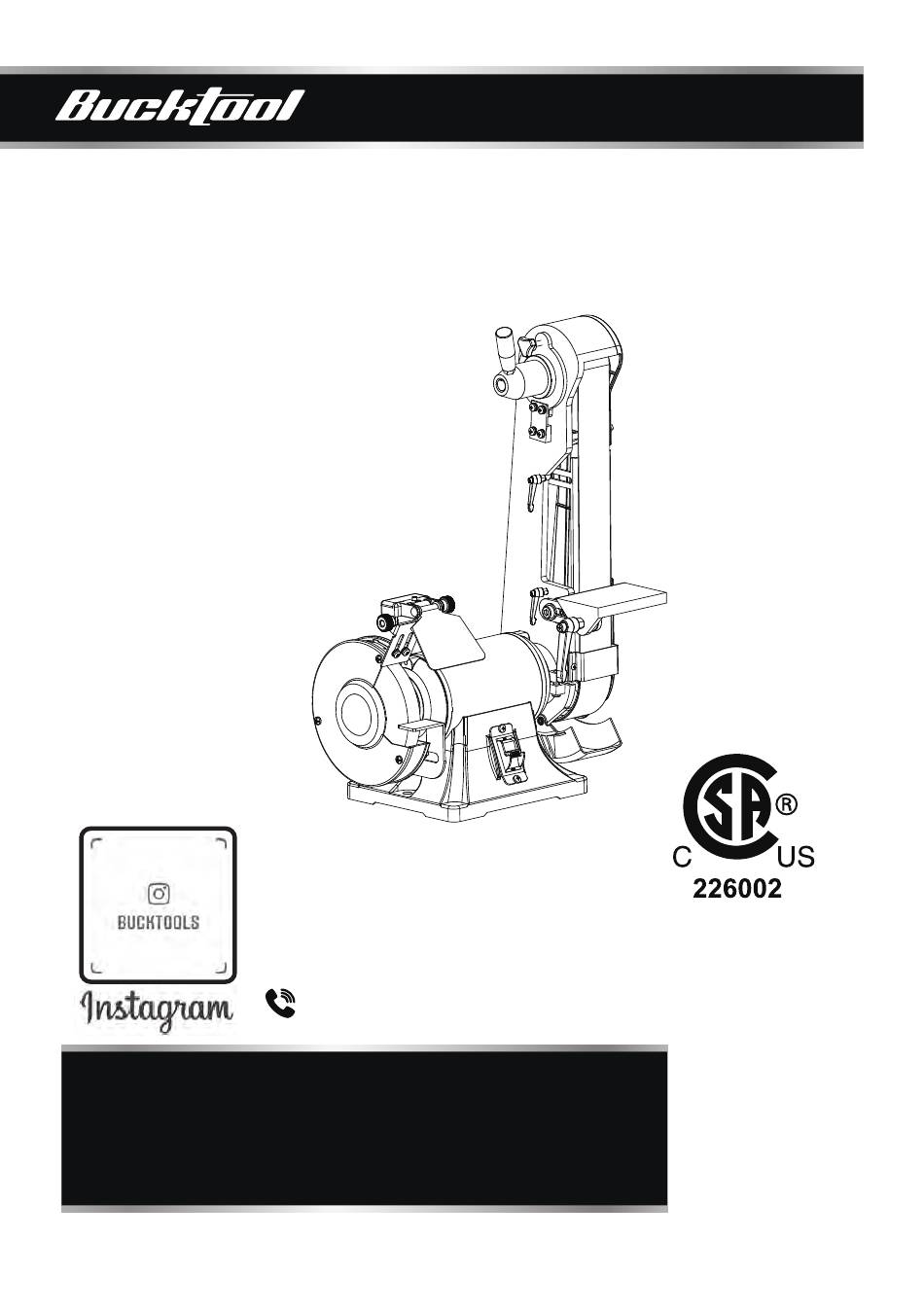

6" Bench Grinder &
2" x 42" Sander Combo
IMPORTANT:
For your own safety, read and follow all of the Safety
Guidelines and Operating Instructions before operating
this product.
Contact Us:
email: service@bucktool.com
https://www.bucktool.com
909-255-1088 (8AM-5PM PST)
GET IT DONE !
INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG2600 and is the answer not in the manual?

Questions and answers

Related Manuals for Bucktool BG2600

Summary of Contents for Bucktool BG2600

  • Page 1 GET IT DONE ! 6” Bench Grinder & 2” x 42” Sander Combo Contact Us: email: service@bucktool.com https://www.bucktool.com 909-255-1088 (8AM-5PM PST) IMPORTANT: INSTRUCTION For your own safety, read and follow all of the Safety MANUAL Guidelines and Operating Instructions before operating...

  • Page 2: Specifications

    BG2600 TABLE OF CONTENTS Specifications Safety guidelines Package contents Key parts diagram Operating instructions Maintenance Troubleshooting Exploded view Parts list Warranty SPECIFICATIONS Motor 120VAC, 60Hz , 3.5A Speed (no load) 3450RPM Belt size 2" x 42" Belt speed 4480 FPM...

  • Page 3: General Safety Guidelines

    BG2600 GENERAL SAFETY GUIDELINES • Operate in a safe work environment. Keep your work area clean, well lit and free of distractions. • Keep anyone not wearing the appropriate safety equipment away from the work area. • Store tools properly in a safe and dry location. Keep tools out of the reach of children.

  • Page 4: Additional Specific Safety Rules

    BG2600 ADDITIONAL SPECIFIC SAFETY RULES 1. Only use a grinding wheel with the correct arbor size and shape that matches the grinder’s spindle. 2. Ensure the grinding wheel has a clean edge. Check the grinding wheel for wear or chipping and replace if necessary.
  • Page 5 BG2600 20. Do not touch an operating motor. Motors can operate at high temperatures. 21. Only use accessories that are specifically designed for use with the tool. Ensure the accessory is tightly installed. 22. Only use an accessory that exceeds the No Load Speed rating.

  • Page 6: Motor Specifications

    BG2600 IMPORTANT INFORMATION-Electrical A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20-A time-lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-pronged grounding type plugs and matching receptacle which will accept the machine’s plug.
  • Page 7 BG2600 The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided–if it will not fit the outlet, have the proper outlet installed by a qualified electrician.
  • Page 8 BG2600 Package contents Qty . No. Description No. Description Qty . Bench grinder sander Inner hex bolt assy M5x10 Sanding belt 2”x42” Inner hex bolt M10x16 Tool rest for grinding Flat washer D10 Tool rest locking knob Work table support...
  • Page 9 BG2600 Belt tracking knob Belt tension handle 2 in. width / 42 in. length sanding belt (blue) Eye shield locking knob LED light Knife sanding work table Spark deflector Table lock knob Belt cover support Grinding wheel Dust port Eye shield...
  • Page 10 BG2600 Estimated Assembly Time: 5 - 10 Minutes. INSTALLING WORK REST ON GRINDING WHEEL 1. Attach the left tool rest (1) to the grinder as the upper slot (2) to the nut (3) and lower slot (4) to the protrude cylinder (5).
  • Page 11 BG2600 INSTALLING KNIFE SANDING WORK TABLE 1. Mount the work table support (1) to left side of belt housing (2) using flat washer (3) and hex cap screw (4). 2. Belt work talbe knob (5) and flat washer (6) through hole in the work table (7).

  • Page 12: On/Off Switch

    BG2600 TO PROPERLY TRACK THE SANDING BELT 1. Plug in the sander. 2. Turn power switch ON, then immediately OFF, noting whether the belt (1) tends to slide off its track, and to which side (front or back) of the sander.
  • Page 13 BG2600 BELT VERTICAL SANDING Your bench grinder sander - belt station can sand vertically as well as horizontally. Depending on operator needs and the workpiece, the work table can be used with either the horizontal or vertical position. To change from one position to the other: 1.
  • Page 14 BG2600 REPLACING GRINDING WHEEL CAUTION Turn off and unplug the bench grinder. Use only grinding wheel that measure 6 in. (150 mm) in diameter. This tool has 1/2 in. (12.7 mm) arbors on both sides. 1. Raise the eye shield (1) out of the way and adjust the spark deflector (2) in its highest setting.
  • Page 15 BG2600 6. Remove the hex nut (9), the outside wheel flange (10) and the wheel (11). 7. Inspect the wheel (11) for cracks, chips or any other visible damage (other than normal wear) and discard if such damage is found. Inspect the blotter/cardboard disc for damage.
  • Page 16 BG2600 REPLACING SANDING BELT Sanding belt should be replaced when worn, torn, or glazed. 1. Position the belt housing horizontally as shown. Loosen the inner hex screw (1) by using a 8 mm hex wrench, turning it counte rclockwise. 2. Loosen the belt cover lock knobs (2) to remove the belt cover(3).
  • Page 17 BG2600 WARNING! To avoid injury from an accidental start, turn the switch OFF and always remove the plug from the power source before making any adjustments. Problem(s) Possible Cause(s) Suggested Solution(s) 1. Replace with fuse of proper size, if Grinder won’t start.
  • Page 18 BG2600 Problem(s) Possible Cause(s) Suggested Solution(s) 1. Dress the grinding wheel. Lines on surface of 1. Impurity on wheel workpiece. surface. 2. Use a holding device to firmly 2. Workpiece not being held retain the workpiece. tightly. Burning spots or 1.
  • Page 19 BG2600...
  • Page 20 BG2600 Item DESC. SPEC. Philips Screws M5X45 Left Guard Cover Hex Nut M12 left Flange White Grinding Wheel Philips Screws + Spring Washer Assy M5X10 Left Inner Guard Hex Flange Nut Left Tool Rest Flat Washer Tool Rest Locking Knob...
  • Page 21 BG2600 Item DESC. SPEC. Switch Plate Base Capacitor Philips Screw + Spring Washer Assy M6X20 Base Plate Rubber Foot Philips Screw + Flat Washer Assy M4X12 Belt Tension Handle Inner Hex Bolt M8X10 Tension Handle Base Tension Spring Belt Tracking Knob...
  • Page 22 BG2600 Item DESC. SPEC. Big Flat Washer Locking Knob Inner Hex Bolt M8X25 Belt Housing Belt Limited Plate Driving Wheel Hex Nut Work Table Support Inner Hex Wrench Inner Hex Wrench Inner Hex Wrench Table Locking lever M8X28 Bolt M5X60...
  • Page 23 Through a combination of years of hard work and experience we’ve been able to bring you the BUCKTOOL brand you see today. We live for challenges and strive to make our customers 100% satisfied. What BUCKTOOL does for customers is special, and we want to share this with you.
  • Page 24 GET IT DONE ! TWO-YEAR LIMITED WARRANTY Having Problems ? Give us a chance to help you before returning this product Email : service@bucktool.com https://www.bucktool.com 909-255-1088 (8AM-5PM PST) https://www.bucktool.com...
