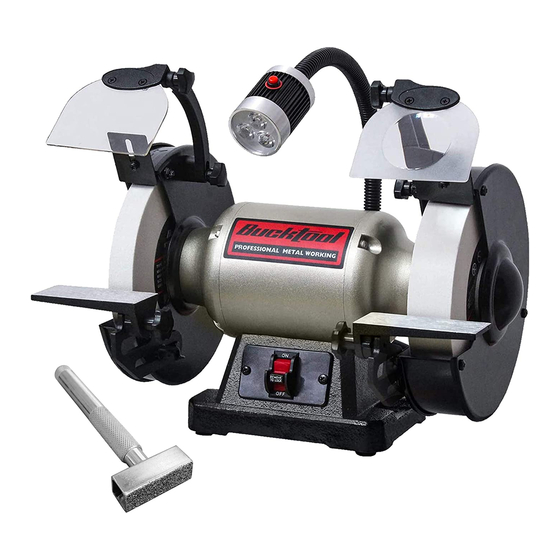

Bucktool TDS-200C4HL Instruction Manual

8 low speed bench grinder with led
Hide thumbs Also See for TDS-200C4HL:

Advertisement

Quick Links

Download this manual
BENCH GRINDER WITH LED
Contact Us:
email: service@bucktool.com
https://www.bucktool.com
IMPORTANT:
For your own safety, read and follow all of the Safety Guidelines
and Operating Instructions before operating this product.
8 LOW SPEED
"
909-255-1088 (8AM-5PM PST)
GET IT DONE !
INSTRUCTION
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the TDS-200C4HL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bucktool TDS-200C4HL

Summary of Contents for Bucktool TDS-200C4HL

  • Page 1 GET IT DONE ! 8 LOW SPEED " BENCH GRINDER WITH LED Contact Us: email: service@bucktool.com https://www.bucktool.com 909-255-1088 (8AM-5PM PST) IMPORTANT: INSTRUCTION For your own safety, read and follow all of the Safety Guidelines MANUAL and Operating Instructions before operating this product.
  • Page 2 Through a combination of years of hard work and experience we’ve been able to bring you the BUCKTOOL brand you see today. We live for challenges and strive to make our customers 100% satisfied. What BUCKTOOL does for customers is special, and we want to share this with you.
  • Page 3 TDS-200C4HL TABLE OF CONTENTS Specifications Safety guidelines Package contents Key parts diagram Assembly instructions Operating instructions Maintenance Exploded view Parts list Troubleshooting Warranty SPECIFICATIONS Motor 120VAC, 60Hz , 3/4HP Speed 1750RPM Shaft Diameter 5/8" Left Wheel Size 8" x 1" x 5/8"...
  • Page 4 TDS-200C4HL SAFETY GUIDELINES - DEFINITIONS Your power tool and its Instruction Manual may contain “WARNING ICONS” (a picture symbol intended to alert you to and/or instruct you how to avoid a potentially hazardous condition). Understanding and heeding these symbols will help you operate your tool better and safer.
  • Page 5 TDS-200C4HL activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: ● Lead from lead-based paints; ● Crystalline silica from bricks and cement and other masonry products;...
  • Page 6 TDS-200C4HL 4. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents. 5. DO NOT USE IN DANGEROUS ENVIRONMENTS. Do not use power tools in damp locations, or expose them to rain or snow. Keep work area well lit. 6. KEEP CHILDREN AWAY. All visitors and bystanders should be kept a safe distance from work area.
  • Page 7 TDS-200C4HL 17. USE RECOMMENDED ACCESSORIES. Consult this Instruction Manual for recommended accessories. The use of improper accessories may cause risk of injury to yourself or others. 18. NEVER STAND ON THE TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted.
  • Page 8 TDS-200C4HL BENCH GRINDER SAFETY Wear eye protection that complies with ANSI Z87.1 specifications. 2. Use grinding wheels suitable for the speeds of the grinder. 3. Stand beside the bench grinder during start-up, not facing directly in front. 4. Do not remove the wheel guard.
  • Page 9 TDS-200C4HL 19. DO NOT TURN THE MOTOR SWITCH ON AND OFF RAPIDLY. This could cause the wheel to loosen and create a hazard. Should this ever occur, stand clear and allow the wheel to come to a complete stop. Disconnect your grinder from the power supply and retighten the wheel nut securely.
  • Page 10 TDS-200C4HL of the grinding wheel. 34. Lawn mower blades are usually sharpened on only one edge and dressed up slightly on the other. Perform this sharpening process on both cutting ends of the blade. After sharpening, balance the blade by removing additional material.
  • Page 11 TDS-200C4HL damaged or worn cords immediately. Use a separate electrical circuit for your tool. This circuit must not be less than #18 wire and should be protected with a 10 Amp time lag fuse. Before connecting the motor to the power line, make sure the switch is in the off position and the electric current is rated the same as the current stamped on the motor nameplate.
  • Page 12 TDS-200C4HL WARNING This tool is for indoor use only. Do not expose to rain or use in damp locations. This tool is intended for use on a circuit that has a receptacle like the one illustrated in Fig. 1. Fig. 1 shows a three-pronged electrical plug and receptacle that has a grounding conductor.
  • Page 13 TDS-200C4HL UNPACKING YOUR BENCH GRINDER Description Qty. Bench Grinder Left / Right Tool Rest Bracket 1 each Left / Right Tool Rest 1 each Tool Rest Bracket Knob / Flat Washer Tool Rest Knob / Flat Washer Left / Right Eye Shield Assy...
  • Page 14 TDS-200C4HL No. Description Qty. Eye shield Spark deflector White fine grinding wheel (80 Grit) Tool rest Tool rest bracket LED light Main switch Tool rest bracket knob Tool rest locking knob Medium grinding wheel (120 Grit) Eye shield locking knob...
  • Page 15 TDS-200C4HL ASSEMBLY AND ADJUSTMENTS Estimated Assembly Time: 5 - 10 Minutes. • To avoid injury, do not connect this bench grinder to the power source until it is completely assembled and adjusted, and you have read and understood this Instruction Manual.
  • Page 16 TDS-200C4HL INSTALLING SPARK DEFLECTOR (FIG. C) 1. Use an M5x10 screw, washer and spring washer assy to attach the left spark deflector to the left wheel guard as shown in Fig.C. Secure the screw in place with a Phillips screwdriver.
  • Page 17 TDS-200C4HL GENERAL OPERATION WARNING Keep all by standers a safe distance away from the tool and not in direct line, front or back of the grinder. 1. Your bench grinder has a white fine wheel (120 grit) for medium material removal and general purpose grinding, and a white medium wheel (60 grit) for fast material removal.
  • Page 18 TDS-200C4HL ON/OFF Switch (FIG. G) 1. Press the power switch side marked “ON” to turn the grinder on. 2. Press the power switch side marked “OFF” to turn the grinder off. 3. To lock the switch in the “OFF” position, grasp the end, of the switch key, and pull it out.
  • Page 19 TDS-200C4HL 2. Always keep the workpiece moving across the face of the grinding wheel. Grinding continuously on the same spot on the wheel will cause grooves to be worn into the wheel. The wheel may crack or become damaged more easily, and grinding of other objects will be difficult.
  • Page 20 TDS-200C4HL CHANGING GRINDING WHEELS (FIG. H, I, J, K, L) CAUTION Turn off and unplug the bench grinder. Use only grinding wheels that measure 8 in. (200 mm) in diameter. This tool has 5/8 in. (15.88 mm) arbors on both sides.
  • Page 21 TDS-200C4HL 6. Remove the hex nut (8), the outside wheel flange (9) and the wheel (10) as shown in Flg. K. 7. Inspect the wheel (10) for cracks, chips or any other visible damage (other than normal wear) and discard if such damage is found.
  • Page 22 TDS-200C4HL DRESSING A GRINDING WHEEL (FIG. N) A Wheel Dresser is to be used to remove any forward wobble, buildup up of material on the grinding wheel, remove imperfections, and make the corners of the grinding wheel square. NOTE: DO NOT use the Wheel Dresser on Wire Wheels (not included) if they are Fig.
  • Page 23 TDS-200C4HL GENERAL MAINTENANCE WARNING For your own safety, turn switch “OFF” and remove plug from power source outlet before adjusting and maintaining your bench grinder. If power cord is worn, cut or damaged in any way, have it replacedb immediately.
  • Page 24 TDS-200C4HL...
  • Page 25 TDS-200C4HL Package contents Description Size Qty. Philips Screw+Flat Washer Assy M4x16 Rubber Foot Base Plate M8x22 Hex Bolt + Spring Washer Assy Philips Screw+Spring Washer+Flat Washer Assy M4x8 Capacitor Base Switch Left Tool Rest Bracket Left Tool Rest M5x8 Philips Screw...
  • Page 26 TDS-200C4HL Description Size Qty. Right Inner Guard Philips Screw+Spring Washer Assy M5x10 Philips Screw+Spring Washer+Flat Washer M5x8 Left Spark Deflector Right Tool Rest Bracket Right Tool Rest Tool Rest Locking Knob Flat Washer Tool Rest Bracket Knob Wheel Flange White Grinding Wheel...
  • Page 27 TDS-200C4HL TROUBLESHOOTING GUIDE WARNING To avoid injury from an accidental start, turn the switch OFF and always remove the plug from the power source before making any adjustments. GENERAL SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Not plugged into power Plug it into the power outlet.
  • Page 28 GET IT DONE ! TWO-YEAR LIMITED WARRANTY Having Problems ? Give us a chance to help you before returning this product Email : service@bucktool.com https://www.bucktool.com 909-255-1088 (8AM-5PM PST) https://www.bucktool.com...
