Columbia CSFH IV 4 Series Installation, Operation & Maintenance Manual

Columbia CSFH IV 4 Series Installation, Operation & Maintenance Manual

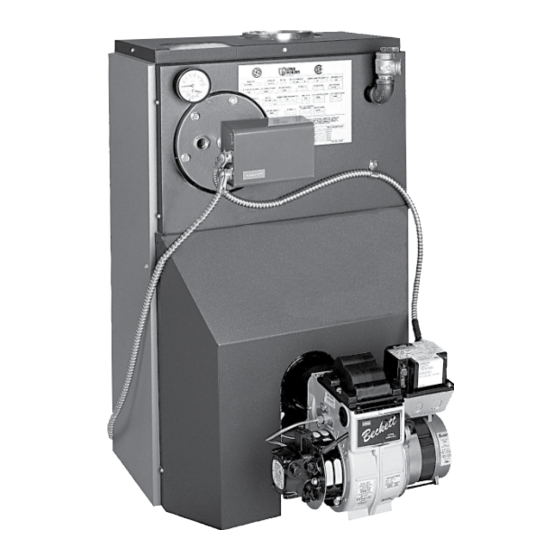

Water oil fired cast iron boiler

Advertisement

CLICK ANYWHERE on THIS PAGE to RETURN to COLUMBIA BOILERS & FURNACES at InspectApedia.com
C
OLUMBIA
P.O. Box 24202,
Baltimore, Maryland 21227
Models
CSFH-3085
CSFH-3100
CSFH-4100
CSFH-4125
CSFH-4145
CSFH-5160
CSFH-5185
CSFH-6175
CSFH-6210
IV
CSFH
WATER
OIL FIRED CAST IRON BOILER
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
Tested For 75 psi
ASME
Working Pressure
Manufactured by:
ECR International, Inc.
2201 Dwyer Avenue, Utica NY 13501
web site: www.ecrinternational.com
SERIES 4
P/N 240009737, Rev. A [09/2012]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSFH IV 4 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Columbia CSFH IV 4 Series

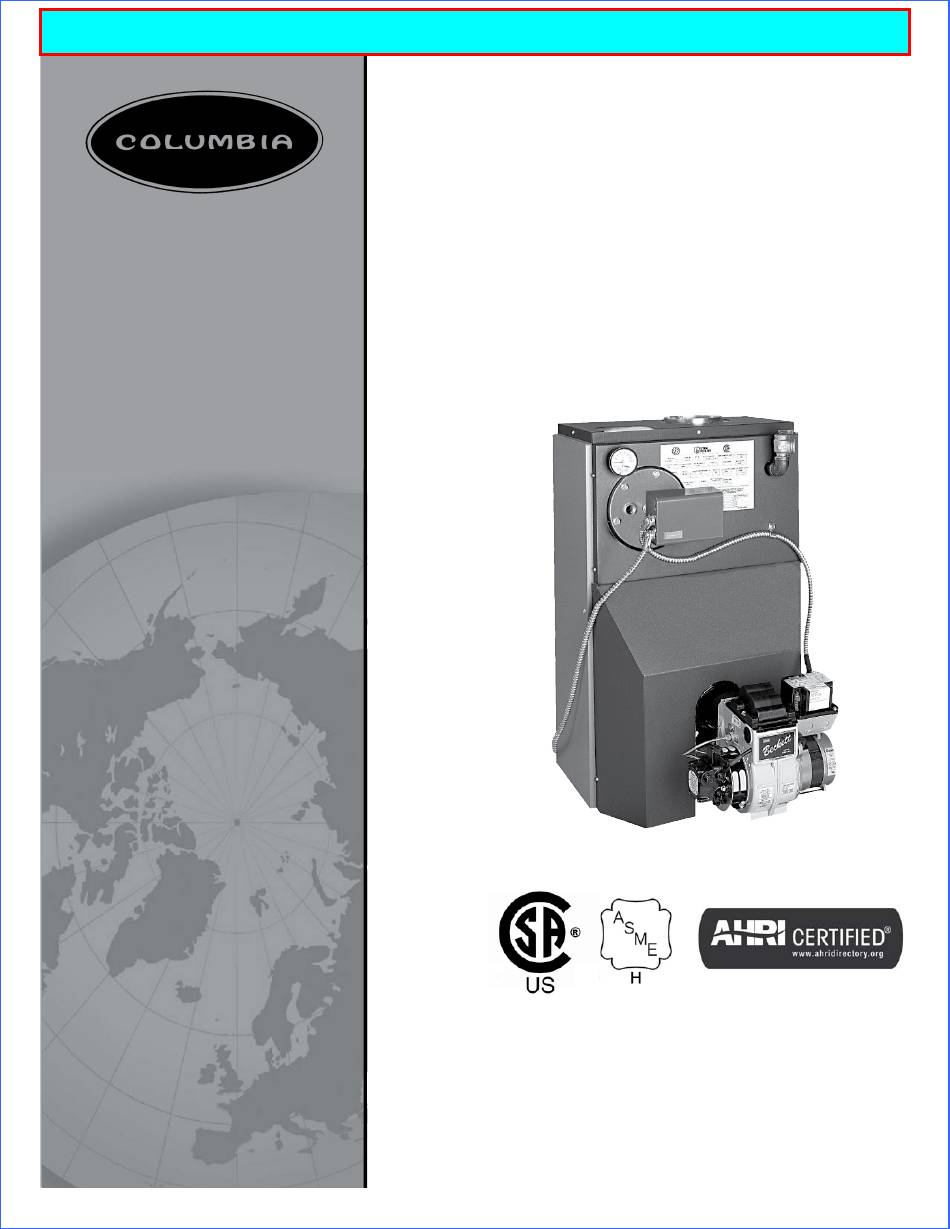

  • Page 1 CLICK ANYWHERE on THIS PAGE to RETURN to COLUMBIA BOILERS & FURNACES at InspectApedia.com CSFH SERIES 4  WATER OIL FIRED CAST IRON BOILER INSTALLATION, OPERATION & OLUMBIA P.O. Box 24202, MAINTENANCE MANUAL Baltimore, Maryland 21227 Models CSFH-3085 CSFH-3100 CSFH-4100 CSFH-4125...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Dimensions ........................3 Boiler Ratings & Capacities ....................4 Introduction ........................5 Ventilation & Combustion Air .................... 6 Connecting Supply And Return Piping ................9 System Piping ......................13 Venting System Inspection & Installation ................. 16 Oil Tank And Piping ....................... 17 Electrical Wiring ......................
  • Page 3: Dimensions

    DIMENSIONS DIMENSIONAL DATA FRONT OF DEPTH DIA. BOILER CASING SECTION TO CENTER LINE FLUSH FLUE JACKET OUTLET FLUE OUTLET 17 ⅞" 11 ¼" 6" 21 ½" 12 ⅝" 6" 25 ⅛" 14 ¼" 7" 29¼ 15 ¹⁵/ ” 8”...
  • Page 4: Boiler Ratings & Capacities

    BOILER RATINGS & CAPACITIES BOILER RATINGS OIL BURNER HEATING A.F.U.E. CHIMNEY BOILER RATINGS INPUT CAPACITY MODEL WATER NUMBER *Mbh *Mbh *Mbh CSFH-3085W CSFH-3085WT 0.85 85.0% 8X8X15 CSFH-3100W CSFH-3100W T 1.00 84.0% 8X8X15 CSFH-4100W CSFH-4100WT 1.00 86.0% 8X8X15 CSFH-4125W CSFH-4125WT 1.25 85.0% 8X8X15 CSFH-4145W...
  • Page 5: Introduction

    INTRODUCTION WARNING WARNING Improper installation, adjustment, alteration, service Fire hazard. Do not install boiler on combustible or maintenance could result in death or serious fl ooring or carpeting. Failure to follow these injury. instructions could result in death or serious injury. Boiler must not be installed on carpeting or vinyl fl...
  • Page 6: Ventilation & Combustion Air

    VENTILATION & COMBUSTION AIR WARNING Asphyxiation, fi re hazard. Do not obstruct air openings to combustion area. Follow instructions below, to maintain adequate combustion air. COMBUSTION AIR REQUIREMENTS (MINIMUM OPENING IN SQUARE INCHES) *UNCONFINED AREA **CONFINED AREA OUTSIDE INSIDE OUTSIDE COMBUSTION AIR COMBUSTION AIR COMBUSTION AIR...
  • Page 7 VENTILATION & COMBUSTION AIR When air for combustion and room ventilation is from B. When communicating with the outdoors by means inside buildings, confi ned space shall be provided with of vertical ducts, each opening shall have a two permanent openings, one starting 12 inches from minimum free area 1 square inch per 4,000 Btu per the top and one 12 inches from the bottom of the hour of total input rating of all appliances in the...
  • Page 8 VENTILATION & COMBUSTION AIR Figure #2 Figure #3 Figure #4...
  • Page 9: Connecting Supply And Return Piping

    CONNECTING SUPPLY AND RETURN PIPING Connect supply and return piping as suggested in Hot water boilers installed above radiation level must Figure #5, below. When boiler is used in connection be provided with low water device either as part of with refrigerated systems: boiler or at time of boiler installation.
  • Page 10 CONNECTING SUPPLY AND RETURN PIPING A. This method is used to protect boilers from C. This method is used to protect boilers from condensate forming due to low temperature return condensate forming as well as protecting heating water. Generally noticed in large converted gravity system from high water temperature.
  • Page 11 CONNECTING SUPPLY AND RETURN PIPING Figure #7 - Mixing Valve Piping Figure #8 - Primary Secondary Piping With Bypass...
  • Page 12 CONNECTING SUPPLY AND RETURN PIPING Typical installation using circulators is shown in Figure Typical installation using zone valves is shown in Figure #10. Figure #9 - Primary Secondary Piping With Bypass Figure #10 - Primary Secondary Piping With Bypass...
  • Page 13: System Piping

    SYSTEM PIPING WARNING Burn or Scald Hazard. Discharge line shall be installed to relief valve outlet connection to avoid burns, scalding, or water damage due to discharge of steam and/or hot water during operation. Discharge line shall: • Connect to safety valve outlet. Piped down to safe point of disposal. Check local codes for maximum distance from fl...
  • Page 14 CONNECTING SUPPLY AND RETURN PIPING Figure #12 - Recommended Piping For Boilers Equipped With T3 Or T4 Tankless Heater DANGER Water temperatures exceeding 125°F will cause severe burns instantly or death by scalding. • Automatic mixing valve must be installed on outlet of domestic coil.
  • Page 15 CONNECTING SUPPLY AND RETURN PIPING OPTIONS UTILIZING 3/4” TAPPING Figure #13 - Optional Location For Air Vent Figure #14 - Optional Location For Expansion Tank (Non-Diaphragm Type)
  • Page 16: Venting System Inspection & Installation

    VENTING SYSTEM INSPECTION & INSTALLATION INSPECT CHIMNEY to make certain it is constructed Figure #15 according to latest revision of the NFPA 211. Local codes may differ from this code and should be checked. Where there is a confl ict, local code will prevail. •...
  • Page 17: Oil Tank And Piping

    OIL TANK AND PIPING • Install burner per instructions provided with burner-in- oil pressure at nozzle. a-box kit. • Do not run overhead fuel lines from tank to oil burner. • Install oil tank and piping in accordance with the •...
  • Page 18: Electrical Wiring

    ELECTRICAL WIRING Sequence Of Operations WARNING On call for heat, thermostat will actuate, completing Electrical shock hazard. Turn OFF electrical power supply circuit to limit. In turn, circulator and ignition systems are at service panel before making electrical connections. activated and ignition will begin. Failure to do so could result in death or serious injury.
  • Page 19 ELECTRICAL WIRING Figure #18 - Wiring Diagram Beckett AFG with or without Tankless Heater Note: Limit control program based on use with or without tankless heater. Refer to Beckett AquaSmart™ Product Manual provided with boiler for additional information.
  • Page 20: Operating Instructions

    OPERATING INSTRUCTIONS Operating Instructions Do not set fi re visually. Instruments are only reliable method to determine proper air adjustments. Inspect venting system at start of each heating season. Improperly adjusted burner causes soot and high fuel bills Check vent pipe from boiler to chimney for signs because of incomplete combustion of fuel oil.
  • Page 21 OPERATING INSTRUCTIONS C. Power failure - Turn off main power supply switch electrical disconnect. See Figure #20. while burner is operating. When burner stops, Loosen screws on the sides of lower front jacket panel. restore power and burner should start. See Figure #20.
  • Page 22 OPERATING INSTRUCTIONS BECKETT AFG SETTINGS PUMP BOILER HEAD HEAD STATIC NOZZLE PRESSURE TYPE SETTING PLATE BAND SHUTTER [PSI] CSFH-3085 3⅜ 0.75-60°B CSFH-3100 3⅜ 0.85-60°B CSFH-4100 2¾ 0.85-60°B CSFH-4125 2¾ 1.10-60°B CSFH-4145 2¾ 1.25-60°B CSFH-5160 2¾ 1.35-70°B CSFH-5185 2¾ 1.50-70°B CSFH-6175 1.50-70°B CSFH-6210 1.75-70°B...
  • Page 23 OPERATING INSTRUCTIONS Figure #20 Instructions For Closing Burner Swing Door Swing burner and door to right until insulation is slightly compressed and stud is exposed. Attach nut to stud and tighten until built in stop contacts the mounting door. Replace oil line to burner. Replace lower jacket panel, and tighten screws.
  • Page 24 If any parts are found fl ood conditions; or operated with water conditions and/or fuels or additions to be defective in manufacture, during this one year period, Columbia will supply a which cause unusual deposits or corrosion in or on the iron sections.
  • Page 25 NOTES...
  • Page 26 NOTES...
  • Page 28 Columbia P.O. Box 24202, Baltimore, Maryland 21227...
