Columbia MCB50 Installation, Operation & Maintenance Manual

Columbia MCB50 Installation, Operation & Maintenance Manual

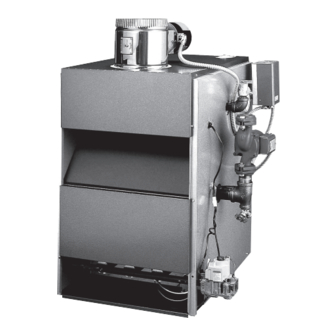

Mcb series cast iron gas fired boilers for forced hot water

Advertisement

MODEL NUMBERS:
MCB50
MCB75
MCB100
MCB125
MCB150
MCB175
MCB200
MCB250
MCB300
MCB SERIES
Cast Iron Gas Fired Boilers
For Forced Hot Water
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
C
C
olumbia
ompany
Main offices and Factory:
Pottstown, PA
37612101
P/N
, Rev. E [05/2012]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCB50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Columbia MCB50

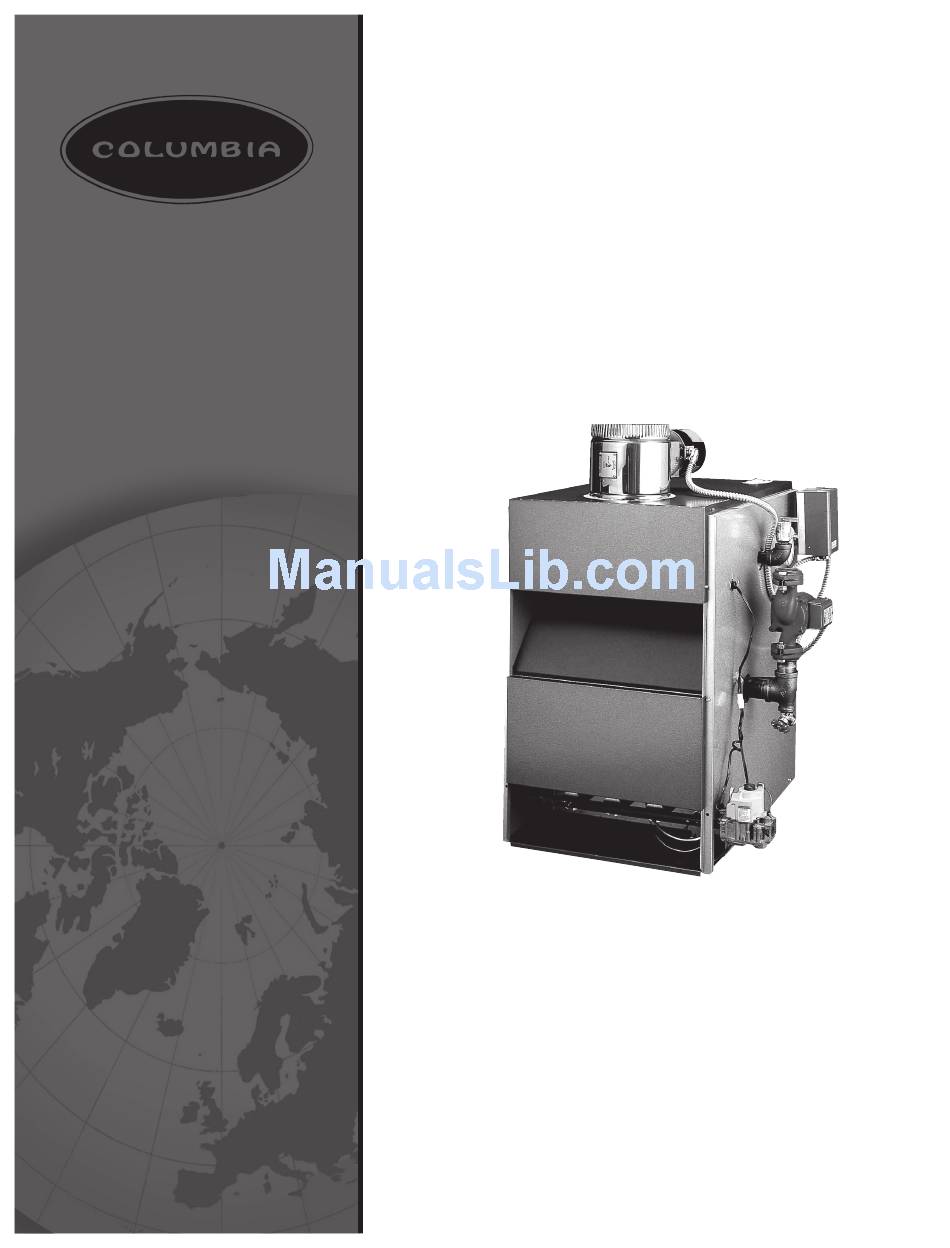

  • Page 1 MCB SERIES Cast Iron Gas Fired Boilers For Forced Hot Water INSTALLATION, OPERATION & MAINTENANCE MANUAL MODEL NUMBERS: MCB50 MCB75 MCB100 MCB125 MCB150 MCB175 MCB200 MCB250 MCB300 olumbia ompany Main offices and Factory: Pottstown, PA 37612101 , Rev. E [05/2012]...
  • Page 2: Table Of Contents

    INSTALLATION, OPERATION AND MAINTENANCE MANUAL KEEP THIS MANUAL NEAR BOILER Ratings & Data - Natural Gas & Propane Gas ... 3 RETAIN FOR FUTURE REFERENCE Dimensions ............4 Installation Procedure ..........5 IMPORTANT: Read the following instructions Ventilation & Combustion Air ......... 6 COMPLETELY before installing!! Connecting Supply and Return Piping .....
  • Page 3: Ratings & Data - Natural Gas & Propane Gas

    RATINGS & DATA - NATURAL GAS & PROPANE GAS EXPLANATORY NOTES All boilers are design certified for installation on noncombustible floor. For installation on combustible floors use combustible floor kit. Recommended chimney height 20 feet. In special cases where conditions permit, chimney height may be reduced to 10 feet.
  • Page 4: Dimensions

    DIMENSIONS...
  • Page 5: Installation Procedure

    INSTALLATION PROCEDURE FOR INSTALLATION ON NON-COMBUSTIBLE WARNING FLOORS ONLY - For installation on combustible flooring special base must be used. (See Replacement Improper installation, adjustment, alteration, Parts Section.) Boiler can not be installed on service or maintenance can cause injury or carpeting.
  • Page 6: Ventilation & Combustion Air

    VENTILATION & COMBUSTION AIR Provide combustion air and ventilation air in accordance • All Outdoor Air. Provide permanent opening(s) with the section “Air for Combustion and Ventilation,” of the communicating directly or by ducts with outdoors. National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Sections о...
  • Page 7: Connecting Supply And Return Piping

    CONNECTING SUPPLY AND RETURN PIPING WARNING To avoid burns, scalding, or water damage due to discharge of steam and/or hot water during operation, a discharge line shall be installed to relief valve outlet connection. Discharge line shall: • connect to relief valve outlet and piped down to safe point of disposal. Check local codes for maximum distance from floor or allowable safe point of discharge.
  • Page 8: Connecting Supply And Return Piping

    CONNECTING SUPPLY AND RETURN PIPING IMPORTANT: Circulators in the following illustrations are mounted on the system supply side, but mounting on the system return side is also acceptable practice. Figure 5 - Circulators Mounted on System Supply SEPARATOR The boiler, when used in connection with a refrigeration Bypass piping is an option which gives the ability to system, must be installed so the chilled medium is adjust the supply boiler water temperature to fit the...
  • Page 9 CONNECTING SUPPLY AND RETURN PIPING Figure 6 - Bypass Piping Automatic Mixing Valve FROM SYSTEM TO SYSTEM WATER INLET EXPANSION TANK BOILER ALTERNATE CIRCULATOR LOCATION PRESSURE BALL VALVE AIR SEPARATOR CIRCULATOR REDUCER VALVE SHUT-OFF 3 WAY MIXING CHECK VALVE HOSE BIB VALVE VALVE Figure 7 - Bypass Piping - Fixed Low Temp Only Automatic Mixing Valve...
  • Page 10 CONNECTING SUPPLY AND RETURN PIPING Figure 8 - Single Zone System With DHW Priority Figure 9 - Multi Zone System With Circulators And DHW Priority...
  • Page 11 CONNECTING SUPPLY AND RETURN PIPING Figure 10 - Multi Zone System With Zone Valves And DHW Priority (With Circulator) Figure 11 - Multi Zone System With Zone Valves And Dhw Priority (With Zone Valve)
  • Page 12: Vent Installation

    VENT INSTALLATION This boiler series is classified as a Category I. Vent WARNING installation shall be in accordance with "Venting of Equipment," of the National Fuel Gas Code, ANSI All installations of boilers and venting should Z223.1/NFPA 54, or "Venting Systems and Air Supply be done only by a qualified expert and in for Appliances,"...
  • Page 13: Vent Damper Installation & Instructions

    VENT DAMPER INSTALLATION & INSTRUCTIONS DAMPER INSTRUCTIONS DAMPER INSTALLATION NOTE: Refer to Figure 11 for steps 1-6. Figure 13 - Vent Damper Placement Figure 12 - Damper Motor Wiring Place Vent Damper on or as close to vent outlet of Verify only boiler is serviced by Vent Damper.
  • Page 14: Connecting Gas Service

    CONNECTING GAS SERVICE General CAUTION • Use piping materials and joining methods acceptable WHAT TO DO IF YOU SMELL GAS to authority having jurisdiction. In absence of such requirements: • Do not try to light any appliance. • USA - National Fuel gas Code, ANSI Z223.1/NFPA 54 •...
  • Page 15: Electrical Section

    ELECTRICAL SECTION WARNING Electrical shock hazard. Turn OFF electrical power supply at service panel before making electrical connections. Failure to do so could result in death or serious injury. ELECTRICAL WIRING See wiring diagrams on the following two pages for details.
  • Page 16: Wiring Diagram - 24V Standing Pilot

    WIRING DIAGRAM - 24V STANDING PILOT VR8200 VR8300...
  • Page 17: Wiring Diagram - Intermittent Ignition

    WIRING DIAGRAM - INTERMITTENT IGNITION...
  • Page 18: Lighting Instructions

    LIGHTING INSTRUCTIONS D. Do not use this appliance if any part has been under WARNING water. Immediately call a qualified service technician to inspect appliance and to replace any part of control If you do not follow these instructions exactly, system and any gas control which has been under a fire or explosion may result, causing water.
  • Page 19 LIGHTING INSTRUCTIONS LIGHTING PROCEDURE FOR BOILER WITH Figure 17 - Continuous Pilot CONTINUOUS PILOT For Your Safety, Read Before Lighting!! Read the warning at the beginning of "Lighting Instructions." This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly.
  • Page 20: Normal Sequence Of Operation

    NORMAL SEQUENCE OF OPERATION On a call for heat, the thermostat will actuate, Figure 18 - Blocked Vent Safety Switch, Roll-out completing the circuit to the control. The Safety Switch completed circuit to the control will first activate Intergral Draft the circulator and damper which will close an end switch inside the damper.
  • Page 21 GENERAL INSTRUCTIONS When the cleaning process is complete, restore the boiler Figure 21 - Gas Burner Pilot components to their original position. Use IS-808 GE silicone (available from a distributor) to seal around the flue collector and boiler castings. A visual check of the main burner and pilot flames should be made at the start of the heating season and again in mid-season.
  • Page 22: Checking Gas Input Rate To Boiler

    CHECKING GAS INPUT RATE TO BOILER Gas input to the boiler can be adjusted by removing the Figure 22 - High Limit Control Location protective cap on the pressure regulator, and turning the screw clockwise to increase input and counterclockwise to decrease input.
  • Page 23: Replacement Parts - Base

    REPLACEMENT PARTS - BASE BOILER BASE UTICA BOILERS, INC. PART NO.: DRAWN BY: REV: A1520 DATE: 4/28/97 NOTE: DO NOT ALTER THIS MASTER Item Item Description Part # Qty. Description Part # Qty. BURNER TUBE 1 1/2" - 50 SCREW ¼ - 20 X ½ SELF TAP HW-005.01 BURNER TUBE 1 1/2"...
  • Page 24: Heat Exchanger

    REPLACEMENT PARTS - HEAT EXCHANGER HEAT EXCHANGER Fully Assembled Heat Exchangers 912000001 Heat Exchanger (2 Section) 912000002 Heat Exchanger (3 Section) 912000003 Heat Exchanger (4 Section) 912000004 Heat Exchanger (5 Section) 912000005 Heat Exchanger (6 Section) 912000006 Heat Exchanger (7 Section) ROLLOUT &...
  • Page 25 REPLACEMENT PARTS - JACKET BOILER JACKET Item Item DESCRIPTION Part Number Qty. DESCRIPTION Part Number Qty. PANEL - TOP 50 31621501 PANEL - RIGHT 50-200 3162705 PANEL - RIGHT 225-300 3162703 PANEL - TOP 75 & 100 31621502 PANEL - REAR 50 3162601 PANEL - TOP 125 31621503...
  • Page 26 REPLACEMENT PARTS - PILOT STANDING PILOT Spark Pilot Kit - Natural Gas 550001911 Spark Pilot Kit - LP/Propane 550001912 Item Description Qty. PILOT BRACKET ASSEMBLY BRACKET SCREW SPARK CABLE PILOT TUBING, 1/8" x 24" Natural Gas Q345A PILOT LP Q345A Pilot Pilot Shield * Included with #3 - Pilot Tube Assembly Kit (above) CONTINUOUS PILOT...
  • Page 27 REPLACEMENT PARTS - PIPING & CONTROLS PIPING & CONTROLS ITEM DESCRIPTION QTY. WIRE ROLLOUT/SPILL 28" 37513301 HARNESS IGN TO G/V 18" 37413602 PILOT IGNITION CABLE 30" PB00702 PIPE - NPL 1.1/4X4.1/2 NPT PF-006.07 DRAIN - SHORT HW-016.03 PIPE - TEE 1.1/4X3/4X1.1/4 PF-008.03 PIPE - 1.1/4"...
  • Page 28 Columbia Company Main offices and factory Pottstown, PA...
