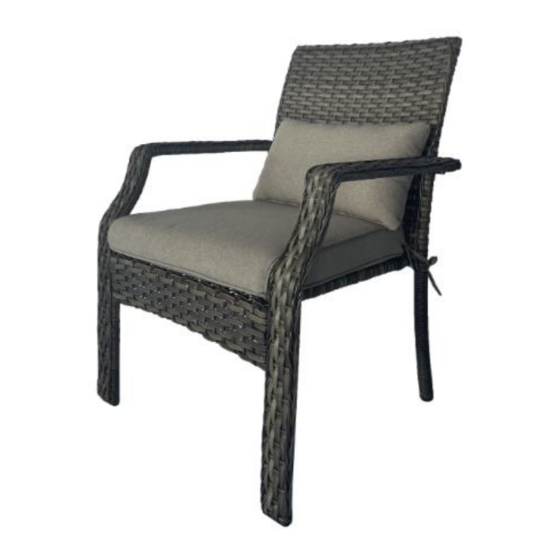

- Page 1 ROCKBRIDGE ALL WEATHER WICKER 4PK DINING CHAIR WITH SEAT CUSHION AND LUMBAR PILLOW ASSEMBLY INSTRUCTIONS ITEM# : GBO23-901C4 SKU# : 810580329 Need help? We are here for you! 1-888-733-8169 Toll Free Or email us at customerservice_01@yeah.net,customerservice_02@yeah.net customerservice_03@yeah.net...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Number of the hardware corresponds to its letter in the package Helpful hints provided along the way WARNINGS: Use the correct screws as indicated.
- Page 3 PARTS LIST FOR 1 CHAIR 1PC Left Arm 1PC Right Arm 1PC Chair back 1PC Seat Panel 1PC Seat Cushion 1PC Lumbar Pillow HARDWARE LIST FOR 1 CHAIR 2PC Big Washer 4PC Screw(φ8x35mm) 4PC Screw(φ6x35mm) 1PC Allen Wrench 4PC Spring Washer 4PC Small Washer...
- Page 4 STEP 1 Secure chair back (B) to left arm (A1) with 1 screw (E) by using allen wrench (G). Do not fully tighten screws now. STEP 2 Secure right arm (A2) to the other side of assembled chair back (B) with 1 screw (E) by using allen wrench (G).
- Page 5 STEP 3 Secure seat panel (C) to assembled chair arms (A1. A2) with 4 screws (F), 4 small washers (I) and 4 spring washers (H) by using allen wrech (G). Do not fully tighten screws now. STEP 4 Secure seat panel (C) to assembled chair back (B) with 2 big washers (D) and 2 screws (E) by using allen wrench (G).
- Page 6 STEP 5 Put seat cushion (J) and lumbar pillow (K) on the chair. The chair is assembled. Warranty One year limited warranty. Proof of purchase (dated register receipt) is required for warranty claims. It remains the customer's responsibility for freight and packing charges to and from the service center.
