Operation and maintenance instructions

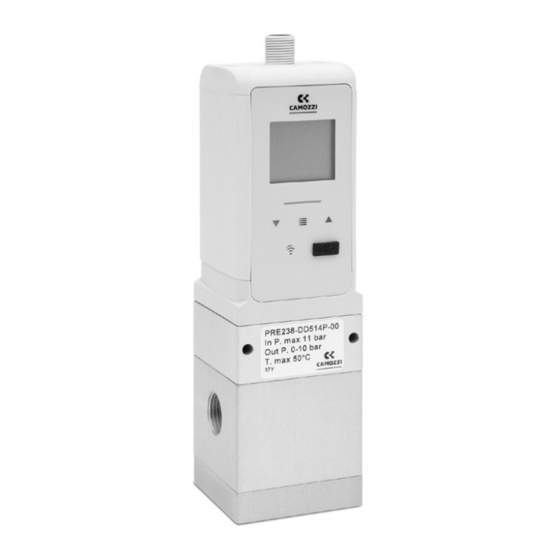

Series PRE proportional pressure regulator
Operation and maintenance instructions for Series PRE Electronic proportional
The products are designed and manufactured in conformity with the following directives:
-
2014/30/UE "Electromagnetic compatibility"
They also comply partially or totally with regard to the applicable parts of the following standards:
-
EN 61000-6-2:2005 Electromagnetic compatibility (EMC) — Part 6-2:
Generic standards - Immunity for industrial environments
-
EN 61000-6-4:2007 Electromagnetic compatibility (EMC) — Part 6-4: Generic standards -
Emissions for industrial environments
-
UL 61010-1: Safety requirements for electrical equipment for measurement, control and
laboratory use Part 1: General requirements and the following technical standards
and to the following technical standards:
-
EN ISO 4414:2010 Pneumatics - General rules and safety requirements for systems and their
components.
For more information regarding the declarations of conformity, see the Certifications section
on the website http://catalogue.camozzi.com.
External sensor version
regulator
1
5000056022
Ver. 00
Made in Italy
