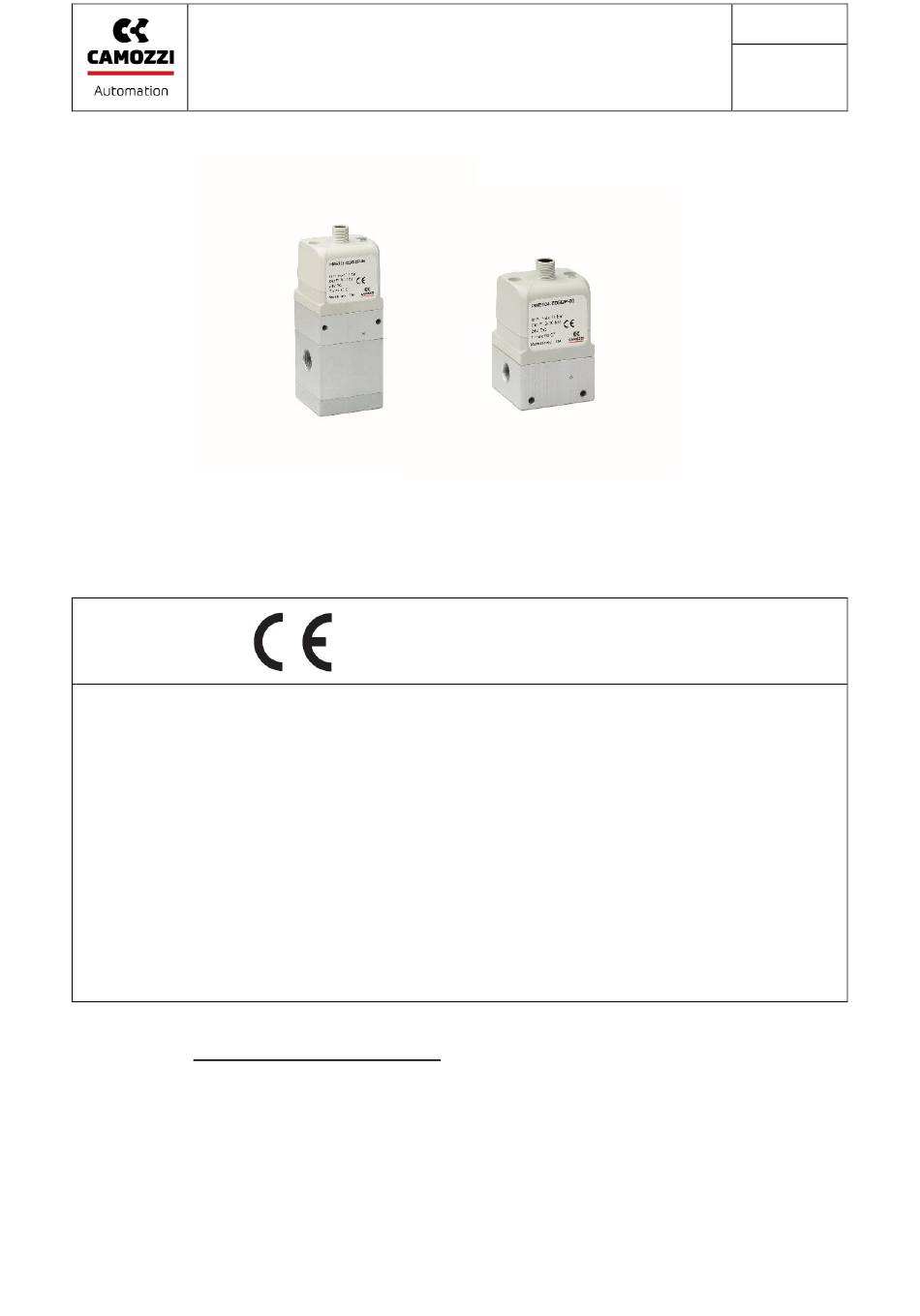

Operation and maintenance instructions

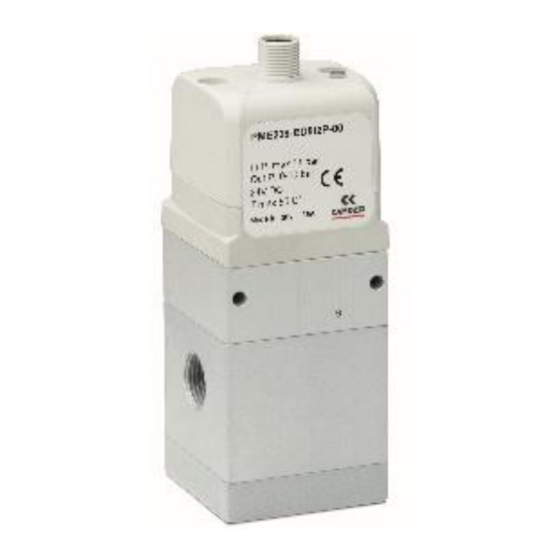

Series PME proportional pressure regulator
Operation and maintenance instructions for Series PME Electronic proportional
The products are designed and manufactured in conformity with the following directives:
-
2014/30/UE "Electromagnetic compatibility"
They also comply partially or totally with regard to the applicable parts of the following standards:
-
EN 61000-6-2:2005 Electromagnetic compatibility (EMC) — Part 6-2:
Generic standards - Immunity for industrial environments
-
EN 61000-6-4:2007 Electromagnetic compatibility (EMC) — Part 6-4: Generic standards -
Emissions for industrial environments
-
UL 61010-1: Safety requirements for electrical equipment for measurement, control and
laboratory use Part 1: General requirements and the following technical standards
and to the following technical standards:
-
EN ISO 4414:2010 Pneumatics - General rules and safety requirements for systems and their
components.
For more information regarding the declarations of conformity, see the Certifications section
on the website http://catalogue.camozzi.com.
regulator
1
5000044242
Ver. 01
Made in Italy
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Camozzi PME Series
Summary of Contents for Camozzi PME Series
- Page 1 Part 1: General requirements and the following technical standards and to the following technical standards: EN ISO 4414:2010 Pneumatics - General rules and safety requirements for systems and their components. For more information regarding the declarations of conformity, see the Certifications section on the website http://catalogue.camozzi.com.
-
Page 2: Table Of Contents
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 Sommario Product identification ........................3 Introduction ..........................4 General recommendations ......................4 Product description: ........................5 Pneumatic simbol:........................6 General characteristics and conditions of use ................7 Electrical/Pneumatic circuit ....................... 15 Product storage and transport.................... -
Page 3: Product Identification
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 1. Product identification... -
Page 4: Introduction
• For all situations not contemplated in this manual and in situations in which there is the risk of potential damage to objects, or injury to persons or animals, contact Camozzi for advice. • Never make unauthorized modifications to the product. In this case, any damage or injury to objects, persons or animals will be the responsibility of the user. -
Page 5: Product Description
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • Avoid cleaning with aggressive agents such as to dull the plastics and make it difficult to read the screen • In the event of an electrical power failure and pneumatic supply at the port connection 1, the regulated pressure on port connection 2 will not be maintained and can be discharged. -
Page 6: Pneumatic Simbol
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 5. Pneumatic simbol: Version with integrated Version with integrated exhaust valve and external exhaust valve and internal servo-pilot supply servo- pilot supply 3 ways N.C. version with external 3 ways N.C. -
Page 7: General Characteristics And Conditions Of Use
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 6. General characteristics and conditions of use General characteristics and conditions of use PME1 PME2 Reference standards CE; RoHs Materials Body: Aluminum Cover: Technopolymer Seal:NBR and FKM Assembly position Overall dimensions L = 50 mm;... - Page 8 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 Max 0,200A in case of versions with VS function Hysteresis (*) 0,5% FS 0,7% FS Repeatability (*) 0,4% FS 0,4% FS Linearity (*) 0,3% FS 0,3% FS Resolution (*) 0,3% FS 0,6% FS Overpressure discharge...
- Page 9 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • Efficiency curve Efficiency curve 10,33 bar y = 0,1033x Electrical control signal [%]...
- Page 10 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • FLOW CHARTS SIZE 1 - Standard version (1/4G) Typical curve of flow rate from 0,5 to 6 bar Typical curve of flow rate from 0,5 to 7 bar P = Regulated outlet pressure and exhaust pressure P = Regulated outlet pressure and exhaust pressure Q = Flow...
- Page 11 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • FLOW CHARTS SIZE 1 – Manifold version (1/4G) Typical curve of flow rate from 0,5 to 6 bar Typical curve of flow rate from 0,5 to 7 bar P = Regulated outlet pressure and exhaust pressure P = Regulated outlet pressure and exhaust pressure Q = Flow...
- Page 12 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • FLOW CHARTS SIZE 2 - Standard version (1/4G) Typical curve of flow rate from 0,5 to 6 bar Typical curve of flow rate from 0,5 to 7 bar P = Regulated outlet pressure and exhaust pressure P = Regulated outlet pressure and exhaust pressure Q = Flow...
- Page 13 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • FLOW CHARTS SIZE 2 - Standard version (3/8G) Typical curve of flow rate from 0,5 to 6 bar Typical curve of flow rate from 0,5 to 7 bar P = Regulated outlet pressure and exhaust pressure P = Regulated outlet pressure and exhaust pressure Q = Flow...
- Page 14 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • Step response (Values determined according to ISO 10094-1) PME-104 Type of Dynamic tests Dynamic Characteristics No tank Volume 0,4L Volume 2L Shifting Time [ms] Step 0% to 100% Response Time [ms] 1.261 Settling Time [ms]...
-
Page 15: Electrical/Pneumatic Circuit
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 7. Electrical/Pneumatic circuit 8. Product storage and transport • Adopt all measures possible to avoid accidental damage to the product during transport, and when available use the original packaging. •... - Page 16 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 • PME1 series electronic regulator can be connected to DIN rails using the relative elements PCF-E520 fitted on the rear of the body using two M4 threaded holes. •...
- Page 17 Series PME proportional pressure regulator Ver. 01 • There are 2 additional pneumatic ports on the PME series electronic regulator: o M5 to discharge the exhaust valve to the outside. It is important to keep this port free and clean to ensure that air is discharged without obstructions that could limit the flow.
- Page 18 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 ANALOG 24 VDC Power supply Connect to the positive pole (24VDC) and to the negative pole (GND) of the power supply Input of voltage (0-10V) or current (4-20mA) reference signal Connect to the positive pole of the reference signal generator.
-
Page 19: Digital Output
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 10. Digital output The digital output (OUT signal, pin 5) is a 0-24V digital signal. Through the NFCamApp application it is possible to set the logic of this output: •... -
Page 20: Nfcamapp
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 11. NFCamApp NFCamApp is a configuration application that can be installed on android mobile device and available on Play Store. NFCamApp communicates with the Series PME electronic pressure regulator via NFC connection and is able to configure the device. -
Page 21: Information
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 11.1. Information This section ( ) displays the information about selected device. o Type: description of device type o Subtype: description of device sub-type o Firmware: firmware version o WiFi connection: indicates if the WiFi connection is present (not available for the Series PME electronic pressure regulator) o Fieldbus: indicates if the fieldbus connection is present (not available for the Series... -
Page 22: Configurator
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 11.2. Configurator By clicking on the button it is possible to open the configurator. Two not editables parameters are showed: • Set Point Signal: indicates the input type signal available, “Current” (4-20mA) or “Voltage” (0-10V). -
Page 23: Digital Output Setup
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 This function enables the user to limit the regulated pressure range with respect to the nominal range while continuing to use the entire range of the analog input signal on the PME series electronic regulator. -
Page 24: Password
If you forget the customized password, it will no longer be possible to modify the regulator parameters (in this case, contact the Camozzi Service to reset the regulator password to the factory settings). The password is not required to view the parameters. -
Page 25: Limitations On Use
13. Limitations on use • Never exceed the technical specifications stated in the paragraph "General characteristics" and the Camozzi general catalogue. • With the exception of specific intended applications, do not use the product in environments where there is the risk of direct contact with corrosive gas, chemical products, salt water, water or steam. - Page 26 5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01...
-
Page 27: Contacts
5000044242 Operation and maintenance instructions Series PME proportional pressure regulator Ver. 01 16. Contacts Camozzi Automation S.p.A. Società Unipersonale Via Eritrea, 20/I 25126 Brescia - Italy Tel. +39 030 37921 info@camozzi.com www.camozzi.com Product certification product certifications CE marking declarations of conformity and instructions productcertification@camozzi.com...
