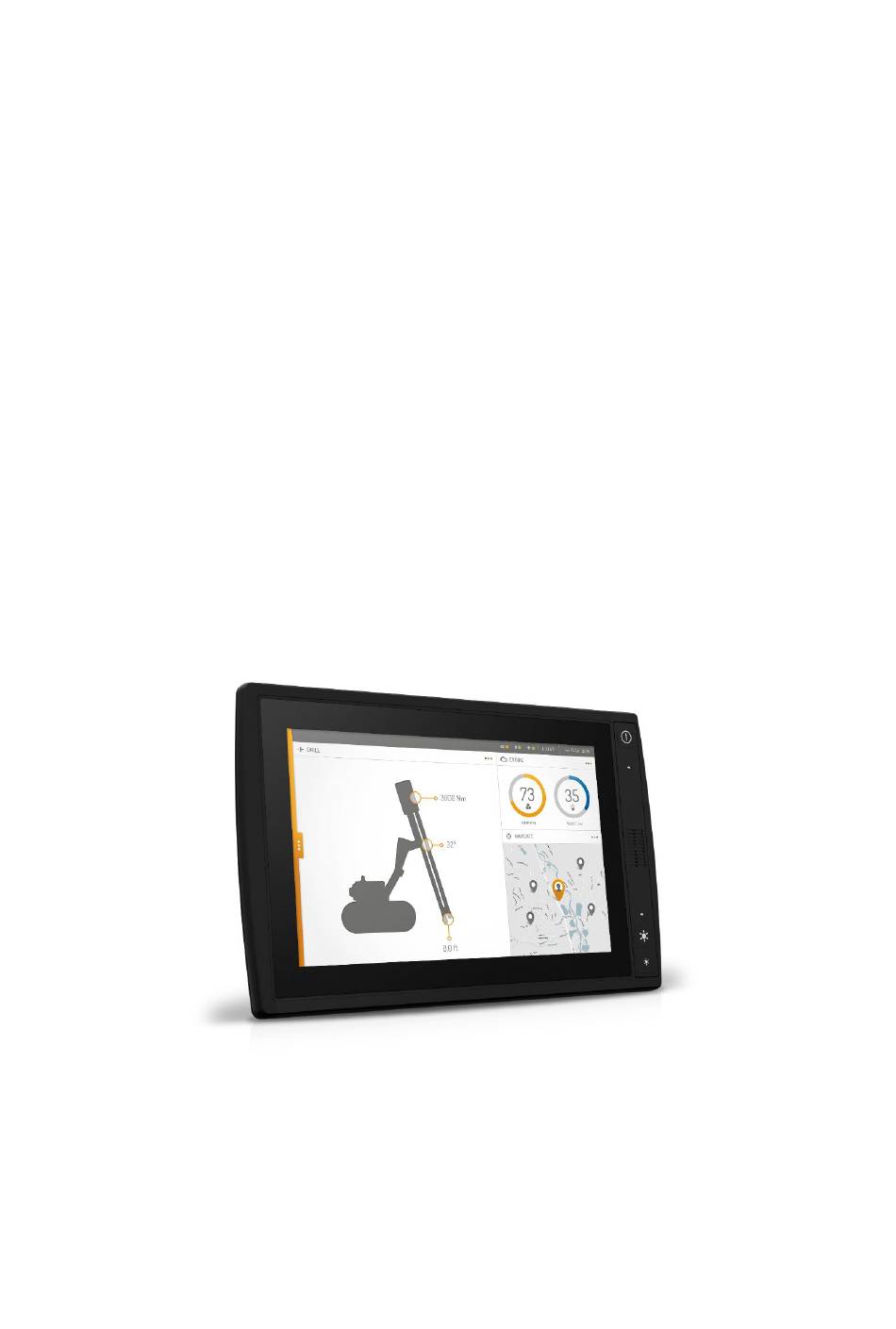

- Page 1 CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 CCpilot X1400 Technical manual...
-
Page 2: Table Of Contents
CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 Contents 1. Introduction ..........................3 1.1. Product Models ........................3 1.2. Conventions and Definitions ....................3 1.3. Identification ........................3 1.4. Maintenance and Care ..................... 3 1.5. Cleaning ..........................4 1.6. Environment and Environmental Tolerance ..............4 1.7. -
Page 3: Introduction
1.3. Identification On the side of the CCpilot X1400 device there is a label containing version and serial number to identify your unique computer. Take note of them. During service and other contact with the supplier it is important to be able to provide this information. -
Page 4: Cleaning
1.6. Environment and Environmental Tolerance The CCpilot X1400 device has been designed to cope with tough environmental demands. Strict tests have been conducted on the unit in order to ensure that it fulfils the expectations of a rugged unit. -
Page 5: Device Overview
CAN, Ethernet and USB. 2.1. Front Side On the front face of CCpilot X1400 there are buttons by default these are for switching the unit on/off and adjusting the screens brightness level, a speaker, status indicator and a light sensor. -
Page 6: Rear Side
Product revision: 1.0 Technical manual 2022-12-20 2.2. Rear Side The external connectors are located on the rear side of the CCpilot X1400, they are described in more detail in chapter 6 - Connectors. There are also mounting holes (M6) for fasteners in accordance with VESA 75. -
Page 7: Installation
CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 3. Installation Install the device in such a way that is considered safe and does not expose any unnecessary stress to the unit. In this section, some recommendations are made regarding installation. -
Page 8: Grounding
Proper grounding minimizes electrical emissions which is why CrossControl recommend grounding CCpilot X1400 properly using as short and wide ground strap as possible. Attach the ground strap with a screw next to the ground symbol on the backside of the unit. Use a M5 screw with a maximum length of 10mm using the same procedure as described in mounting. -
Page 9: Cable Installation
Product revision: 1.0 Technical manual 2022-12-20 When CCpilot X1400 or any other device is installed in a vehicle environment it is • important that the installation is traffic-safe. CrossControl does not recommend that CCpilot X1400 or its accessories are used actively by the driver or operator when a risk of injury to people, or damage to property, is present. -
Page 10: Basic Operations
By selecting any of the operating systems shut-down alternatives. • CCpilot X1400 can also be turned off by pressing the On/Off button on the display for four seconds and then releasing it. The time can be adjusted in settings and it can also be disabled so that the unit cannot be shut down using the button, to prevent turning the computer off accidentally. -
Page 11: Adjusting The Screen Brightness
2022-12-20 4.3. Adjusting the Screen Brightness Press the respective brightness button to gradually increase or decrease the CCpilot X1400 display brightness. The brightness can also be controlled from software, which also allows for automatic adjustment of the brightness using the light sensor. -
Page 12: Interface Overview
5.2. Light Sensor A light sensor is placed in the front of the CCpilot X1400. Using this sensor, ambient light levels can be measured and used for example by software to automatically adjust the screen brightness. -
Page 13: Ethernet
EMC immunity. Be aware that connecting the device to a network environment can impose a security threat. 5.7. Fan Control The fan speed on CCpilot X1400 is controlled by the processor module and ON/OFF is controlled by the system supervisor. www.crosscontrol.com... -
Page 14: Connectors
X6 USB 2.0. In order to give the CCpilot X1400 its high environmental classification, the unit is equipped with DIN M12 connectors. CrossControl can provide adapter cables which convert from DIN M12 to other connector standards. - Page 15 CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 X6, X7, X8 – USB 2.0 Connector Default Comments M12 Speedcon signal Vbus Out Female, 5-pole Mini-B USB Housing Shield X9 - Fan Connector Default Comments DIN M12 x 1 signal Female, 4-pole...
-
Page 16: Specifications
CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 7. Specifications The specifications may vary depending on your computer configuration. 7.1. Connections Interface / Feature Number of Connections CAN bus USB 3.0 USB 2.0 Ethernet Audio 7.2. Technical Data Kernel Processor Intel®... -
Page 17: Environmental Tolerance
CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 Mic In Optional feature Status LED Tricolour LED status indicator with configurable behaviour Software Operating system Windows 10 Additional software CCsettings, CCvideo. API’s are available to access settings, video and other equipment from software Display 14.1”... - Page 18 CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 EMC Emission ISO 14982 Radiated Nar.b. Bro.b. dBμV/m dBμV/m 30-75 54-44 64-54 75-400 44-55 54-65 400-1000 Enclosure EN 60529 IP54 The tests were performed with 24 V power level. The environmental tolerance may be affected by external factors like mounting and shielded cables etc.
-
Page 19: Weight And Dimensions
CCpilot X1400 Product revision: 1.0 Technical manual 2022-12-20 7.4. Weight and dimensions Description Comments Dimensions 408 x 266 x 85 mm (W x H x D) Weight 5,5 kg www.crosscontrol.com... -
Page 20: Technical Support
Error codes signalled by the status LED Possible error messages which are shown. • Device log files (if possible). • Information regarding possible external equipment which is connected to the device. • • Additional sources of information are available on the CrossControl support site: http://support.crosscontrol.com www.crosscontrol.com... -
Page 21: Trademarks And Terms Of Use
CrossControl. CrossControl respects the intellectual property of others, and we ask our users to do the same. Where software based on CrossControl software or products is distributed, the software may only be distributed in accordance with the terms and conditions provided by the reproduced licensors.
