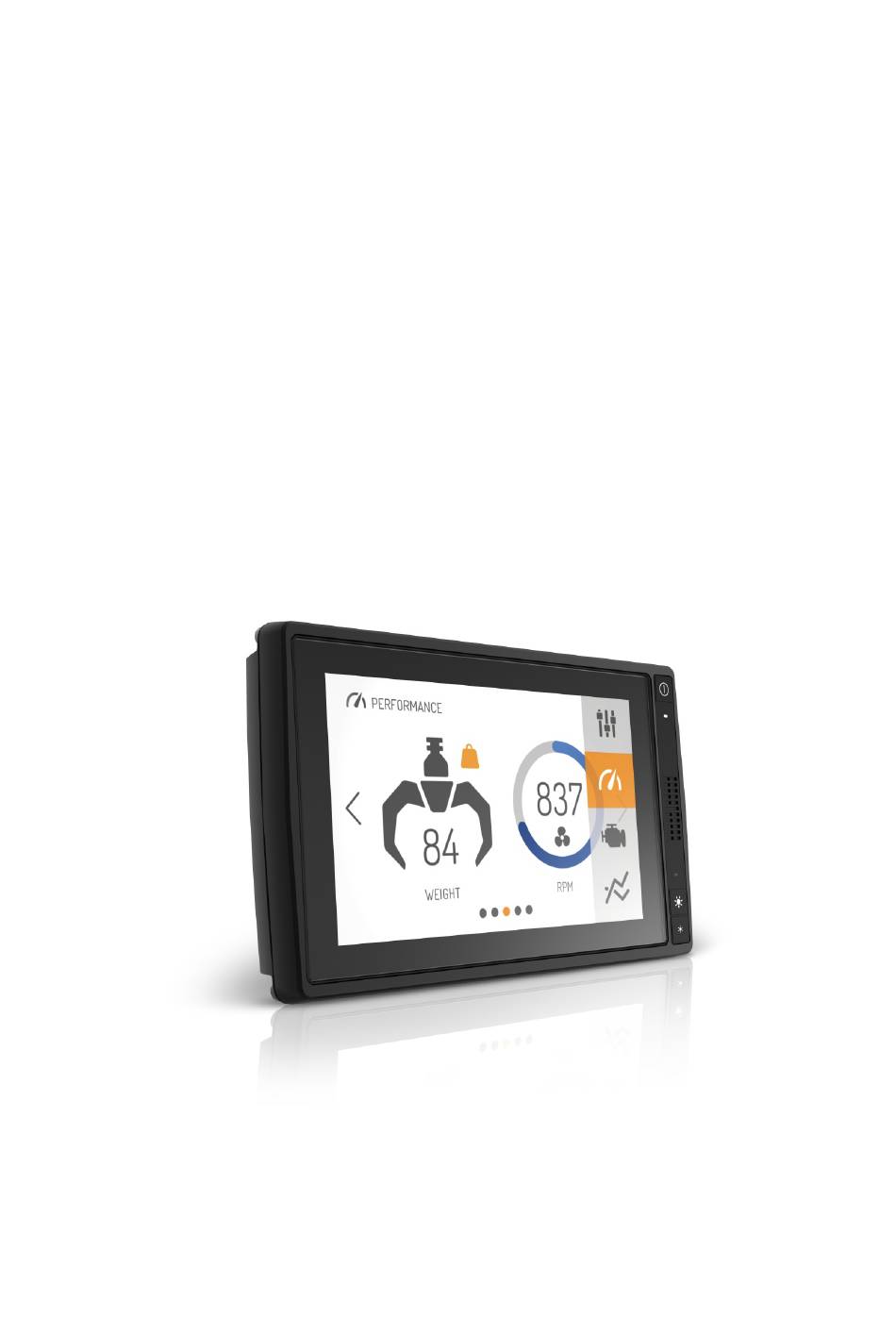

- Page 1 CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 CCpilot X900 Technical Manual www.CrossControl.com...
-
Page 2: Table Of Contents
CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 Contents Revision history ..........................3 Introduction ..........................3 1.1. Conventions and Definitions ....................3 1.2. Identification ..........................3 1.3. Care ............................3 1.4. Environment and Environmental Tolerances ..............4 ... -
Page 3: Revision History
Command names and important information 1.2. Identification On the side of the CCpilot X900 device there is a label containing version and serial numbers which identify your unique computer. Take note of them. During service and other contact with the supplier it is important to be able to provide these numbers. -
Page 4: Environment And Environmental Tolerances
The CCpilot X900 device is preferably placed in a way that prevents exposure to water contact. It is also important that it is mounted securely on a stand or the like to inhibit the unit from moving and thereby becoming damaged, damaging the vehicle and/or people during, for example, a traffic accident. -
Page 5: Front Panel
2020-02-03 2.1. Front Panel On the front face of the CCpilot X900 there is a touch screen, buttons for switching the unit on/off as well adjusting the screens brightness level, a speaker, status indicator and a light sensor. The on/off button can be programmed to perform other tasks than the default. -
Page 6: Installation
CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 3. Installation The device should be installed in such a way that is considered safe and does not expose any unnecessary stress to the unit. In this section, some recommendations are made regarding installation. -
Page 7: Mounting
Proper tightening requires clean dry bolts, and a torque wrench. When The CCpilot X900 or any device is installed in a vehicle environment it is important that the installation is traffic-safe. CrossControl does not recommend that the device or its www.CrossControl.com... -
Page 8: Cables
Shielded cables is recommended and in some cases necessary to ensure reliable communication and appliance with industrial EMC standards. Through adapter cables, as supplied by CrossControl, standard connectors can be connected to the unit. The installation of these adapter cables should be placed in a protected, moisture-free space and should be secured as well as strain-relived. -
Page 9: Powering The Unit Down
CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 While starting up the device, it will give a short beep and the status LED will flash yellow with 2 Hz. When the device enters operational state the status LED will be static green. -
Page 10: Adjusting The Screen Brightness
4.4. Using the Touch Screen The CCpilot X900 display is equipped with PCAP touch functionality which provides an intuitive HMI (Human-Machine Interface) for the user. 4.4.1. Double Click and Right Click through the Touch Screen A double click is performed by simply tapping the display twice in the appropriate space. -
Page 11: Speaker
Technical Manual 2020-02-03 5.3. Speaker A speaker that can be used for user notifications exists in the front of the CCpilot X900 device. The speaker is application controllable with adjustable volume. 5.4. Audio output The audio output can play everything from warning sound to music when the device is connected to a sound system. -
Page 12: Connectors Layout
CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 6.1. Connectors layout Notice that the connector descriptions are those which are located on the unit, not those that the attached cables shall have in order to mate with them. All directional reference is from a unit point of view. -
Page 13: Specifications
CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 Housing Shield X7, X8 – USB Connector Pin # Default signal Comments M12 Speedcon Vbus out 5 Volt female, 5-pole, Mini-B USB Housing Shielded 7. Specifications 7.1. Technical data Specifications Main Processor Intel Atom® x5-E3940 quad core CPU. -
Page 14: Environmental Tolerance
CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 Bit-rate configurable up to 5 Mbps. Supported bit-rates include (but are not limited to): 10 kbps, 20 kbps, 50 kbps, 100 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps, FD 250/500 kbps, FD... -
Page 15: Weight And Dimensions
CCpilot X900 Revision 1.1 Technical Manual 2020-02-03 30-75 54-44 64-54 75-400 44-55 54-65 400-1000 Enclosure EN 60529 IP65 Tests are performed with 24 V power level. The environmental tolerance may be affected by external factors like mounting and shielded cables etc. -
Page 16: Trademarks And Terms Of Use
CrossControl. CrossControl respects the intellectual property of others, and we ask our users to do the same. Where software based on CrossControl software or products is distributed, the software may only be distributed in accordance with the terms and conditions provided by the reproduced licensors.
