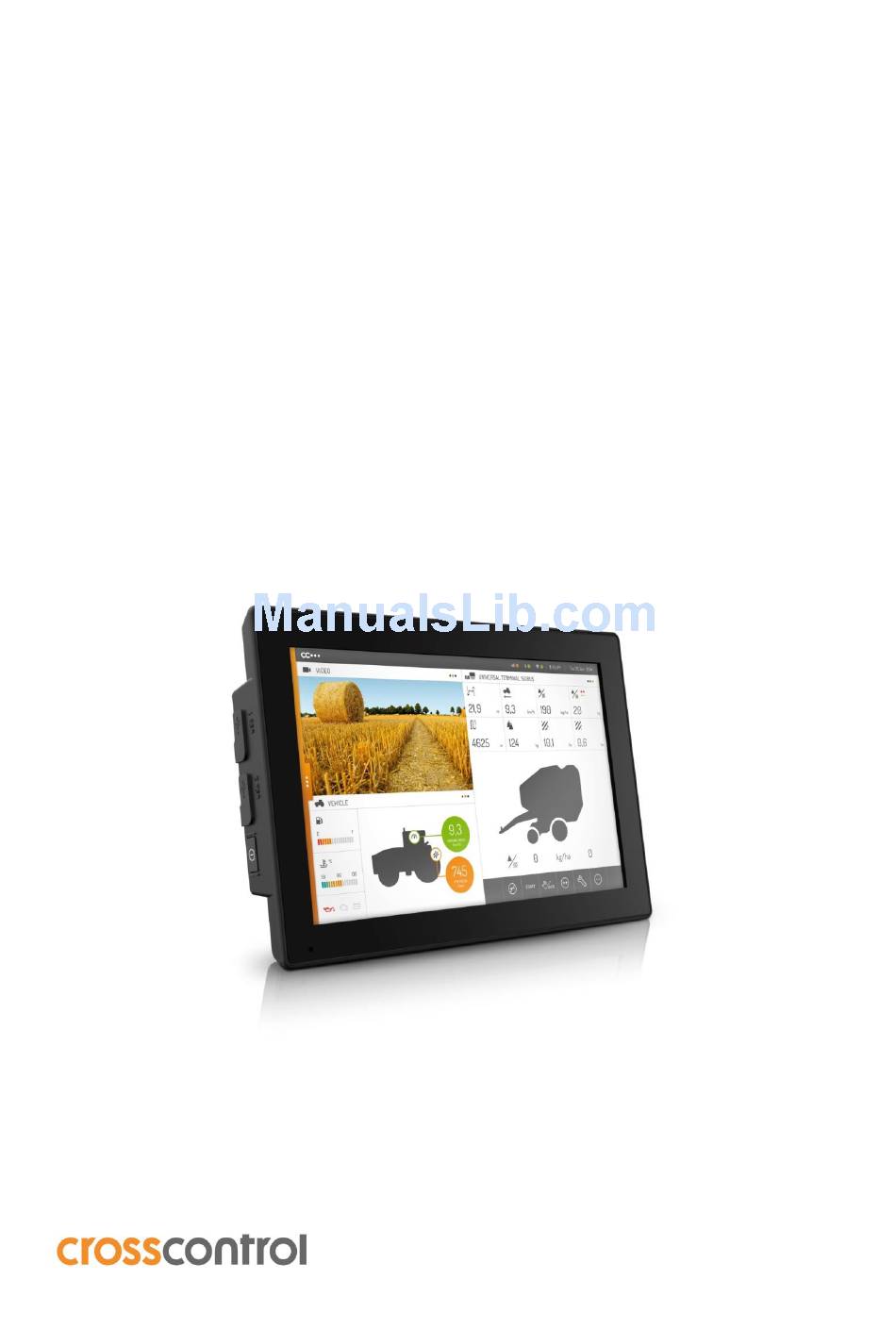

Page 1: Quick Start Guide
Product revision: A 2017-11-03 CCpilot VS 12” Quick Start Guide www.crosscontrol.com... -
Page 2: Table Of Contents
3.2. Communicating with board components ................. 10 4. Sotfware and development tools .....................11 4.1. Yocto board support package .................... 11 4.2. SDK .............................. 12 4.3. Programming the board components ................12 5. Trademarks ..........................14 Revision history Date Author Comments 2017-11-03 Released www.crosscontrol.com... -
Page 3: Introduction
Board Support Package Deutsche i.MX6Q Main Processor running Linux Software Development Kit STM32 System supervisor co-processor CCpilot VS 1.3. References [1] CCpilot VS 12”– Programmer’s Guide [2] CCpilot VS 12” – Software Guide [3] CCpilot VS 12” – Technical Manual www.crosscontrol.com... -
Page 4: About The Ccpilot Vs 12
Backup power capacitors for emergency CCAux API and drivers for board- power-loss handling specific functions Four CAN (multipin to DE-9) with JTAG and serial port access via update hardware watchdog functionality board (not included) Analog video input www.crosscontrol.com... -
Page 5: Display Layout And Connectors
The unit connectors are shown in Figure 1 and Figure 2, with indicators displaying the location of important board features. Refer to these figures to locate connectors and components referred to by later chapters. Figure 1: Left side and front components Figure 2: Rear connectors www.crosscontrol.com... -
Page 6: Cables And Peripherals
Main power input, ground and shield, high-side outputs 1 and 2, CAN 1 and 2 (DE-9). DT B CAN 3 and 4 (DE-9). A number of pins for configurable inputs. DT C RS232 and RS485 (DE-9), video input, a number of pins for high sideoutputs www.crosscontrol.com... - Page 7 JTAG programming is performed using industry-standard 20-pin flat JTAG cables directly to the card. UART access is provided through six pin mini connectors which require a USB-UART converter shown in Figure 6. The USB converters require device drivers for the host computer that can be downloaded from http://www.ftdichip.com/. www.crosscontrol.com...
-
Page 8: Linux Reference Image
In normal operation, only the main system will be running. In addition to the standard Linux utilities, CCLinux contains some CrossControl developed applications mentioned in the following sections. -
Page 9: Setting Up The Device
To power the board, connect the following signals on the DT A connector to a stable power supply: “+12V In”, “Key Switch State (Ignition)” to +12V “Ground” to ground Note that the board is designed to operate on +12 V, but also works with +24 V. www.crosscontrol.com... -
Page 10: Communicating With Board Components
The RS232 interface is accessible only on the optional update board. 3.2.1.2. Rescue system In the rescue system, it is possible to login to the devices on screen terminal by connecting a keyboard. See Table 2 for login credentials. www.crosscontrol.com... -
Page 11: Sotfware And Development Tools
Yocto project, please refer to the Yocto Project reference manual at: http://www.yoctoproject.org/docs/2.2/dev-manual/dev-manual.html VS is the internal CrossControl code name for the CCpilot VS architecture/platform; therefore the BSP contains references to the VS platform such as “PLATFORM_VS”. In the same way, CrossControl specific components are named “cc”, such as “meta-cc” and “recipes-cc”. -
Page 12: Sdk
(Tarball should be on the format ccpilot-vs-linux-update-v1.0.0.0.tar.gz 2. Reboot the device to rescue system: $ s udo re boot re sc ue.s h 3. The device will start the update automatically and reboot when completed. www.crosscontrol.com... - Page 13 In case an invalid binary is written to the SS the system will not power up. This is due to the SS is being involved in the board bringup procedure. If this happens, the SS needs to be reprogrammed via the JTAG connection. www.crosscontrol.com...
-
Page 14: Trademarks
Arm® is a registered trademark of ARM Limited (or its subsidiaries) in the US and/or elsewhere. Linux® is a registered trademark of Linus Torvalds in the U.S. and other countries. CrossControl, CCpilot and CCLinux are trademarks of CrossControl AB. www.crosscontrol.com...
