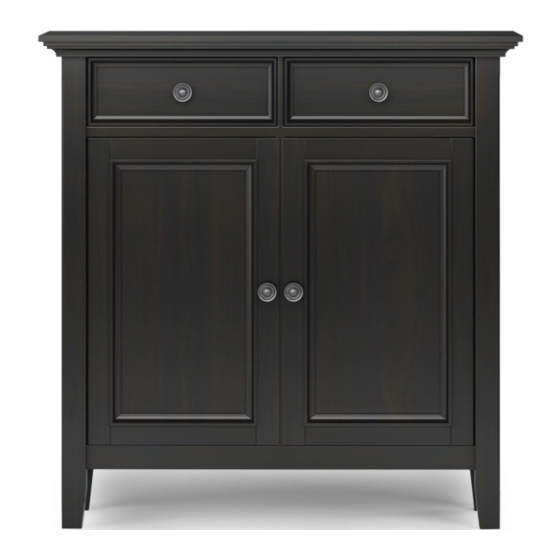

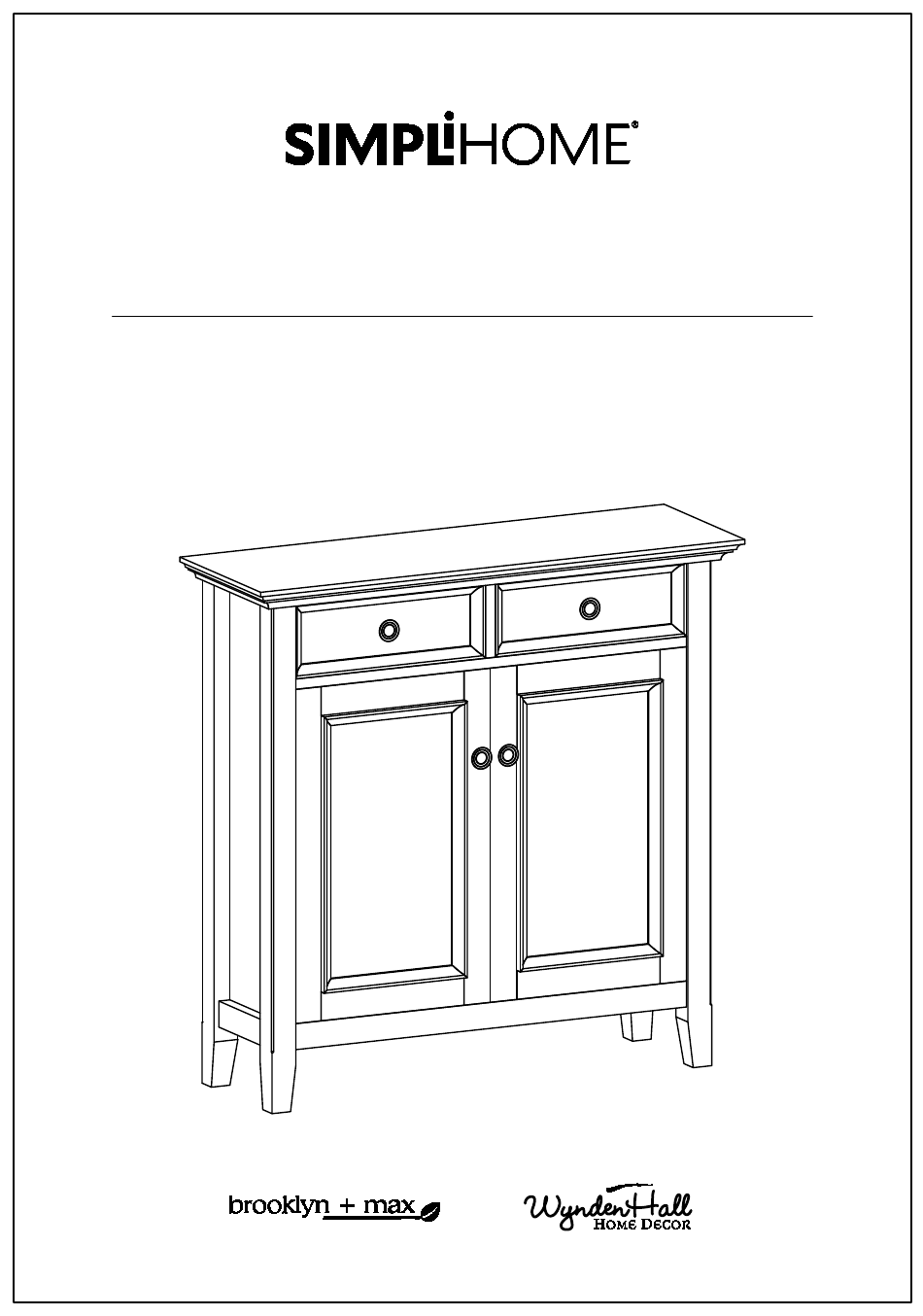

- Page 1 Amherst / Halifax / Washington Entryway Storage Cabinet Model # AXCAMH47-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Middle Frame
Pre-Assembly Information Model # AXCAMH47-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LARGE DIVIDER SMALL DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 Warning Label MIDDLE FRAME LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 1 QTY 1... -
Page 8: Drawer Bottom
Pre-Assembly Information Model # AXCAMH47-HIC Part Description SHELF LEFT DOOR RIGHT DOOR QTY 2 QTY 1 QTY 1 RIGHT DRAWER SIDE DRAWER FRONT LEFT DRAWER SIDE QTY 2 QTY 2 QTY 2 DRAWER BACK DRAWER BOTTOM QTY 2 QTY 2... - Page 9 Pre-Assembly Information Model # AXCAMH47-HIC Hardware Description HANDLE ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M4 X 25 mm M6 X 30mm CAM LOCK QTY 1 QTY 4 SET QTY 22 QTY 16 SETS PHILLIPS SCREW PHILLIPS SCREW MAGNET AND PLATE ADJUSTABLE HINGE M3 X 15mm M4 X 15mm...
- Page 10 Components - Key Diagram Model # AXCAMH47-HIC...
- Page 11 Assembly Model # AXCAMH47-HIC Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front J . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides KL ,KR to Drawer Front J .
- Page 12 Assembly Model # AXCAMH47-HIC Step 3 1. Slide Drawer Bottom M firmly into slots on Drawer Sides KL ,KR and Drawer Front J . 2. Align Drawer Back L with Drawer Bottom M and press firmly into slot . 3. Attach Drawer Back using two Phillip Screws 1 through guide holes on each Drawer Side KL , KR .
- Page 13 Assembly Model # AXCAMH47-HIC Step 4 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front J . Repeat Step 1 - 4 for the second drawer.
- Page 14 Assembly Model # AXCAMH47-HIC Step 5 1. Attach two Cam Lock Pins 2 into pre-drilled holes on each part A , BL , BR , F . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 15 Assembly Model # AXCAMH47-HIC Step 6 1. Use two Allen Key Screws 1 to attach part D through guide holes from part F to pre-drilled holes of part D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 2.
- Page 16 Assembly Model # AXCAMH47-HIC Step 7 1. Use two Allen Key Screws 1 to attach part C through guide holes from part E to pre-drilled holes of part C . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 17 Assembly Model # AXCAMH47-HIC Step 8 1. Align Cam Lock Pins with guide holes and attach Sides BL , BR to parts E , F . 2. Use six Allen Key Screws 1 to attach parts BL , BR through guide holes from part E to pre-drilled holes of parts BL , BR.
- Page 18 Assembly Model # AXCAMH47-HIC Step 9 1. Align Cam Lock Pin with guide holes on part A and attach part A to parts BL , BR , D . 2. Use four Allen Key Screws 1 to attach parts A through guide holes from parts BL , BR to pre-drilled holes of part A .
- Page 19 Assembly Model # AXCAMH47-HIC Note: Step 10 Warning Label 1. Attach the Back Panels GL , GR to back frame using Phillips Screws Round Head 9 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 20 Assembly Model # AXCAMH47-HIC Step 11 IL IR 1. Attach Adjustable Hinges 7 to Doors IL , IR using Phillips Screws 8 into pre-drilled holes on Doors IL , IR . 2. Attach Adjustable Hinges 7 on Doors IL , IR to parts BL , BR using Phillips Screws 8 into pre-drilled holes on parts BL , BR .
-
Page 21: Important Note
Assembly Model # AXCAMH47-HIC Step 12 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 22 Assembly Model # AXCAMH47-HIC Step 13 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Assembly Model # AXCAMH47-HIC Step 14 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf H in desired location. 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf H as a tipping restraint.
- Page 24 Assembly Model # AXCAMH47-HIC Step 15 1. Turn the wood lock ( on the bottom frame ) to be perpendicular to the frame for safety stop ( intended to keep the drawers from pulling all the way out ).
- Page 25 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
- Page 26 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
