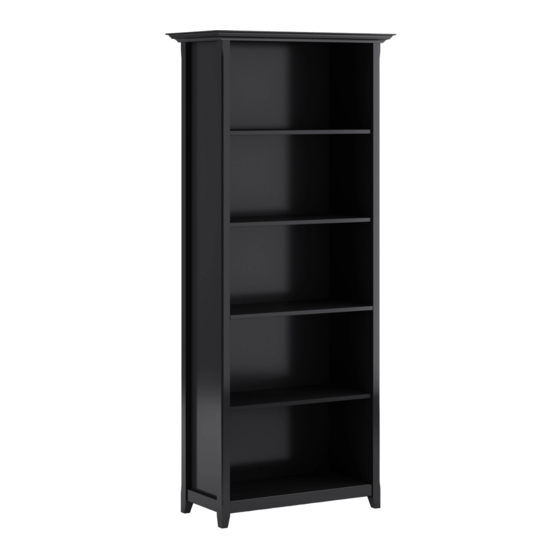

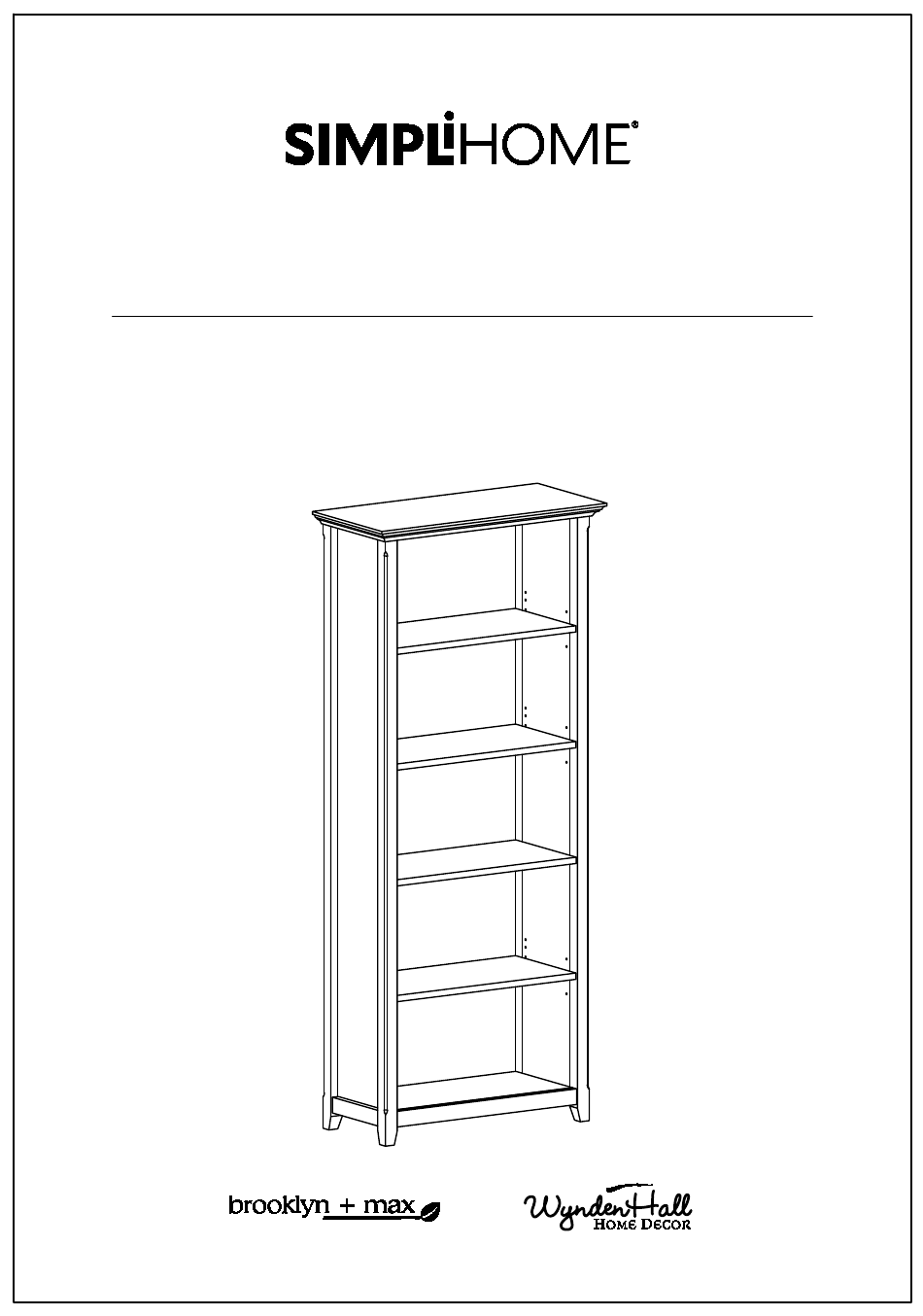

- Page 1 Amherst / Halifax / Washington 5 Shelf Bookcase Model # AXCAMH09-BL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCAMH09-BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF CABINET SHELF MIDDLE SHELF QTY 1 QTY 1 QTY 3 Warning Label BACK PANEL QTY 1... - Page 8 Pre-Assembly Information Model # AXCAMH09-BL Hardware Description ALLEN KEY SCREW CAM LOCK PIN M6 X 30mm ALLEN KEY CAM LOCK QTY 12 QTY 1 QTY 6 SETS PHILLIPS SCREW ROUND HEAD SHELF SUPPORT M4 X 15mm QTY 18 QTY 20 Required - Flathead screwdriver Phillips screwdriver...
- Page 9 Components - Key Diagram Model # AXCAMH09-BL...
- Page 10 Assembly Model # AXCAMH09-BL Step 1 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes on each Side AL , AR . 2. Align Cam Lock Pins with guide holes from Middle Shelf D and attach Middle Shelf D . 3.
- Page 11 Assembly Model # AXCAMH09-BL Step 2 1. Attach Top B to Sides AL , AR using 6 Allen Key Screws 1 through guide holes from Sides AL , AR (3 screws on each Side). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 12 Assembly Model # AXCAMH09-BL Step 3 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Use 20 Phillips Screws Round Head 5 to attach Back Panel F through guide holes to the back of Bookcase. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 13 Assembly Model # AXCAMH09-BL Step 4 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use 4 Shelf Supports 4 for each Cabinet Shelf E in desired location. 2. 2 Shelf Supports 4 may be used on back top of each Cabinet Shelf E as a tipping restraint.
- Page 14 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 5 NOTE: The screwdriver is not included in the hardware pack.
- Page 15 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
