Summary of Contents for SIMPLIHOME Amherst AXCAMH53-HIC

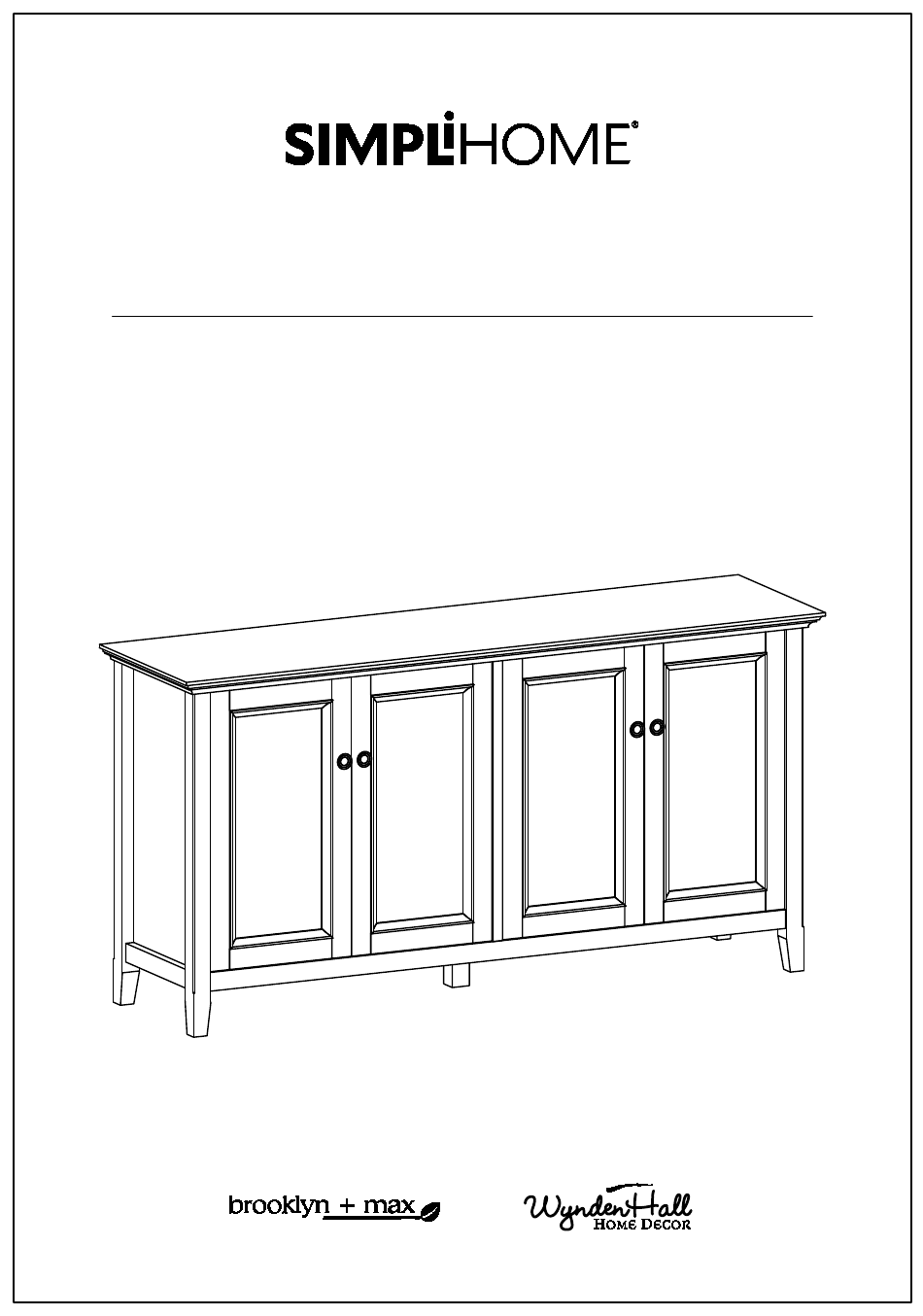

- Page 1 Amherst / Halifax / Washington Wide 4 Door Storage Cabinet Model # AXCAMH53-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCAMH53-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER MIDDLE DIVIDER BOTTOM FRAME QTY 2 QTY 1 QTY 1 SHELF LEFT DOOR RIGHT DOOR QTY 4 QTY 2 QTY 2...
- Page 8 Pre-Assembly Information Model # AXCAMH53-HIC Part Description Warning Label MIDDLE BACK PANEL LEFT BACK PANEL RIGHT BACK PANEL QTY 2 QTY 1 QTY 1 BOTTOM SUPPORT LEG QTY 1...
- Page 9 Pre-Assembly Information Model # AXCAMH53-HIC Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY WOOD DOWEL M6 X 30mm CAM LOCK QTY 1 Ø8 X 30mm QTY 24 QTY 6 SETS QTY 4 HANDLE PHILLIPS SCREW MAGNET AND PLATE ADJUSTABLE HINGE M4 X 25 mm M3 X 15mm...
- Page 10 Components - Key Diagram Model # AXCAMH53-HIC...
- Page 11 Assembly Model # AXCAMH53-HIC Step 1 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each part BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Dowels 3 into guide holes on Bottom Shelf E . 4.
- Page 12 Assembly Model # AXCAMH53-HIC Step 2 1. Use thee Allen Key Screws 1 to attach each part C , D through guide holes from part E to pre-drilled holes of parts C , D . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 13 Assembly Model # AXCAMH53-HIC Step 3 1. Align Cam Lock Pin and Wood Dowels with guide holes and attach parts BL , BR to part E . 2. Insert six Cam Locks 2 into guide holes on part E . 3.
- Page 14 Assembly Model # AXCAMH53-HIC Step 4 1. Use three Allen Key Screws 1 to attach each part BL , BR , C , D through guide holes each part BL , BR , C , D to pre-drilled holes of Top A . 2.
- Page 15 Assembly Model # AXCAMH53-HIC Step 5 1. Align Bottom Support Leg I with pre-drilled holes on back of Bottom Shelf E . Use Phillips Screwdriver to tighten four Phillips Screws 11 .
- Page 16 Assembly Model # AXCAMH53-HIC Step 6 Note: Warning Label 1. Attach the Back Panels HL ,HR , H to back frame using Phillips Screws Round Head 10 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 17 Assembly Model # AXCAMH53-HIC Step 7 GL GR 1. Attach Adjustable Hinges 8 to Doors GL , GR using Phillips Screws 9 into pre-drilled holes on Doors GL , GR . 2. Attach Adjustable Hinges 8 on Doors GL , GR to parts BL , BR , D using Phillips Screws 9 into pre-drilled holes on parts BL , BR , D .
-
Page 18: Important Note
Assembly Model # AXCAMH53-HIC Step 8 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 19 Assembly Model # AXCAMH53-HIC Step 9 NOTE: The screwdriver is not included in the hardware pack.
- Page 20 Assembly Model # AXCAMH53-HIC Step 10 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 12 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 12 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 21 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 22 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
