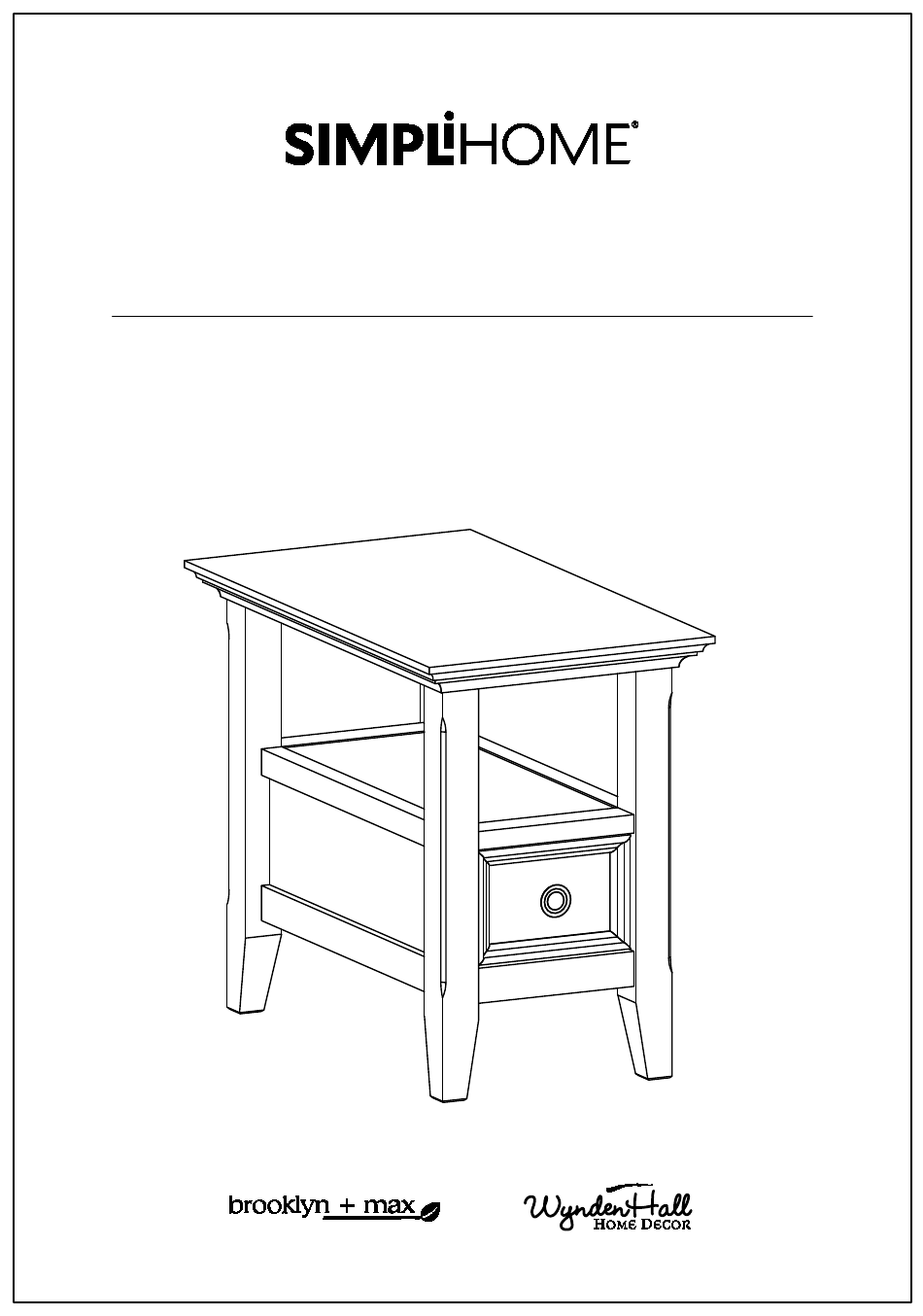

- Page 1 Amherst / Halifax / Washington Narrow Side Table Model # AXCAMH05-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCAMH05-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME TOP SHELF BACK PANEL QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BOTTOM DRAWER BACK...
- Page 8 Pre-Assembly Information Model # AXCAMH05-HIC Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK M6 X 30mm Ø8 X 30mm QTY 8 SETS QTY 16 QTY 6 HANDLE M4 X 25 mm ALLEN KEY QTY 1 SET QTY 1 Required - Flathead screwdriver...
- Page 9 Components - Key Diagram Model # AXCAMH05-HIC...
- Page 10 Assembly Model # AXCAMH05-HIC Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front F . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
- Page 11 Assembly Model # AXCAMH05-HIC Step 3 Step 4 1. Align Drawer Back H with Drawer Bottom I and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side GL , GR . 3.
- Page 12 Assembly Model # AXCAMH05-HIC Step 6 1. Attach two Cam Lock Pins 2 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 7 1. Insert six Dowels 3 into guide holes on Top Shelf D . 2.
- Page 13 Assembly Model # AXCAMH05-HIC Step 8 1. Align Wood Dowels with guide holes on Left Side BL and attach Top Shelf D to Left Side BL . Step 9 1. Align Cam Lock Pin with guide holes on Back Panel E and attach Back Panel E to Left Side BL .
- Page 14 Assembly Model # AXCAMH05-HIC Step 10 1. Attach Bottom Frame C to Left Side BL using three Allen Key Screws 1 through guide holes. 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCAMH05-HIC Step 11 1. Repeat Step 8, 9, 10 for Right Side BR .
- Page 16 Assembly Model # AXCAMH05-HIC Step 12 1. Attach Sides frame BL , BR to Top A using six Allen Key Screws 1 through guide holes. 2. Use Allen Key 4 to tighten Screws. Do not over-tighten. Step 13 1. Insert assembled drawer into glides on assembled Table.
