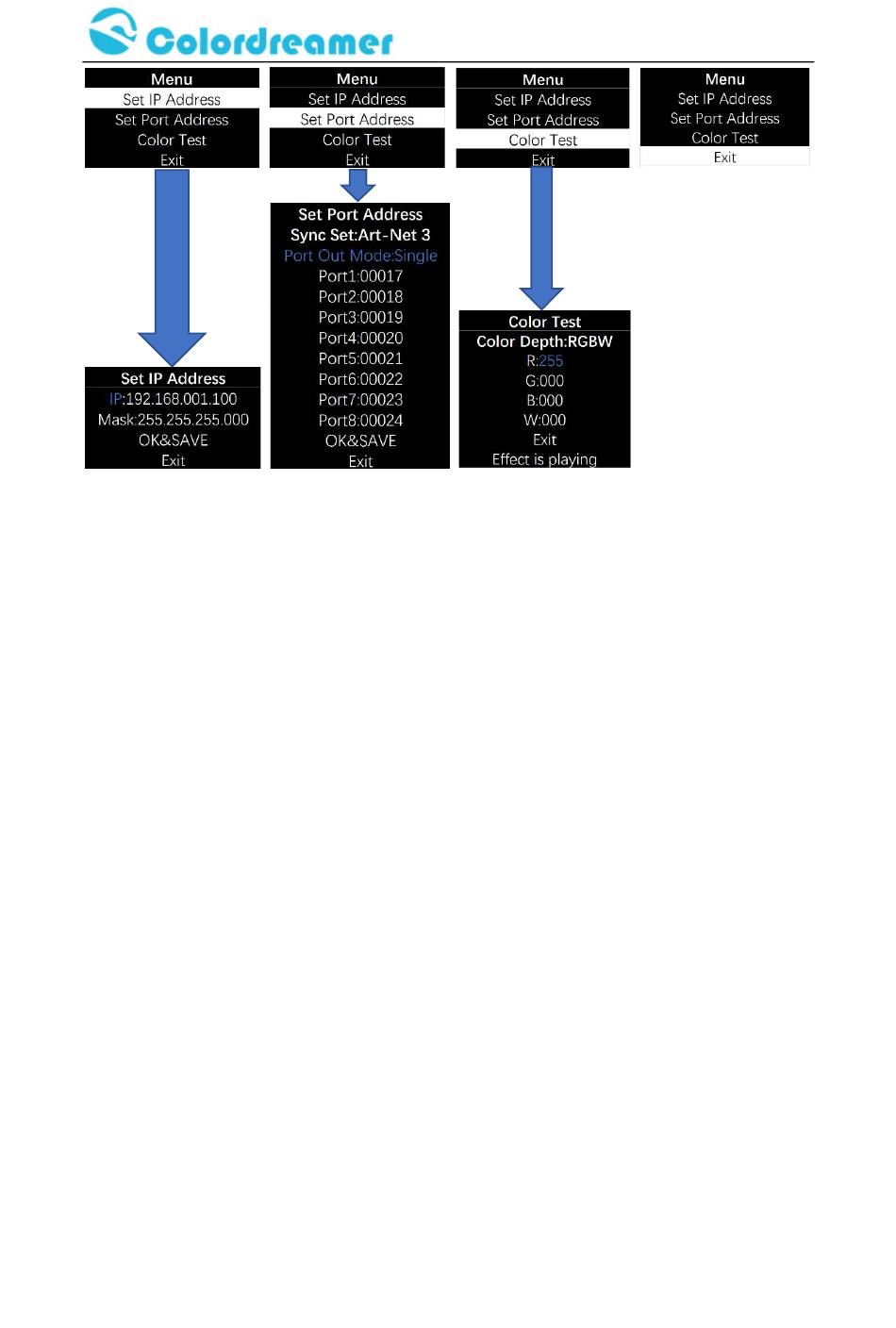

Rotate the dial to move the highlighted cursor between options within the page
When the highlighted cursor is over the required option, press and release the dial
Rotate the dial to change the value of the option.
Press and release the dial to fix the chosen value of the option.
Remember to press "OK&SAVE" to confirm your setting.
Press "Exit" to come back Main Menu.
Notes:
1: In the page "Set Port Address", Sync Set can be Art-Net 3 or Art-Net 4
2: User can use Color Test Page to test your led fitting when software is not ready.
Color DepthW/RG/RGB/RGBW
R: a value between 0-255
G: a value between 0-255
B: a value between 0-255
W: a value between 0-255
www.colordreamer.com
Email:info@colordreamer.com
Version:V1.0 Feb 2022
Products and specifications are subject to change without notice
