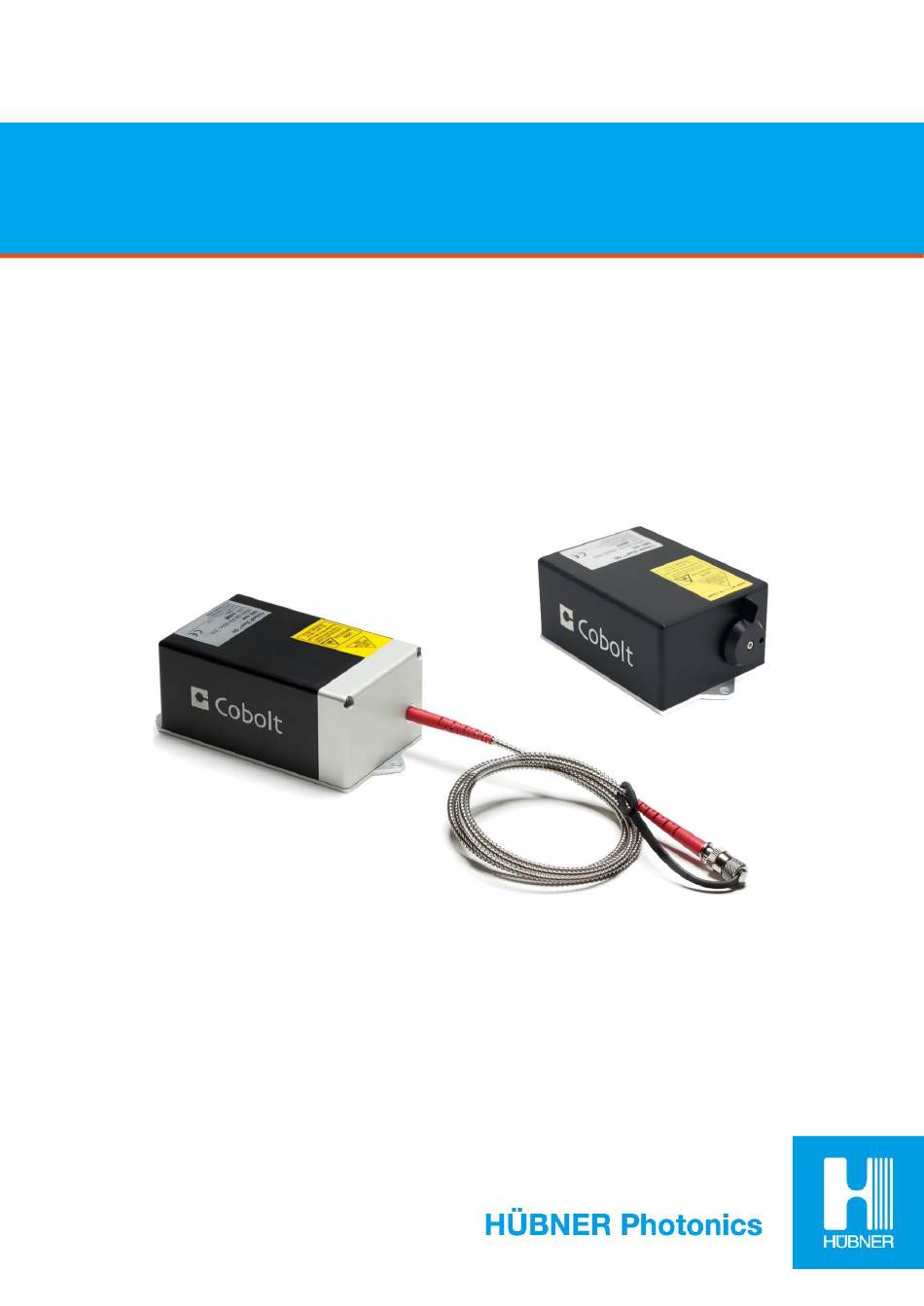

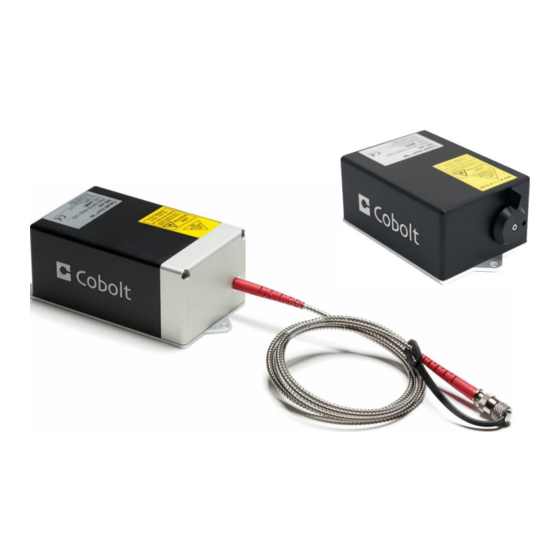

- Page 1 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Cobolt 04 – 01 Series Powerful | Single Frequency | CW Diode pumped lasers 457 nm 515 nm 594 nm 473 nm 532 nm 660 nm 491 nm 561 nm...
- Page 2 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 2 | 32...
-
Page 3: Table Of Contents
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 CONTENTS Introduction Safety Beam Hazards Safety features Equipment Safety Warning and Identification Labels Overview Model number Configuration Laser head Controller Controller Cable Thermal Management Power Supply Requirements System Description Specification... - Page 4 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 4 | 32...
-
Page 5: Introduction
Single frequency operation provides a narrow spectral bandwidth and long coherence length. The lasers are designed and manufactured to ensure a high level of reliability. The Cobolt 04-01 Series lasers are intended for stand-alone use in laboratory environments or for integration as an OEM component in instruments for applications including fluorescence microscopy, flow cytometry, DNA sequencing, HCA, Raman spectroscopy, interferometry, holography and particle analysis. -
Page 6: Safety
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Safety All Cobolt 04-01 Series lasers are Class IIIB (CDRH), Class 3B (IEC) laser products that emit less than 500 mW of laser radiation within the visible and near-infrared spectrum (NIR). Residual emissions from the pump diode are contained within the laser head housing via filtering optics. -
Page 7: Beam Hazards
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Beam Hazards Eye and skin exposure to direct or reflected laser light is hazardous and may be extremely harmful. Always wear eye protection appropriate to the beam wavelength and intensity. Lasers may pose a risk of igniting flammable materials and in event of ignition gasses and fumes may be generated. -
Page 8: Safety Features
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 The table below describes the irradiance in W/cm and appropriate level of eye protection in terms of optical density (OD) for each product line. Product Wavelength (nm) Max. Nominal Irradiance... -
Page 9: Equipment Safety
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Manual Shutter (Beam Stop) The laser head is equipped with a manual shutter, which functions as the beam stop, capable of preventing human access to laser radiation. The aperture location and the open and close positions of the shutter are indicated on the top surface of the laser head. -
Page 10: Warning And Identification Labels
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Warning and Identification Labels The upper face of the laser head contains a yellow label with laser safety warning and classification information, the wavelength and maximum power of the unit. It also shows the location of the laser beam from the aperture and indicates the open and close positions of the manual shutter. - Page 11 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Fiber Pigtailed Laser head 04-03 Manufacturer Identification Labels OEM Label CE marking for CDRH models only Aperture Warning Labels Laser Notice No. 56 Label CDRH models shipped to USA 11 | 32...
-
Page 12: Overview
Overview Cobolt 04-01 Series laser systems consist of four main parts: the laser head, the Controller, the Cable and the Power Supply (not shown). The cable provided should always be used to connect the laser head with the Controller. Always install the laser system to a properly grounded power outlet. -
Page 13: Configuration
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Configuration CDRH Compliant The CDRH compliant system is supplied with a key switch on the Controller, which must be connected, along with a remote interlock connector. Once power is supplied, laser emission starts when the key is turned from the OFF position to the ON position. -
Page 14: Laser Head
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Laser head The laser head contains pump diode, laser cavity, beam shaping optics and thermoelectric coolers (TEC) for temperature control of the cavity and pump diode. The laser head contains an optical feed-back loop which ensures long-term power stability of the emitted visual beam. -
Page 15: Controller
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Controller The Controller supplies driving current and control signals to the laser head. All laser heads are delivered with a controller. The operation set points are specific to each Laser Head and have been fixed during manufacturing. The operation set points are stored in the laser head so the controller can be interchanged or replaced. -
Page 16: Thermal Management
Cobolt technical support. Heat Sink Requirements and typical maximum heat dissipation for Cobolt 04-01 Series. *High power applies to the following models only: Calypso 100 mW, Samba 300 mW, Samba 400 mW, Jive 200 mW, Mambo 100mW, Flamenco 100 mW, and Rumba 400 mW... -
Page 17: System Description
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 System Description The information presented here is believed to be accurate and is subject to change without notice. The specifications contained herein cannot be guaranteed outside of normal operational conditions. The output power can be adjusted using control commands, see Section 7.4. - Page 18 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Optical Specifications Fiber Pigtailed Laser head version 04-03 and 04-53 Product Wavelength 1064 150* 200* Maximum Power out of Fiber (mW) 200* 100* Fiber end-cap < 3 % Power stability (8 hrs ± 3°C) Mode Field Diameter (µm)*...
-
Page 19: Mechanical Drawings
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Analog signals Analog input <2.7 V => Laser OFF Warm-up time 2 min Mechanical Interfaces Dimensions: Laser Head 04-01/04-51 102x60x40 mm (4.0x2.4x1.8 inches) Laser Head 04-03 117x60x45 mm (4.6x2.4x1.8 inches) Controller 190x72x28 mm (7.5x2.8x1.1 inches) - Page 20 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Laser Head 04-11 (OEM Only) Laser Head 04-01 and 04-51 Fiber Pigtailed Laser head mechanical outline. Dimensions in mm [inches]. 20 | 32...
-
Page 21: Remote Interlock Connector
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Controller Controller mechanical outline. Dimensions in mm [inches]. Remote Interlock Connector The remote interlock connector is located at pin 1 and 2 of the molex connector on the Controller. The connector can be short-circuited with an interlock jumper (included at delivery) for operation of the laser. -
Page 22: Pin Assignment
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Pin assignment All equipment connected to the system should be limited energy as described by IEC 61010:1. Analog connector & Remote interlock connector Manufacturer Molex 90130-3206, mates with 90143-0006. Function... -
Page 23: Operating Instructions
Disconnect Controller from PSU. Operating Modes There are two operating modes: constant power and constant current. The default mode for Cobolt 04-01 series lasers when shipped is constant power. In constant power mode the power is monitored on an internal photodiode, and this is used to regulate the current to maintain a constant power level. -
Page 24: Operation Via Data Port
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Operation via data port To communicate with a Cobolt 04-01 lasers use the mini-USB data port on the external controller. The appropriate communication cable is provided with all lasers. Determine which communication protocol (USB or RS-232) your system is configured for by either checking the label on the mini-USB data port or from the model number (see 3.1). -
Page 25: Communication Commands
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Communication commands The laser is delivered set in Auto-start mode (see section 5.1 for Auto-start sequence description). As long as DC power is supplied to the system the temperature control elements are always operating to reach set-point values and the laser will be idle waiting for the next command. -
Page 26: Cobolt Monitor™ Software
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Cobolt Monitor™ Software The Cobolt Monitor™ software provides a graphical way to monitor the laser performance and to change power, operation mode and other settings. The software can connect to the laser either via RS-232 port or via USB, depending on the system configuration. - Page 27 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Laser successfully connected. Laser ON – Turns the laser ON. If the laser is in autostart mode this is equivalent to “restart”. Laser OFF – Turns the laser OFF. Mode – Gives a choice of operational modes possible to choose for the laser model. For 04 series lases Constant Power or Constant Current operation can be chosen.
- Page 28 OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Cobolt Monitor™ software expanded to for more detailed monitoring. TEC Settings – shows the running status and the fault status for the laser’s internal thermoelectric coolers (TEC). Laser Operation Mode and Settings - displays the set laser power. The user can switch between constant power mode and constant current mode.
-
Page 29: Troubleshooting
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Troubleshooting In the unlikely case of a problem occurring, use the table below to help identify the error. Some faults can be fixed remotely. Back reflections into the cavity can cause instability of operation. Isolators are available as an option. In case of a sudden voltage drop the laser will turn itself off and restart. -
Page 30: Compliance (Cdrh Models Only)
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Compliance (CDRH models only) The CDRH model lasers (-3/5/700) are designed and manufactured to comply with the EC Low Voltage Directive and the EC EMC Directive in the CDRH-compliant configuration of laser head, 1 m controller cable, controller, key and Cobolt-supplied power supply. -
Page 31: Disclaimer
OWNERS MANUAL | Cobolt 04-01 Series | D0105-I October 2022 Disclaimer Cobolt will assume no responsibility for damage incurred by faulty customer equipment, such as measurement equipment, cables etc, used in conjunction with Cobolt lasers. Cobolt makes no warranty of any kind with regard to the information contained in this guide, included but not limited to, implied warranties of merchantability and suitability for a particular purpose. - Page 32 (Sales in Germany, Switzerland and Austria) Kassel, Germany Phone: +49 561 994 060-0 Fax: +49 561 994 060-13 E-mail: info.de@hubner-photonics.com HÜBNER Photonics Inc. (Sales in USA, Canada, and Mexico) San Jose, California, USA Phone: +1 (408) 708 4351 Fax: +1 (408) 490 2774 E-mail: info.usa@hubner-photonics.com...
