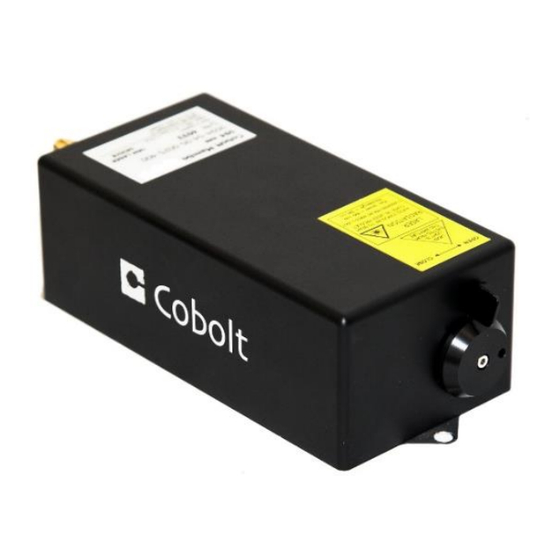

Hubner Cobolt DPSS Owner's Manual

High performance lasers with integrated aom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016
Cobolt Modulated
DPSS Lasers
High performance DPSS lasers
with integrated AOM
457 nm
515 nm
473 nm
532 nm
491 nm
561 nm
594 nm
660 nm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cobolt DPSS and is the answer not in the manual?

Questions and answers

Related Manuals for Hubner Cobolt DPSS

Summary of Contents for Hubner Cobolt DPSS

  • Page 1 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Cobolt Modulated DPSS Lasers High performance DPSS lasers 457 nm 515 nm 594 nm with integrated AOM 473 nm 532 nm 660 nm 491 nm 561 nm...
  • Page 2 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 2 | 36...

  • Page 3: Table Of Contents

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 CONTENTS Introduction Safety General Safety features Equipment Safety Warning and Identification Labels Overview Model number Configuration Laser Head Laser Controller Cables Thermal Management Power Supply Requirements System Description Specification Mechanical Drawings Remote Interlock Connector Direct ON/OFF control...
  • Page 4 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 4 | 36...

  • Page 5: Introduction

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Introduction The Cobolt Modulated DPSS option incorporates both the diode pumped laser (DPL) from the Cobolt 04-01 series and an Acousto Optic Modulator (AOM) in one single compact package, slightly longer than the standard 04-01 Series laser head.

  • Page 6: Safety

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Safety General Cobolt Modulated DPSS Lasers are Class IIIB (CDRH), Class 3B (IEC) laser products emit less than 500 mW of laser radiation within the visible spectrum. Residual emissions from the pump diode are contained within the laser head housing via filtering optics.

  • Page 7: Safety Features

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Safety features The laser is equipped with all required safety features as described in the laser safety standard 60825-1. Disabling any safety features negate the CE/CDRH compliance of this product. Remote Interlock Connector The remote interlock connector is a connector which permits the connection of external controls placed apart from other components of the laser product.

  • Page 8: Warning And Identification Labels

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Warning and Identification Labels The upper face of the laser head contains a yellow label with laser safety warning and classification information, the wavelength and maximum power of the unit. It also shows the location of the laser beam from the aperture and indicates the open and close positions of the manual shutter.

  • Page 9: Overview

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Overview In order to modulate the laser, at least one additional modulation source is required, for instance a function generator. The Controller Cable should always be used to connect the Laser Head with the Controller before supplying power to the system.

  • Page 10: Configuration

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Configuration CDRH Compliant The CDRH compliant system is supplied with a key switch on the Controller, which must be connected, along with a remote interlock connector. Once power is supplied, laser radiation starts when the key is turned from the OFF position to the ON position.

  • Page 11: Laser Head

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Laser Head The Laser Head contains a pump diode, laser cavity, beam shaping optics and thermoelectric coolers (TEC) routing optics and an integrated AOM. The laser head contains an optical feed-back loop which measures the output power. The Laser Head gets electrical power and control signals from the Controller via a 26-pin HD Sub-D cable.

  • Page 12: Cables

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Cables In the CDRH compliance configurations delivered the standard cables listed below, using any other cable type or length may violate CE compliance. Laser Controller Cable The laser controller cable is a 1m SubD26-SubD26 cable that connects the Laser Head to the Laser Controller. The cable has a minimum bending radius 8 cm.

  • Page 13: Thermal Management

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Thermal Management To ensure operation within given specifications and for the warranty to be valid, the Laser Head must be attached to a heat sink providing adequate thermal resistance. The required thermal resistance for low power models is <0.6 K/W and <0.4 K/W for high power models (i.e.

  • Page 14: System Description

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 System Description The information presented here is believed to be accurate and is subject to change without notice. The specifications contained herein cannot be guaranteed outside of normal operational conditions. The output power can be adjusted using control commands, see Section 7.4.
  • Page 15 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Operation and Environmental Specifications – Laser Head Power supply 12 VDC, 3.75 A, 11-28 VDC accepted Power consumption, total system (Laser Head + Controller) <25 W (typical ~15 W) <...
  • Page 16 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Electrical Interfaces – AOM Driver Interfaces Connector Function Control input connector – AOM Driver DB 15, male Digital (TTL) modulation input , Optional Power supply to AOM driver, Optional Analogue modulation input RF output connector (“RF out”) SMA female Modulation signal to laser head...

  • Page 17: Mechanical Drawings

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Mechanical Drawings Laser Head Laser head mechanical outline. Dimensions in mm [inches]. AOM Driver AOM Driver mechanical outline. Dimensions in mm. 17 | 36...
  • Page 18 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Laser Controller Controller mechanical outline. Dimensions in mm [inches]. Analog & remote interlock connector Power connector Data connector Connector location Controller 18 | 36...

  • Page 19: Remote Interlock Connector

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Remote Interlock Connector The remote interlock connector is located at pin 1 and 2 of the Molex connector on the Controller. The connector can be short-circuited with an interlock jumper (included at delivery) for operation of the laser. To use the remote interlock connector with an external switch, connect a pin 1 and 2 on a Molex plug.

  • Page 20: Pin Assignment

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Pin assignment Analog connector & Remote interlock connector Manufacturer Molex 90130-3206, mates with 90143-0006. Function Remote Interlock (connect to pin 2 for enable) 0 V - GND Remote On/Off (+5V Input) TST (Internal Cobolt use only) LED “Laser on”...

  • Page 21: Operating Instructions

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Operating Instructions As standard, all lasers are delivered with the Controller set in Auto-start mode. As soon as power is supplied to the Controller the temperature control elements are operating to reach set-point values and the laser emission will start, unless the key-switch is enabled (CDRH model).

  • Page 22: Operating Modes

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Operating Modes There are two operating modes: constant power and constant current. The default mode for Cobolt 04 series lasers when shipped is constant power. In constant power mode the power is monitored on an internal photodiode, and this is used to regulate the current to maintain a constant power level.
  • Page 23 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 100 200 300 400 500 600 700 800 900 1000 1100 Voltage on analogue input (mV) Plot of typical optical output power as function of the applied analogue voltage. There is a device specific maximum. Digital modulation In pure digital modulation, the applied analogue voltage determines the on-state optical output power in accordance with the plot above.

  • Page 24: Operation Via Data Port

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Operation via data port Handshaking Under no circumstances does the Controller initiate communication; it only transmits characters in response to a message. Every message to the Controller generates a response, either a numerical value or the acknowledgment string “OK”.
  • Page 25 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 2. Under the Devices and Printers section, choose Device Manager. Under Other devices, find the device called Cobolt Laser Driver MLD/DPL. Right-click it and chose Update Driver Software. 4. On the next screen chose the Browse my computer for driver software option. 25 | 36...
  • Page 26 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Click browse, and find folder on your computer where the USB driver is stored. 6. Windows security may warn you that the publisher of the driver is unverified. Choose Install this driver software anyway.

  • Page 27: Communication Commands

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Communication commands The laser is delivered with the Controller set in Auto-start mode (see section 5.1 for Auto-start sequence description). For system integration the Auto-start sequence can be disabled and the following commands can be used to control the laser (NOTE some commands require Auto-start to be disabled but others will work when Auto-start is active).
  • Page 28 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 4 = constant power fault Clear fault Enable/disable direct control @cobasdr See section 4.4 for description (OEM 0 = disable, 1 = enable models). @cobasdr? Get direct control enable state 0 = disabled 1 = enabled Get serial number 32-bit unsigned integer...

  • Page 29: Cobolt Monitor™ Software

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Cobolt Monitor™ Software The Cobolt Monitor™ software provides a graphical way to monitor the laser performance and to change power, operation mode and other settings. The software can connect to the laser either via RS-232 port or via USB, depending on the type of controller.
  • Page 30 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Laser successfully connected. Laser ON – Turns the laser ON. If the laser is in autostart mode this is equivalent to “restart”. Laser OFF – Turns the laser OFF. Mode –...
  • Page 31 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 More –an additional Cobolt Monitor™ window will open containing more detailed information of that laser’s status. Cobolt Monitor™ software expanded to for more detailed monitoring. TEC Settings – shows the running status and the fault status for the laser’s internal thermoelectric coolers (TEC). Laser Operation Mode and Settings - displays the set laser power.

  • Page 32: Troubleshooting

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Troubleshooting In the unlikely case of a problem occurring, use the table below to help identify the error. Some faults can be fixed remotely. Back reflections into the cavity can cause instability of operation. Isolators are available as an option. In case of a sudden voltage drop the laser will turn itself off and restart.

  • Page 33: Compliance (Cdrh Models Only)

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Compliance (CDRH models only) The CDRH model lasers (-5/700) are designed and manufactured to comply with the EC Low Voltage Directive and the EC EMC Directive in the CDRH-compliant configuration of laser head, controller, key, 1m controller cable, AOM driver, 0.2m RF cable, 0.2m digital modulation cable, 1m analogue modulations cable and Cobolt-supplied power supplies.

  • Page 34: Disclaimer

    OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 Disclaimer Cobolt will assume no responsibility for damage incurred by faulty customer equipment, such as measurement equipment, cables etc, used in conjunction with Cobolt lasers. Cobolt makes no warranty of any kind with regard to the information contained in this guide, included but not limited to, implied warranties of merchantability and suitability for a particular purpose.
  • Page 35 OWNERS MANUAL | Cobolt Modulated DPSS Lasers | D0342-C JUNE 2016 35 | 36...
  • Page 36 Headquarters Cobolt AB Phone: +46 8 545 912 30 Vretenvägen 13 Fax: +46 8 545 912 31 SE-171 54 Solna info@cobolt.se Sweden www.cobolt.se Australia India South Korea Warsash Scientific Pty Ltd Spectral Instrument System SM Tech www.warsash.com.au www.spectralinstruments.com www.lasersystem.co.kr ___________________________ ___________________________ ___________________________ Benelux...
