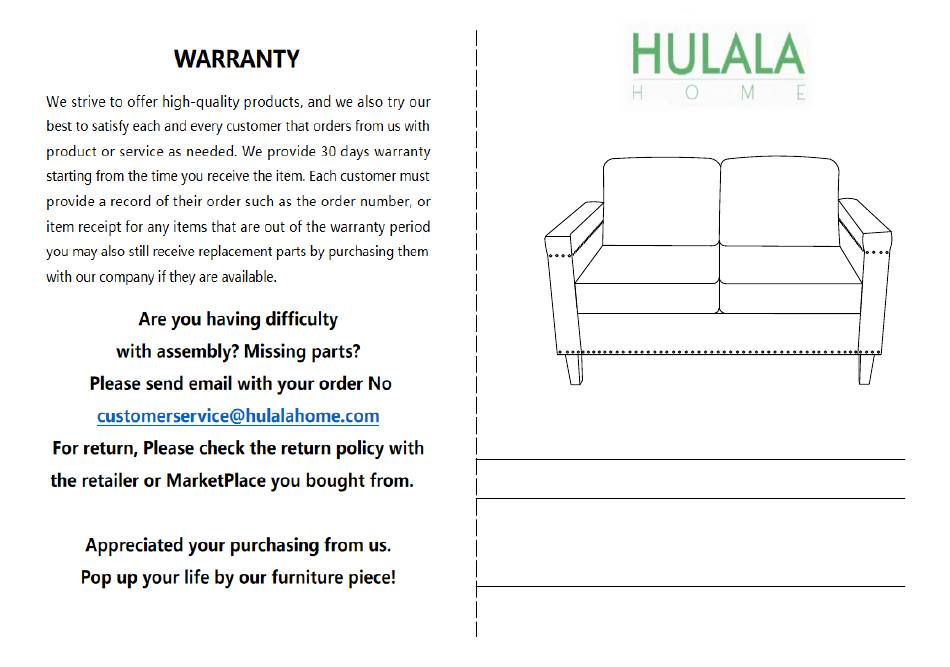

- Page 1 ＩＴＥＭ ＮＯ．ＳＦＨＱ０３９３ NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference.
- Page 2 Backrest Right Arm Left Arm seat cushion Backrest cushion Baseplate Weight Limitation Metal bar Front rail 400LBS...
- Page 3 STEP1 ① ① *36 ② *8 ③ *1 ③ M6*16 M4*25 ① ③ ① *1 ② *1 M4*25 M6*16 STEP1:Use bolt , allen key to Attach the metal bracket ③ ① J to inside of armrest (A/B). Make sure the holes aligned properly then fasten all bolts to secure.
- Page 4 STEP2 STEP3 ① ③ STEP2: With help of adult partner, carefully align STEP3:Use bolt , allen key , bracket L to connect ① ③ the male and female metal bracket then push the armrest A/B with backrest C. Please don't fasten any bolt backrest(C) all the way down in order to secure it to until end of step 5.
- Page 5 STEP5 STEP4 ① ① ③ ③ STEP5:Use bolt to connect metal bar H with armrest A/ ① STEP4:Use bolt , allen key , bracket K to connect ① ③ B, make sure the metal bar set leveled and bottom edge armrest A/B with front rail G, Please don't fasten any bolt of front rail G, armrest A/B, backrest C all aligned then until end of step 5.
- Page 6 STEP6 STEP7 ③ ③ ② ① STEP6:Use bolt , allen key to attach legs to STEP7:Use philips head screwdriver and screw ① ③ ② ③ the armrest A/B, fasten bolts to secure. attach seat panel D to front rail G and backrest C, fasten bottom of secure.
- Page 7 STEP9 STEP8 STEP 9:Put the barkrest cushion E on top of the seat cushion F. STEP 8:Put the seat cushion F on the seat panel D. -11- -12-...
- Page 8 Assembly completed -13-...
