Emerson Hytork XL Series Safety Manual
Rack and pinion pneumatic actuators
Hide thumbs
Also See for Hytork XL Series:
- Installation, operation and maintenance manual (34 pages) ,
- Safety manual (22 pages)
Related Manuals for Emerson Hytork XL Series
Summary of Contents for Emerson Hytork XL Series

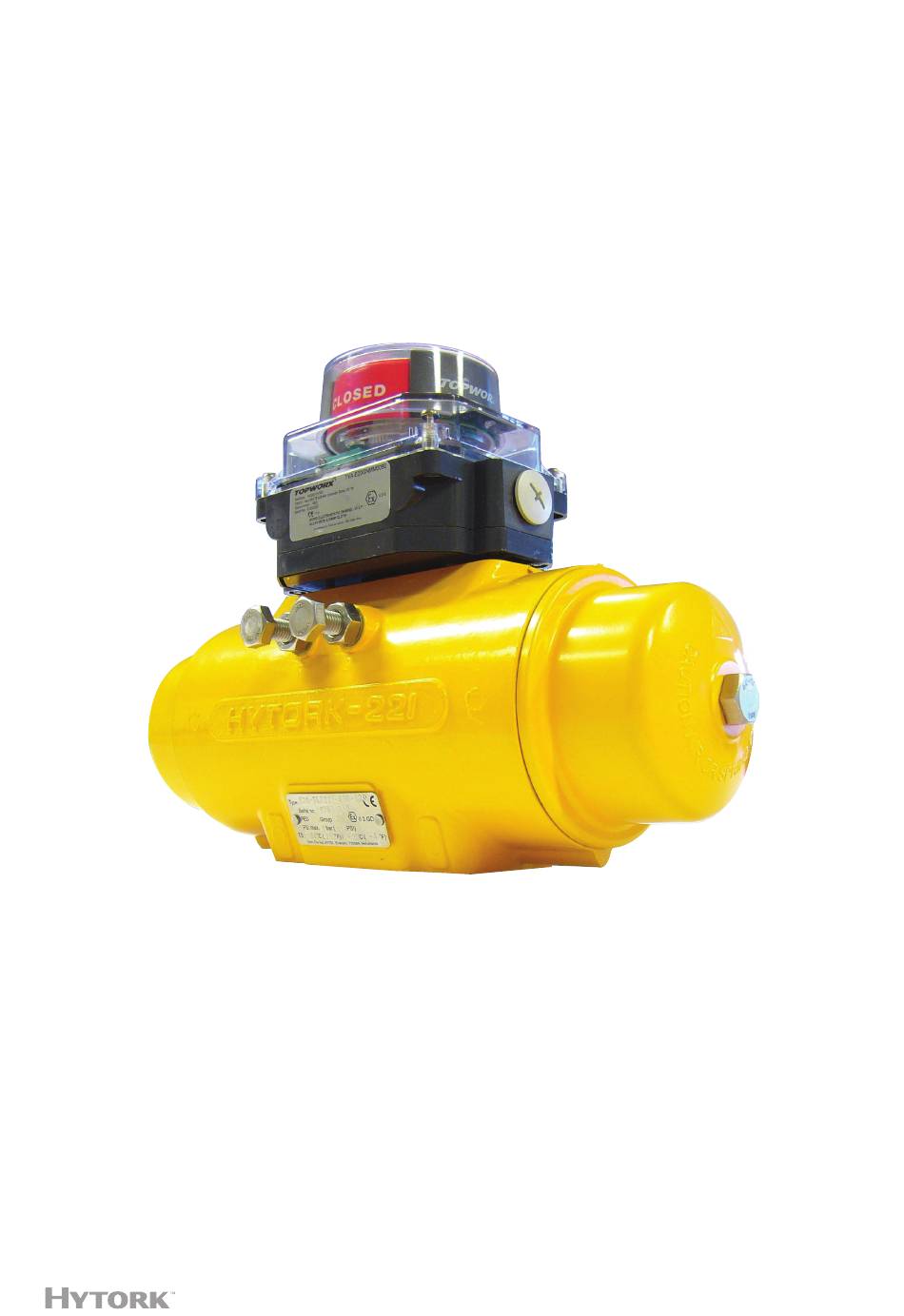

- Page 1 Safety Guide DOC.SG.HX.1 Rev. 1 November 2022 Hytork XL-Series Rack and Pinion Pneumatic Actuators...
- Page 2 Notes Safety Guide November 2022 DOC.SG.HX.1 Rev. 1 This page is intentionally left blank...
-
Page 3: Table Of Contents
Safety Guide Table of Contents DOC.SG.HX.1 Rev. 1 November 2022 Table of Contents Section 1: Safety Instructions ANSI 534.6 Safety Messages ..........1 Section 2: General Information General Application ...............2 Inspection and Maintenance Schedules ......... 2 Parts Ordering ...............3 Section 3: Hytork XL-Series Actuators Installation ................4 Operation ................5 Operating Media ............5... - Page 4 Notes Safety Guide November 2022 DOC.SG.HX.1 Rev. 1 This page is intentionally left blank...
-
Page 5: Section 1: Safety Instructions
Installation, Operation and Maintenance Manual, including all safety cautions and warnings. If you have any questions concerning installation, or use of this product, contact your Emerson sales office before proceeding. ANSI 534.6 Safety Messages WARNING Indicates a hazardous situation that, if not avoided, could result in death or serious injury. -
Page 6: Section 2: General Information
If you are not sure what these conditions or variables are, contact your Emerson sales office for assistance. Provide the product type, size, serial number and all other pertinent information that you have available. -
Page 7: Parts Ordering
WARNING Use only genuine replacement parts. Components that are not supplied by Emerson should not be used under any circumstances in any Hytork product. Use of components not supplied by Emerson may void your warranty, might adversely affect the performance of the product, and could cause personal injury and property damage. -
Page 8: Section 3: Hytork Xl-Series Actuators
Section 3: Hytork XL-Series Actuators These safety instructions are limited to Hytork XL-Series actuators which are operating using air or inert gas. If the application requires use of a flammable or hazardous gas, you must contact your Emerson sales office for assistance. Installation WARNING... -
Page 9: Operation
Section 3: Hytork XL-Series Actuators Safety Guide DOC.SG.HX.1 Rev. 1 November 2022 WARNING Stay away from moving parts to prevent serious injuries. When test cycling the actuator and valve assembly by applying pressure to the A or B port (2 or 4 port), be aware that there are moving parts like pinion top, actuator to valve coupling and the valve blade, ball or plug, etc. -
Page 10: Operating Temperature Range
-20 °C to + 80 °C (-4 °F to +176 °F) as indicated on the product label. Other medias and temperatures may be used but consult your local Emerson sales office for confirmation as to suitability. Hytork XL-Series Actuators... -
Page 11: Maintenance
Section 3: Hytork XL-Series Actuators Safety Guide DOC.SG.HX.1 Rev. 1 November 2022 Maintenance Before mounting or (dis)assembling the actuator, consult the relevant sections of the installation, operation and maintenance manual for more detailed maintenance information. WARNING Avoid personal injury or property damage from sudden release of process pressure or uncontrolled movement of parts. -
Page 12: Section 4: Actuator Accessories
Section 4: Actuator Accessories Safety Guide November 2022 DOC.SG.HX.1 Rev. 1 Section 4: Actuator Accessories The actuator may be equipped with components for control and/or feedback. Check the instructions of these components for installation, operation and maintenance instructions. Actuator Accessories... -
Page 13: Section 5: Instructions For Use In Explosive Areas
Section 5: Instructions for Use in Explosive Areas Safety Guide DOC.SG.HX.1 Rev. 1 November 2022 Section 5: Instructions for Use in (Potential) Explosive Areas Intended Use The Hytork XL-Series pneumatic actuators are intended for use in areas in which explosive atmospheres caused by mixtures of air and gases, vapours, mists or by air/dusts are likely to occur. - Page 14 Section 5: Instructions for Use in Explosive Areas Safety Guide November 2022 DOC.SG.HX.1 Rev. 1 In order to avoid increasing dust explosion risk, periodically clean dust deposits from all equipment. When equipment is installed in a hazardous area location (potentially explosive atmosphere), prevent sparks by proper tool selection and avoiding other types of impact energy.
-
Page 15: Maximum Temperatures
Section 5: Instructions for Use in Explosive Areas Safety Guide DOC.SG.HX.1 Rev. 1 November 2022 Maximum Temperatures WARNING The actuators surface temperature is dependent upon process operating conditions. If the actuator's surface temperature exceeds the acceptable temperature for the hazardous area classification, it can catch fire or in worst case can explode causing personal injury and property damage. -
Page 16: Appendix A: Eu Declaration Of Conformity
ROC no 9010 Rev. 0 Legal representative entity for the European Union: Emerson Automation Solutions, Actuation Technologies Limited Patrijsweg 140, 2289 EZ Rijswijk, Netherlands We hereby declare, that the products specified below meet the basic health and safety requirements of the below mentioned European Directives. -
Page 17: Ukca Declaration Of Conformity
VCCAQ-17151-EN Rev. 0 Legal representative entity for the GB Market: Emerson Automation Solutions, Actuation Technologies Limited 6 Bracken Hill, Peterlee County Durham, SR8 2LS, United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer. The products specified below meet the basic health and safety requirements of the below mentioned UK legislations. - Page 18 VCSGD-15727-EN ©2022 Emerson. All rights reserved. Wuqing Development Area Tianjin 301700 Holland Fasor 6 The Emerson logo is a trademark and service mark of P. R. China Székesfehérvár 8000 Emerson Electric Co. Hytork is a mark of one of the Emerson...
